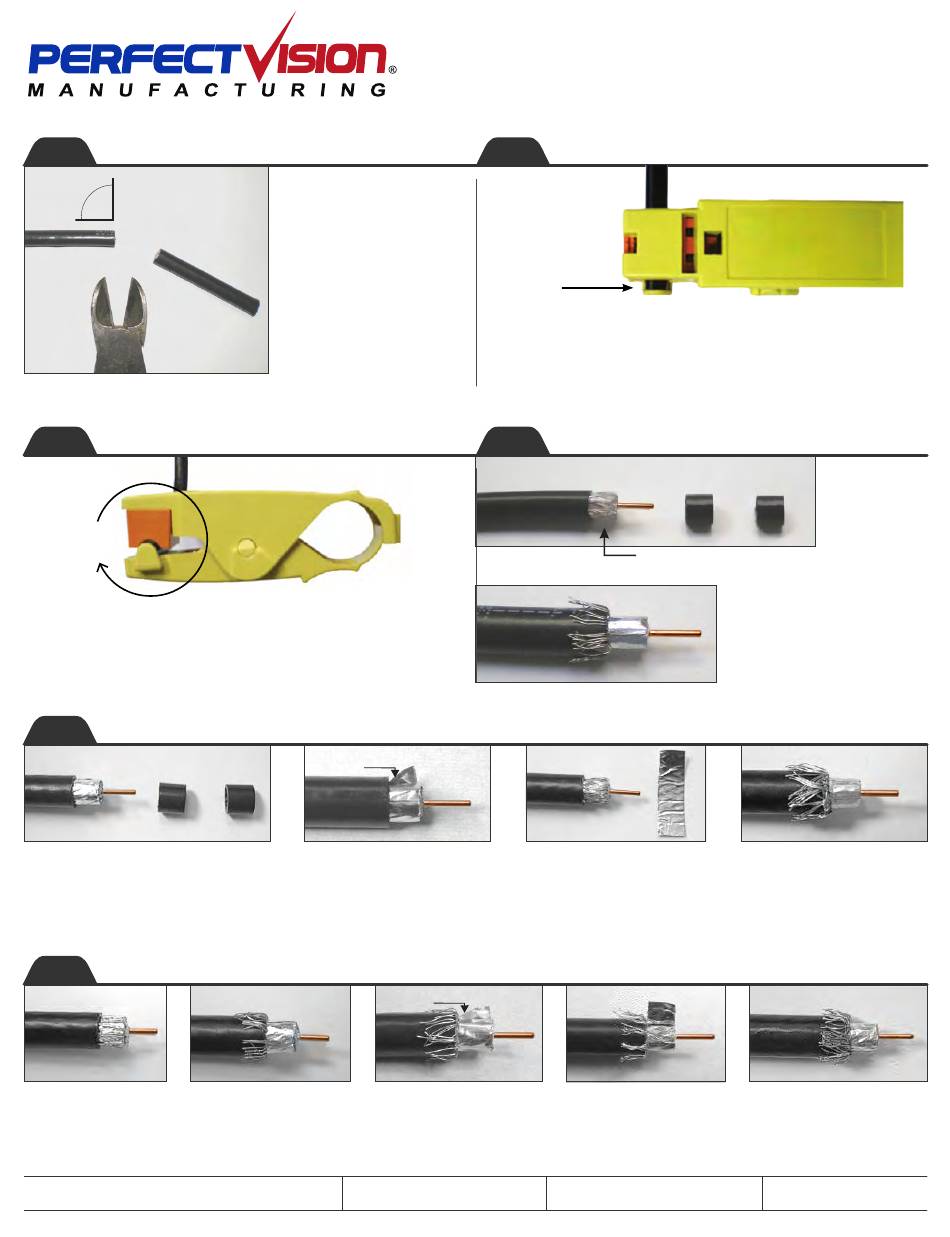

PerfectVision PV5U Installation Manual

1
90°
3
5 - 6
ROTATIONS
Turn the prep tool five or six full and continuous revolutions
around the coax. Do not reverse the direction of the turn, it
is unnecessary and can damage the braid.
4
TRI-SHIELD
0.25"
Cutoffs should be 1/4" and
5/16" long.
4
QUAD-SHIELD
Fold back the first
layer of braid wires.
PV5U/PV5USLP/PV5USLPK/PV6USLP/PV6USLPK-Install_12162016_ALB
Cut the end of the
cable cleanly with
sharp cutters at a
90° angle.
Nick Foil
0.3125"
Nick the foil close to the
PVC jacket and begin
peeling the foil.
Nick Foil
Nick outer foil as shown.
U.S. Toll Free 1.866.470.0887
PV5U / PV5USLP / PV5USLPK /
INSTALL PROCEDURES APPLY TO ALL LISTED CONNECTORS
2
Coax against
the stop
Insert the coax into the appropriate cable prep tool so
the end of the coax is flush against the stop.
4 DUAL SHIELD
Remove the foil layer.
Peel off the foil layer.
International +1.501.955.0032
©2016 PerfectVision Manufacturing
PV6USLP / PV6USLPK
Installation Guide
0.25" 0.3125"
Do not nick or cut through these wires
It is important to make sure
ALL the braid wires are
folded back neatly.
Fold ALL braid wires
back neatly.
Fold ALL braid wires
back neatly.
www.perfect-vision.com
The two cutoff
sections should
be 1/4" and
5/16" long.
