ReelCraft H37000 Series Operating Instructions

Operating Instructions
Series H37000 Hose Reels
CH37112 L CH37118 L

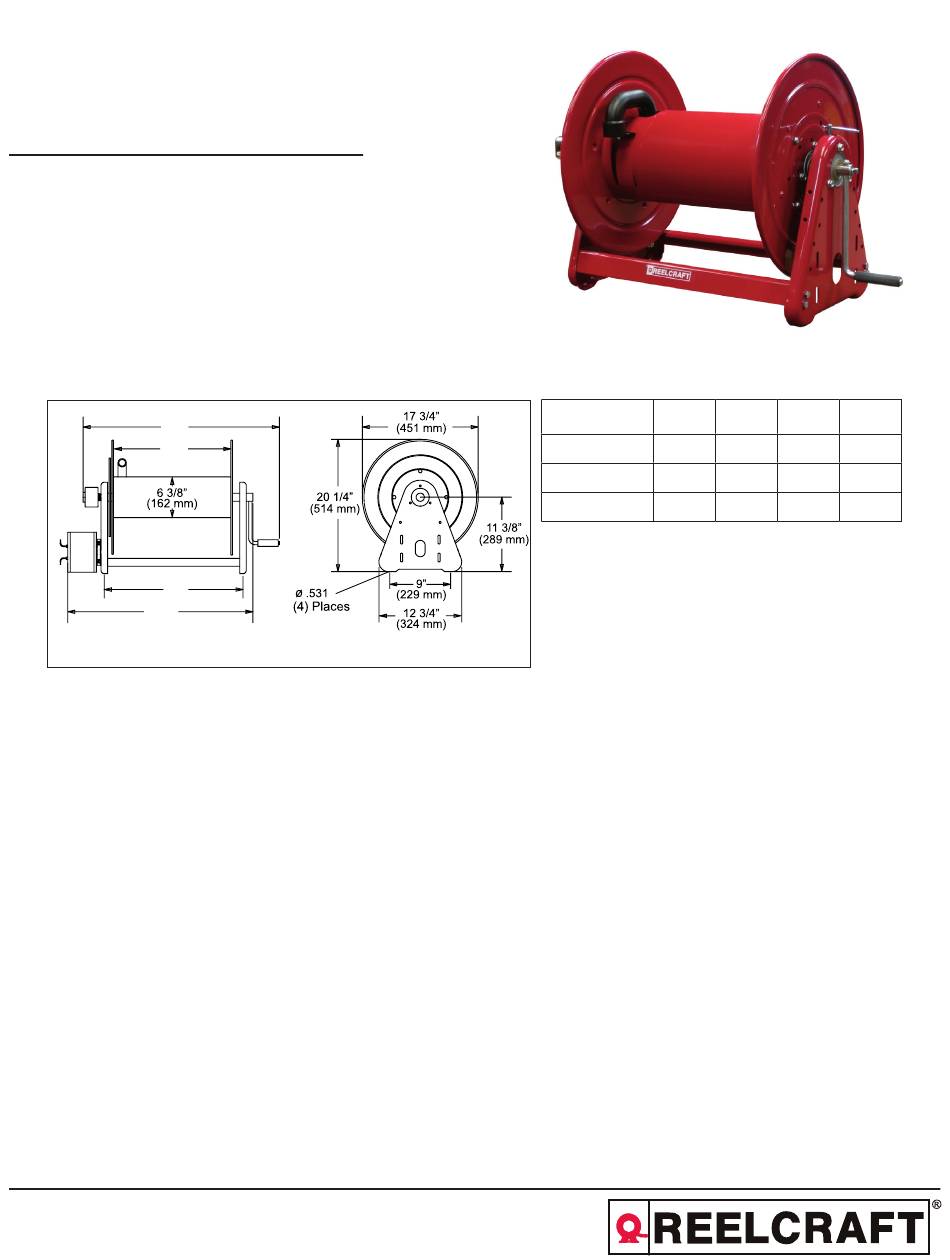

Dimensional Data
A
B
D
C
Safety Precautions
Personal injury and/or equipment
damage may result if proper safety
precautions are not observed.
• Ensure that the reel has been properly
installed before connecting supply line
(see installation instructions).
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line
ensure that supply line pressure does
not exceed maximum rated working
pressure of reel.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
EH37118 L12D
• Do not play pranks on other personnel.
Even low pressure is very dangerous
and can cause irrepairable damage or
death.
• Do not wear loose fitting clothing while
operating reel.
• Be aware of other personnel in work
area.
• Be aware of other machinery in work
area.
Part # A
CH37112 L 28 1/4"
CH37118 L
31 3/4"
EH37118 L12D
-----
• If a leak occurs in the hose or reel,
remove supply line pressure
immediately.
• If the reel is power driven check for
loose, frayed, and/or broken wires before
operating.
• Treat and respect a hose reel as any
other piece of machinery, observing all
common safety practices.
B C D
12" ----- 15 3/4"
18" ----- 21 3/4"
18" 31" 21 3/4"
Form# 1256-1030 Rev: 11/2023
