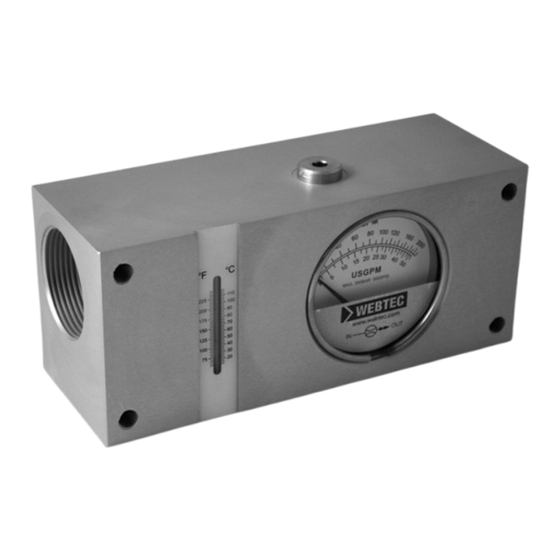

- Page 1 FI1500 Flow Indicators user manual Bedienungsanleitung FI1500 Durchflussanzeiger Manuel d’utilisation des FI1500 Indicateurs de débit Manual de usuario de los indicadores de caudal FI1500 www.webtec.com...
- Page 2 Before first operating the equipment read the whole of these instructions. Safety may be impaired if they are not followed. Webtec have been designing and manufacturing flow meters and hydraulics components for over 50 years. We operate within a Quality Management System that complies with the requirements of BS EN ISO 9001:2000 which is externally audited and certificated each year.
-
Page 3: Basic Operation
63 mm (2 1/2”) scale displayed in lpm and USgpm. The FI1500 flow indicators should not be installed in circuits where the flow is reversed. See our RFI series... -
Page 4: Specification
Specification Ambient temperature: -10 to 50°C (14 to 122°F) Fluid temperature: Continuous: 20 to 80°C (65 - 176*F) Intermittent use (less than 10 minutes) >80 to 110°C (>176 - 230°F) Humidity: 10 - 90 % RH Fluid: see model configuration Seals: FKM as standard (EPDM available on request) Accuracy: 4% of full scale (calibrated at 28 cSt) Pressure: 350 bar (5,000 psi) -
Page 5: Installation Guidance
Care should be taken to ensure that the flow block is installed in a position that is not subjected to excessive pulsation as this can cause incorrect readings. Connections can be by flexible hoses or steel pipes. For heavy-duty applications, for example installation close to a piston pump, consult the Webtec Products sales office. -
Page 6: Model Configuration
Model configuration FI1500 A B O T FI1500 product type Flow range Body material Main ports threads* Fluid type and units** Temperature option 200 0 - 200 lpm 0 - 50 USgpm ‘A’ = Aluminium ‘B’ = 1-1/2” BSPP ‘O’ = Oil in both Litres ‘T’... - Page 7 FI1500 - 400 BSW FI1500 - 400 ASO FI1500 - 200 BSWT FI1500 - 200 ASOT FI1500 - 400 BSWT Webtec are always happy to hear from customers who have unique requirements please contact Webtec or your local distributor to discuss your requirements...
-
Page 8: Technical Information
Calibration The FI1500 is calibrated at a mean viscosity of 28 cSt using ISO32 hydraulic mineral oil to ISO11158 category HM. Recommended period between calibrations is 12 months. Maximum period between calibrations is 36 months. Unit accuracy may be affected by operating cycle, fluid condition or extended periods between recalibrations. -
Page 9: Installation
Installation Dimensions in Millimetres (Inches) 4 Holes 3/8” UNC x 14 (0.55) deep 9.6 (0.4) typ 43 (1.7) 199.2 (7.8) 74 (2.9) - Page 10 Manufacturer’s Limited Warranty Webtec Products Ltd. warrants to the original purchaser, for the period of one year from the date of purchase, that the product is free from defect in materials and workmanship. This warranty does not cover any part of the product that has been damaged due to abuse or operation beyond the specifications stated by Webtec Products Ltd.
- Page 11 Webtec se reserva el derecho de realizar mejoras y cambios a las especificaciones sin previo aviso. Designed and produced by Webtec - Entwickelt und hergestellt von Webtec - Conçu et produit par Webtec - Diseñado y producido por Webtec Certificate No.8242...
