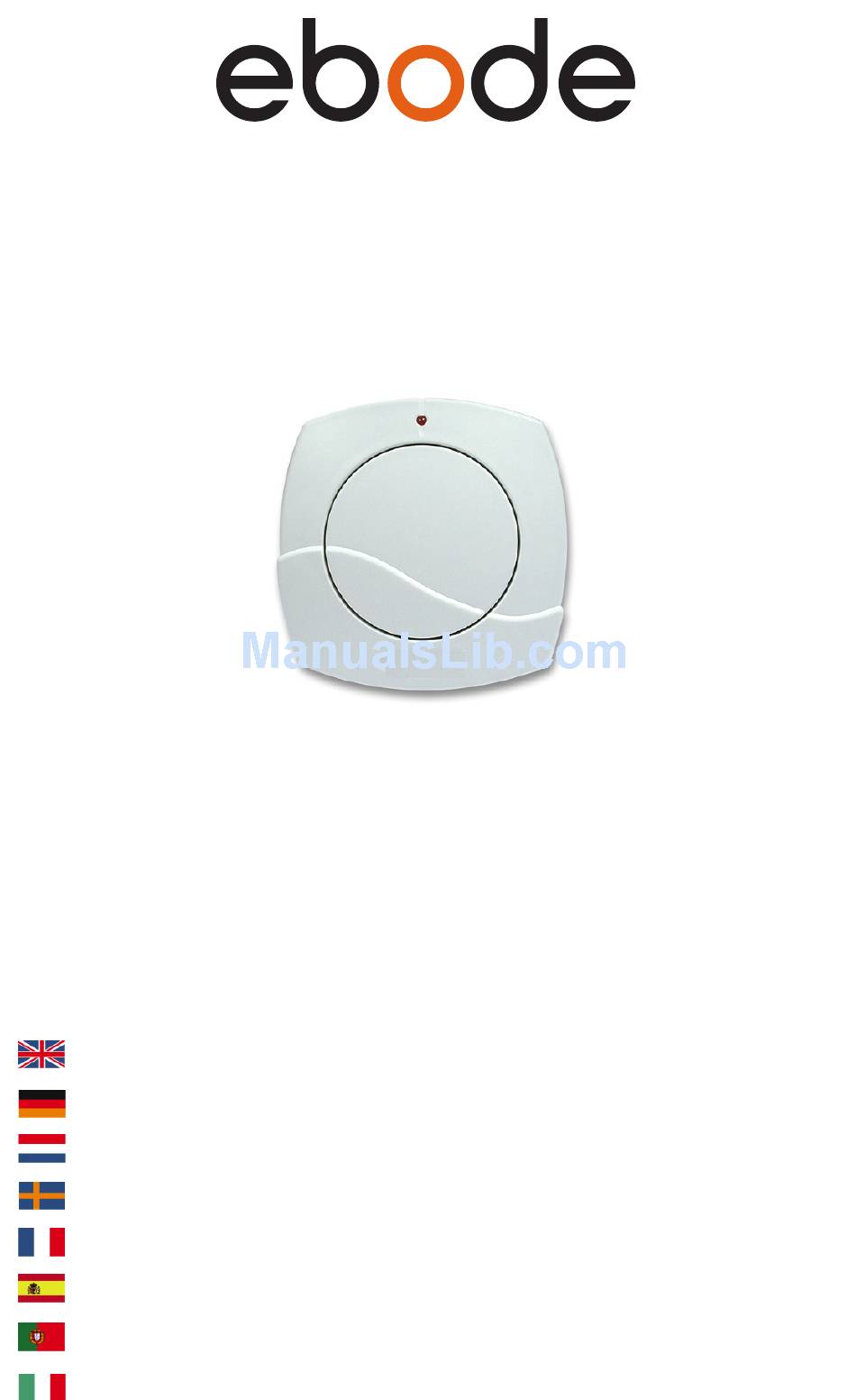

  • Page 1 IMRF Transmitter Wireless Pulse Wall Switch User guide Bedienungsanleitung Gebruiksaanwijzing Användermanual Guide utilisateur Guía del usario Manual do utilizador Manuale per l’utente...
  • Page 2 Transmitter - Wireless Pulse Wall Switch Ref : IMRF General Security Note For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues.
  • Page 3 Transmitter - Wireless Pulse Wall Switch Ref : IMRF Belangrijk: Het product moet worden gebruikt volgens de aanwijzingen in deze handleiding en is niet geschikt voor andere doeleinden. Voorkom de volgende situaties: Overmatige mechanische slijtage en schade, hoge tempera- turen, sterke vibraties en hoge luchtvochtigheid. Lees voor een zorgeloos en veilig gebruik van dit product de waarschuwingen verderop in deze handleiding en de veiligheidsinformatie zorgvuldig door en volg deze op.
  • Page 4 Transmitter - Wireless Pulse Wall Switch Ref : IMRF ¡No abrir! Riesgo de descarga eléctrica. Los voltajes que hay dentro de este equipo son peligrosos para la vida. Dentro del dispositivo no hay piezas que el usuario pueda reparar. Encargue todo servicio al personal de servicio calificado. Importante: El producto debe usarse según las instrucciones de este manual, y no es adecuado para otros fines.
  • Page 5 Transmitter - Wireless Pulse Wall Switch Ref : IMRF Notes July 2009 page 5 IMRF...
  • Page 6: General Information

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF X10 address The X10 address consists of a HOUSE CODE and UNIT CODE. This unique address makes it possible to control one or more receivers (with the same address) with commands from the IMRF switch. General Information: 1.
  • Page 7 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. While the Led is yellow, press and hold the button until the green led has blinked 3 times saying the Unit code is “3”, Unit Code “3” means 3 green blinks, for “4” this would mean 4 blinks etc. When releasing the button the yellow led will blink 3 times.
  • Page 8: Allgemeine Informationen

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF X10-Adresse Die X10-Adresse besteht aus einem HAUSCODE und einem GERÄ- TECODE. Diese eindeutige Adresse ermöglicht einen oder mehrere Empfänger (mit der gleichen Adresse) mit Befehlen vom IMRF- Schalter zu steuern. Allgemeine Informationen: 1.
  • Page 9 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. Während die gelbe LED leuchtet, halten Sie die Taste gedrückt, bis die grüne LED 3-mal aufblinkt. Das bedeutet, dass der Gerätecode „3» eingestellt ist. Gerätecode „3» entspricht dreimaligem Aufblinken der grünen LED, für Code „4»...
  • Page 10 Transmitter - Wireless Pulse Wall Switch Ref : IMRF Instellen van het adres. Een X10 adres bestaat uit een HUIS CODE en een UNIT CODE. Dit unieke adres maakt het mogelijk om een of meerdere ontvangers (wanneer deze hetzelfde adres hebben) te schakelen met de IMRF. Gebruikers informatie: Algemene informatie 1.
  • Page 11 Transmitter - Wireless Pulse Wall Switch Ref : IMRF Laat de toets vervolgens los, waarna de LED weer geel zal kleuren. N.B. Drukt u niet binnen 5 seconden na het zichtbaar worden van de oranje LED op de knop, dan zal de module de programmeer mode verlaten en dient u weer bij punt 1.
  • Page 12 Transmitter - Wireless Pulse Wall Switch Ref : IMRF X10 adress X10 adressen består av en Huskod och en Enhetskod. Denna unika adress gör det möjligt att kontrollera en eller flera mottagare (med samma adress) med kommandon från din IMRF kontroll.
  • Page 13 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. Då LED lyser i gult, tryck och håll nere knappen tills det att det gröna ljuset har blinkat 3 gånger för Enhetskod “3”. Enhetskod “3” innebär 3 gröna blinkningar, för “4” skulle det alltså vara 4 gröna blinkningar, etc.
  • Page 14 Transmitter - Wireless Pulse Wall Switch Ref : IMRF REGLER la voie, si nécessaire. La voie est constituée d’un code MAISON et d’un code UNITE. La voie unique permet à un ou plusieurs récepteurs (réglés sur la même voie) de reconnaître les ordres en provenance de la commande IMRF. INFOS 1.
  • Page 15 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3.Avant l’extinction du témoin JAUNE, appuyer de nouveau et main- tenir enfoncée la touche de l’inter jusqu’à obtention du code UNITE “3” : 3 clignotements VERT pour 3. Relâcher la touche de l’inter, la LED clignote 3 fois en JAUNE confirmant la mémorisation de la voie B3 et la sortie du mode programmation.
  • Page 16: Información General

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF Dirección X10 La dirección X10 consiste en un Código de Casa y un Código de Unidad. Esta dirección exclusiva permite controlar uno o más receptores (con la misma dirección) con las órdenes del interruptor IMRF. Información general 1.
  • Page 17 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. Mientras el LED esté amarillo, presione y mantenga el botón hasta que el LED verde haya parpadeado 3 veces, indicando que el código de unidad es “3”, el código de unidad 3 implica 3 parpadeos verdes, para “4”...
  • Page 18: Informação Geral

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF Endereço X10 O endereço X10 consiste num CÓDIGO DE CASA e CÓDIGO DE UNIDADE. Este endereço único possibilita o controlo de um ou mais receptores (com o mesmo endereço) com comandos do interruptor IMRF. General Information: Informação geral 1.
  • Page 19 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. Enquanto o LED está amarelo, mantenha pressionado o botão até o led verde piscar 3 vezes indicando assim o código de dispositivo “3”, código de dispositivo “3” significa que o led verde tem de piscar 3 vezes.
  • Page 20: Informazioni Generali

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF Indirizzo X10 L’indirizzo X10 è costituito da un House Code e uno Unit Code. Questo indirizzo unico consente di comandare uno o più ricevitori (impostati sullo stesso indirizzo) mediante comandi provenienti dall’in- terruttore IMRF.
  • Page 21 Transmitter - Wireless Pulse Wall Switch Ref : IMRF 3. Mentre il LED è Giallo, mantenere premuto il tasto finché il LED lampeggia 3 volte Verde, confermando lo Unit Code “3”. Unit Code “3” corrisponde a 3 lampeggi Verdi, “4” corrisponde a 4 lampeggi etc. Rilasciando il tasto il LED lampeggerà...
  • Page 22 Transmitter - Wireless Pulse Wall Switch Ref : IMRF CE DECLARATION OF CONFORMITY UK - We, BMB Electronics BV, Kortakker 10 – 4264 AE Veen – The Netherlands, herewith declare that the following designated product IMRF, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 23: Product Description

    Transmitter - Wireless Pulse Wall Switch Ref : IMRF Also available from ebode electronics: On-Wall Modules Product Description 2-position RF wall switch, ideal for retro fit installations to e.g. control blinds, shutter, home cinema screens but also lighting or appliances. IMRF Single position RF wall switch, ideal for retro fit installations to e.g.
