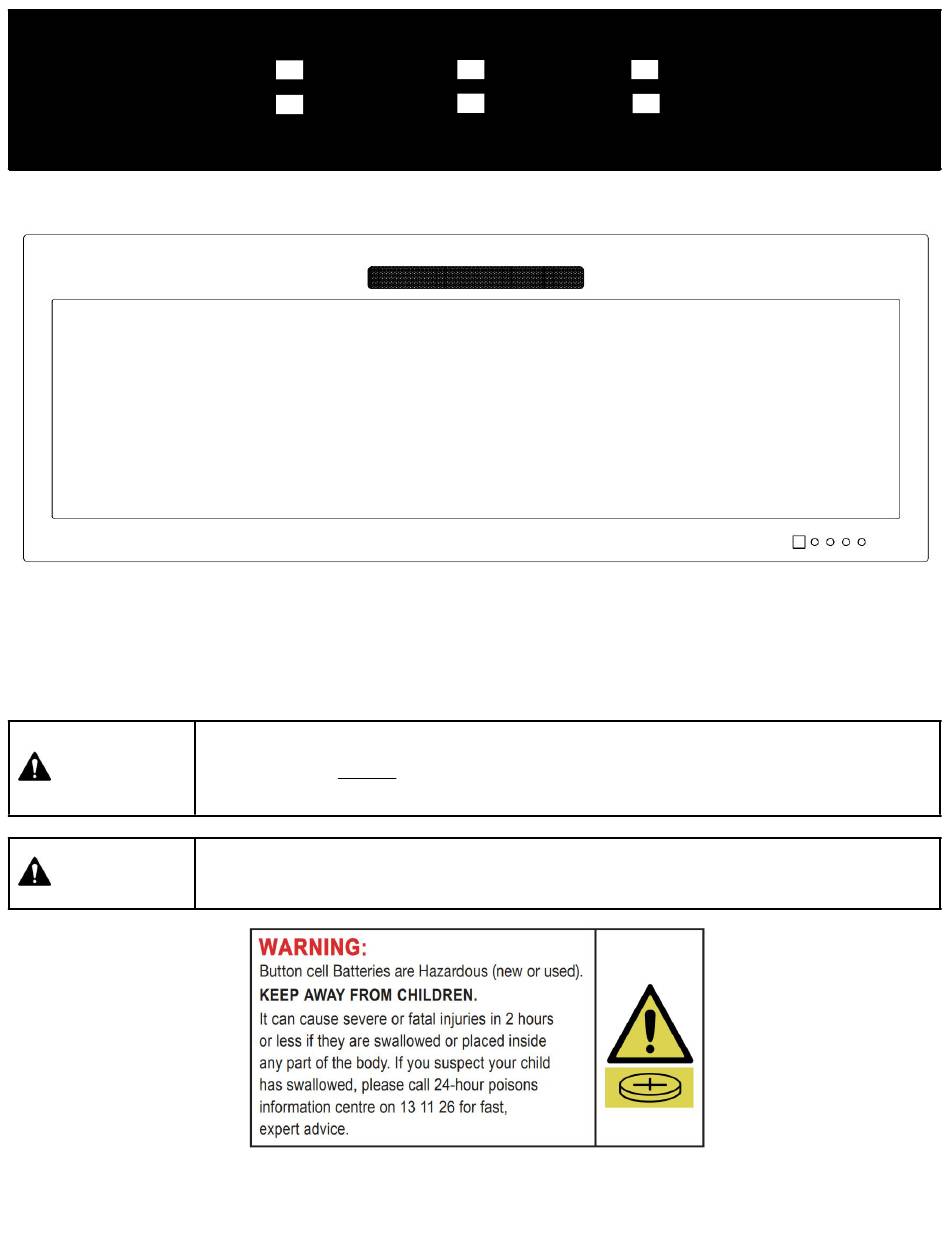

ROCCO WALL MOUNTED & WALL RECESSED FIREPLACE
Model# :
EF-ROCC42
EF-ROCC50
EF-ROCC60
EF-ROCC72
EF-ROCC84
EF-ROCC100
OWNER'S MANUAL
42"/50"/60"/72"/84"/100" Wall Mounted / Built-in
Electric Fireplace
AC 220-240V 50Hz 1400-1600W
Read and understand this entire owner's manual, including all safety
WARNING
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROCCO and is the answer not in the manual?

Questions and answers

Related Manuals for Heartland ROCCO

Summary of Contents for Heartland ROCCO

  • Page 1 ROCCO WALL MOUNTED & WALL RECESSED FIREPLACE Model# : EF-ROCC42 EF-ROCC50 EF-ROCC60 EF-ROCC72 EF-ROCC84 EF-ROCC100 OWNER’S MANUAL 42"/50"/60"/72"/84"/100" Wall Mounted / Built-in Electric Fireplace AC 220-240V 50Hz 1400-1600W Read and understand this entire owner’s manual, including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this heater.  This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use ...

  • Page 3: Parts And Hardware

    Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for wall-hanging or recessing use.

  • Page 4: Installation And Assembly

    EF-ROCC42 EF-ROCC50 EF-ROCC60 EF-ROCC72 EF-ROCC84 EF-ROCC100 Installation and Assembly Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 5 Wall Recessed Pre-installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance. A. Select a location that is not prone to moisture and is located at least 36” (94.1cm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 6 Front Glass Panel Removal A. Take off the screws on both side.(Fig. 1-1 ) B. Carefully lift the front trim up and away from the appliance (Fig. 1-2 ). Place it face down on a soft, non-abrasive surface. C. Reverse these steps to install the front glass. Fig.
  • Page 7 Wall Recessed Installation A.Take off the screws (1 per side) from the sides of the fireplace. Set the screws aside (Fig. 2-1 ) B.Remove the two brackets and set them aside.(Fig. 2-2 ) Fig. 2-1 Fig. 2-2 C.Power the fireplace by plug-into the wall receptacle. D.

  • Page 8: Wall Mounted Installation

    Fig. 2-4 Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A.Select a location that is not prone to moisture and is located at least 36" (914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 9 Fig 3 EF-ROCC42-84 Wall Bracket Illustrated EF-ROCC100 Wall Bracket Illustrated...

  • Page 10: Hard Wiring Installation

    “L” Shape Bracket Installation A.Remove the silver screw at the bottom of the appliance. (Fig 4-1). Set the screw aside. Fig 4-1 Fig 4-2 B.Using the screw previously removed, attached the L-bracket (supplied) to the bottom of the fireplace box.(Fig 4-2) Fig 4-3 C.
  • Page 11 Fig 5-1 Fig 5-2 Remove the cover plate from the right side Remove the wire connectors from the power cord. The power cord may be discarded. Fig 5-2 bottom of the appliance by removing the three screws, as shown above. Fig 5-1 Take the new cover plate, supplied in the hardware bag.

  • Page 12: Operation

    Fig 6-1. (Log-set) Fig 6-2. (Plastic Strip) Fig 6-3. (Clear Crystals) Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 220-240 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 13 Methods of Operation This electric fireplace can be operated by the TOUCH CONTROL PANEL, located on the bottom right side glass panel of fireplace, or by the battery-powered REMOTE CONTROL. Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and heed all warnings.
  • Page 14 Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again. Flame effect turns off. Unit POWER remote control.

  • Page 15: Care And Maintenance

    Flame speed button:Controls the speed 1. Press once. Flame speed gets of the flame.There are 3 flame speed changing. settings: 01 (slowest), 02 (Medium), 03 2. Press again until desired setting is (fastest). reached. Display shows the setting. The Default setting is 03 (fastest speed) SPEED When the heater is first turned on, a slight odor may be present.
  • Page 16 Metal:  Buff using a soft cloth, slightly dampened with a citrus oil-based product.  DO NOT use brass polish or household cleaners as these products will damage the metal trim. Glass:  Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper towel or lint-free cloth.
  • Page 17 WEEE： Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
