BSVOL 240 A / BSVOL 241 A
TH / EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSVOL 090 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beko BSVOL 090

Summary of Contents for Beko BSVOL 090

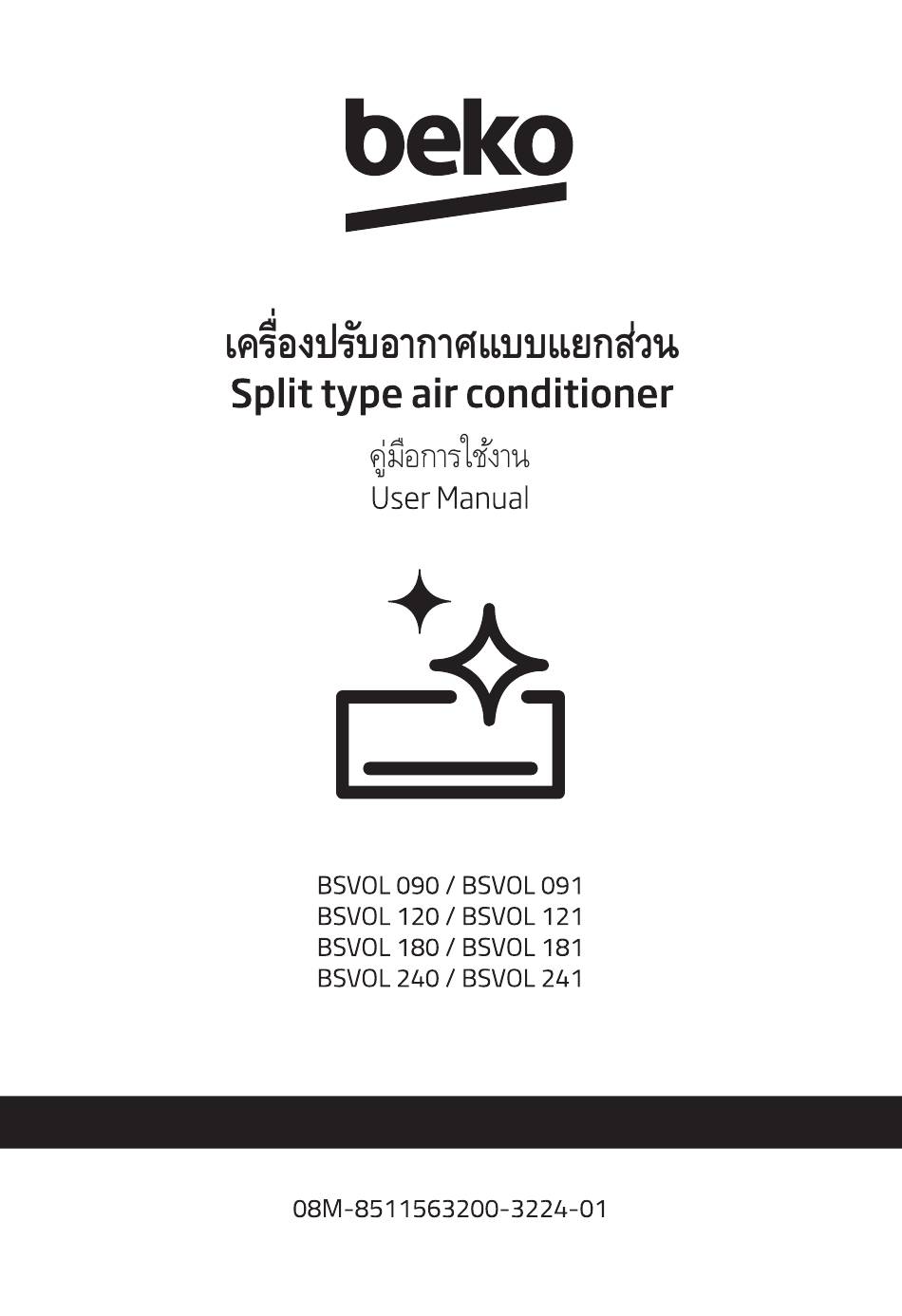

  • Page 1 BSVOL 240 A / BSVOL 241 A TH / EN...
  • Page 3 16.หากเชื ่ อ มต อ อุ ป กรณ เ ข า กั บ ระบบการเดิ น สายไฟแบบติ ด ตั ้ ง ถาวร ำ ค น แ น ะ ด ำ น า  ว ค ม า ล ป ด อ ย...
  • Page 8 (เฉพาะรุ  น ที ่ ม ี ฟ  ง ก ช ั น ยู ว ี ซ ี เ ท า นั ้ น ) Lorem ipsum...
  • Page 11 Ø Ø Ø Ø Ø Ø Ø Ø Ø Ø Ø Ø ×4...
  • Page 14 COOL...
  • Page 17 1. To guarantee the unit work normally, please read the manual carefully before installation, and try to install strictly according to this manual. 2. Do not let air enter the refrigeration system or discharge refrigerant when moving the air conditioner. 3.
  • Page 18 12. Warning: Risk of electric shock can cause injury or death: Disconnect all remote electric power supplies before servicing. 13. The maximum length of the connecting pipe between the indoor unit and outdoor unit should be less than 5 meters. It will affect the efficiency of the air conditioner if the distance longer than that length 14.
  • Page 19 17. If the appliance is fixed wiring, the appliance must be fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III conditions, and these means must be incorporated in the fixed wiring in accordance with the wiring rules.
  • Page 20 1. When charging refrigerant into the system, make sure to charge in liquid state,if therefrigerant of the appliance is R32. Otherwise, chemical composition of refrigerant (R32) inside the system may change and thus affect performance of the air conditioner. 2. According to the character of refrigerant (R32,the value of GWP is 675), the pressure of the tube is very high, so be sure to be careful when you install and repair the appliance.
  • Page 21 Note: Back-light is an optional function. 3. Auto Restart Presetting The air conditioner has an Auto-Restart function. This appliance is made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.
  • Page 23 Precautions for using R32 refrigerant The basic installation work procedures are the same as the conventional refrigerant(R22 or R410A). However, pay attention to the following points: 1.Transport of equipment containing flammable refrigerants Compliance with the transport regulations 2.Marking of equipment using signs Compliance with local regulations 3.Disposal of equipment using flammable refrigerants Compliance with national regulations...
  • Page 24 • The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations. 6.lnformation on servicing 6-1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised.
  • Page 25 6-6 No ignition sources • No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion •...
  • Page 26 • The following checks shall be applied to installations using flammable refrigerants: –The charge size is in accordance with the room size within which the refrigerant containing parts are installed; –The ventilation machinery and outlets are operating adequately and are not obstructed; –If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;...
  • Page 27 –That there no live electrical components and wiring are exposed while charging, recovering or purging the system; –That there is continuity of earth bonding 7. Repairs to sealed components • During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc.
  • Page 28 • Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. • Replace components only with parts specified by the manufacturer.
  • Page 29 –Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. –If a leak is suspected, all naked flames shall be removed/ extinguished.

  • Page 30: Charging Procedures

    • This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. • This operation is absolutely vital if brazing operations on the pipe-work are to take place.
  • Page 31 • Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation.
  • Page 32 15.Labelling • Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. • The label shall be dated and signed. • Ensure that there are labels on the equipment stating the equipment contain flammable refrigerant. 16.Recovery •...
  • Page 33 • Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. • Consult manufacturer if in doubt. •...
  • Page 34 • The appliance shall be stored in a room without continu ously operating ignition sources(for example, open flames, an operating gas appliance or an operating electric heater) • Do not pierce or bum Be aware that refrigerants may not contain an odor. •...
  • Page 35 • The maximum refrigerant charge amount is 2.5 kg.The specific refrigerant charge is based on the nameplate of the outdoor unit. • Mechanical connectors used indoors shall comply with ISO 14903. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated.
  • Page 36 Explanation of symbols displayed on the indoor unit or outdoor unit.
  • Page 37 Distance from ceiling should be Distance from wall over 200 mm should be over 50mm Distance from Distance from the obstacle the wall should should be over 3000mm. be over 50mm Distance from floor should be over 2500mm. Distance from the obstacle should be over 500mm.
  • Page 38 Location for Installing Indoor Unit 1. Where there is no obstacle near the air outlet andair can be easily blown to every corner. 2. Where piping and wall hole can be easily arranged. 3. Keep the required space from the unit to the ceiling and wall according to the installation diagram on previous page.
  • Page 39 Location for Installing Outdoor Unit 1. Where it is convenient to install and well ventilated. 2. Avoid installing it where flammable gas could leak. 3. Keep the required distance apart from the wall. The pipe length between indoor and outdoor unit should be not more than 5 meters in factory default status, but it can go up to maximum 15 meters with additional refrigerant charge.
  • Page 40 1. Installing the Mounting Plate • Decide an installing location for the mounting plate according to the indoor unit location and pipe direction. • Keep the mounting plate horizontally with a horizontal ruler or level. • Drill holes of 32mm in depth on the wall for fixing the plate. •...
  • Page 41 Wall hole sleeve 2. Drill a Hole for Pipe ( hard polythene • Decide the position of hole tube prepared by for pipe according to the user) location of mounting plate. • Drill a hole on the wall about 50mm. The hole should tilt a littledownward toward outside.
  • Page 42 • After connecting pipe as required, install the drain hose. Then connect the power cords. After connecting, wrap the pipes, cords and drain hose together with thermal insulation materials. • Pipes Thermal Insulation: a. Place the drain hose under the pipes. b.

  • Page 43: Piping Connection

    Piping Connection: a.Before unscrewing the big and the small sealing caps, press the small sealing cap with the finger until the exhaust noise stops, and then loosen the finger. b.Connect indoor unit pipes with two wrenches. Pay special attention to the allowed torque as shown below to prevent the pipes, connectorsand flare nuts from being deformed and damaged.

  • Page 44: Note: For Some Models, It Is Necessary To Remove The Cabinet To Connect To The Indoor Unit Terminal

    For Inverter appliance Note: The unit of 12K#²,18K# and 36K# is bigger than the unit of 12K,18K and 36K. Note: Piping connection should be conducted on outdoor side ! For ON-OFF appliance Note: The unit of 12K#,18K#,24K#,36K# is bigger than the unit of 12K,18K,24K,36K.
  • Page 45 • Outdoor Unit 1) Remove the access door from the unit by loosening the screw. Connect the wires to the terminals on the control board individually as follows. 2) Secure the power cord onto the control board with cable clamp. 3) Reinstall the access door to the original position with the screw.
  • Page 46 Caution: 1. Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, refer to the circuit diagram posted on the inside of the access door. 2. Comfirm that the cable thickness is as specified in the power source specification.
  • Page 47 Attention: The plug must be accessible even after the installation of the appliance in case there is a need to disconnect it. If not possible, connect appliance to a double-pole switching device with contact separation of at least 3 mm placed in an accessible position even after installation.
  • Page 48 1. Install Drain Port and Drain Hose (for heat-pump model only) The condensate drains from the outdoor unit when the unit operates in heating mode. In order not to disturb your neighbor and protect the environment, install a drain port and a drain hose to direct the condensate water.
  • Page 49 The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the compressor. After connecting the indoor and outdoor units, release air and moisture from the refrigerant cycle using a vacuum pump, as shown below. Note: To protect the environment, be sure not to discharge the refrigerant to the air directly.
  • Page 50 How to Purge Air Tubes: (1) Unscrew and remove caps from 2 and 3-way valves. (2) Unscrew and remove cap from service valve. (3) Connect vacuum pump flexible hose to the service valve. (4) Start vacuum pump for 10-15 minutes until reaching a vacuum of 100Pa absolutes.
  • Page 51 Air filter maintenance Operating condition Operating temperature for Inverter appliance...
  • Page 52 NOTE: *Optimum performance will be achieved within these operating temperature. If air conditioner is used outside of the above conditions, the protective device may trip and stop the appliance. *Normally,the outdoor max temperature is 43℃,but some models will be achieved 46℃,48℃,or 50℃.For Tropical (T3) Climate condition models, the outdoor max temperature is 55 ℃.
  • Page 53 NOTE: *Normally,the outdoor max temperature is 43℃,but some models will be achieved 46℃,48℃,or 50℃.For Tropical (T3) Climate condition models, the outdoor max temperature is 55 ℃. The temperature of some products is allowed beyond the range. In specific situation, please consult the merchant.
  • Page 54 Features of HEATING mode Preheat At the beginning of the HEATING operation, the airflow from the indoor unit is discharged 2-5 minutes later. Defrost In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency.This procedure usually lasts 2-10 minutes. During defrosting, fans stop operation. After defrosting completes, it returns to HEATING mode automatically.
  • Page 58 BSVOL 240 A BSVOL 241 A 9000 12000 18000 22000 2600 5300 6400 3.38 3.17 3.14 1672 2038 890 300 220 795 540 273...
