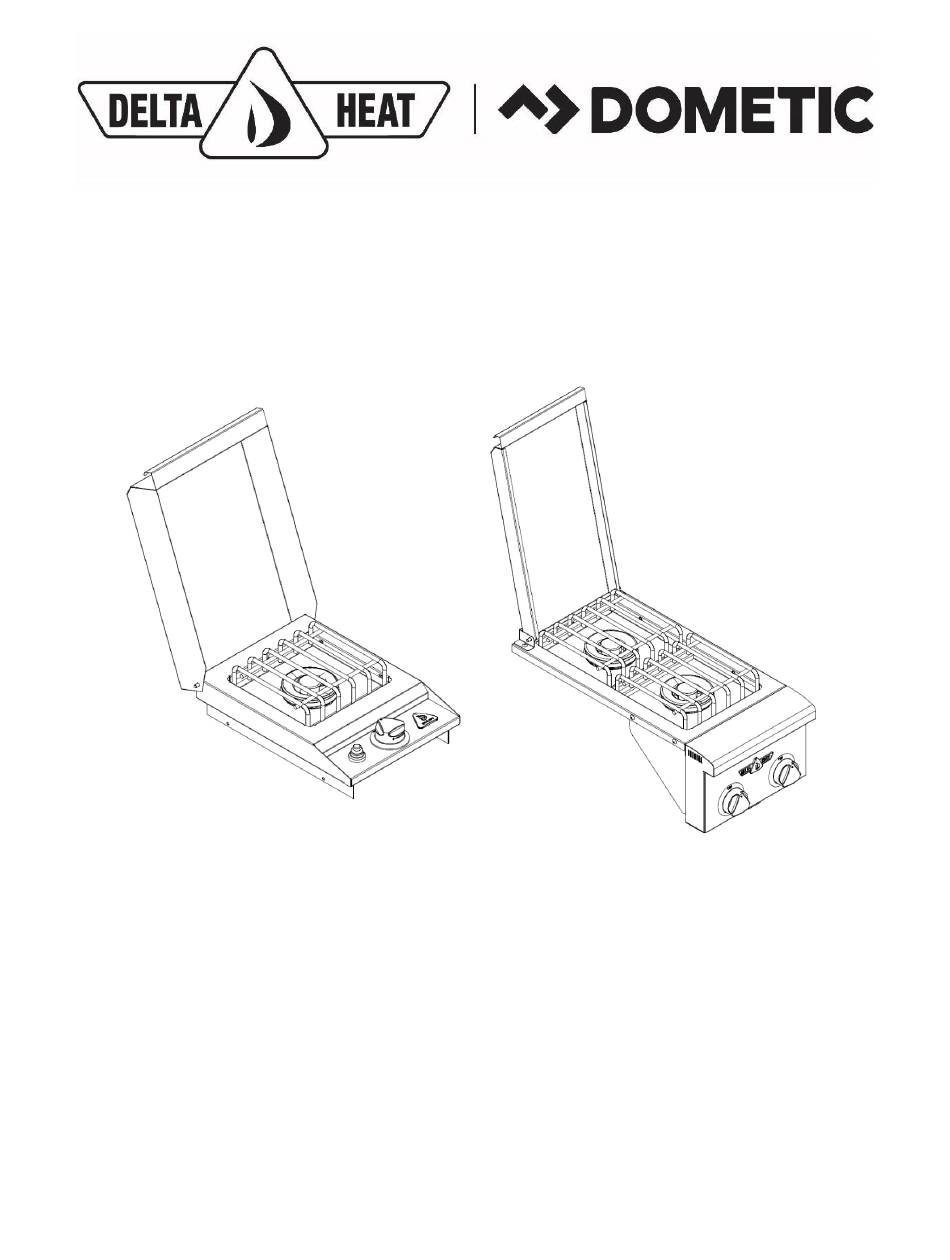

- Page 1 DELTA HEAT SIDE BURNER USE & CARE MANUAL MODEL: DHSB1D-D DHSB2-D DHSB2-KD DHSB2-WD P/N: 4490030194B 12/24...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue afin d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’incendie, de brûlures et d’autres blessures. -
Page 3: General Safety Requirements
10. Always use caution when operating the side burner in a windy area. 11. The pressure regulator and hose assembly supplied with the Delta Heat Side Burner must be used. Replacement pressure regulators and hose assemblies must be those specified by Delta Heat. -
Page 4: For Your Records
FOR YOUR RECORDS IMPORTANT: Retain original proof of purchase to establish warranty period. Please record the following information and refer to this information when contacting the company or an authorized service agent. This information is found on the rating/ data plate located on the inside side of the unit. - Page 5 The DHSB2-D, DHSB2-KD, & DHSB2-WD features a wire connection that when mated to the corresponding connection on the Delta Heat Grill will power the LED feature lights above the knobs. The connection wire is located on the underside of the Side Burner near the regulator. The connection from the grill to the side burner will be located on the right hand side of the grill near the regulator.
- Page 6 GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either Natural Gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the side burner.
- Page 7 CABINET CUT-OUT DIMENSIONS FOR BUILT-IN APPLICATION DHSB1D-D DHSB2-D DHSB2-KD DHSB2-WD...
- Page 8 Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by Delta Heat. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water.
- Page 9 EXPLODED VIEW – SIDE BURNER DROP-IN (DHSB1D-D) Detail A...
- Page 10 13843 Side Burner Grate 13195 Delta Black Knob 16157 2-Spark Ignition Module 13199 Delta Knob Bezel 13141 Delta Heat Logo 14160 Tinnerman Barrel Clip 4490050285 Drop-in Body Welded Assembly 4490050287 Holder Burner, One Burner 4490030017 Side Burner Valve Assembly 12601...
- Page 11 EXPLODED VIEW – 2-BURNER SIDE BURNER, BUILT-IN (DHSB2-D / DHSB2-KD / DHSB2-WD)
- Page 12 Straight Gas Valve 16323 2-Spark Ignition Module 23216 Ignition Module Bracket 4490050263 Landing Ledge Welded Assembly, 12 10 13201 Delta Heat Logo 11 14160 Tinnerman Barrel Clip 12 13199 Delta Knob Bezel 13 13195 Delta Black Knob 14 16272 Battery Pack...
-
Page 13: Warranty
WARRANTY ONE-YEAR FULL WARRANTY: Dometic Residential US warrants the outdoor Side Burners and all of their component parts, to be free from defects in materials and workmanship under normal residential use for a period of one year from the original date of purchase. The actual part will be repaired or replaced, free of charge, with the owner paying for all other costs including labor, installation, shipping and handling charges. - Page 14 THIS PAGE IS INTENTIONALLY LEFT BLACK...
- Page 15 HOW TO OBTAIN SERVICE For service, please contact your dealer or call Dometic Residential US direct at (800) 422-0091 or fax (562) 802- 3391 Mailing address: Dometic Residential US 13231 166 Street Cerritos, CA 90703 Visit us at www.deltaheat.com Please provide: ▪...
- Page 16 Here Place Postage Here Customer Service ATTN: Warranty Department 13231 166 Street Cerritos, CA 90703...
