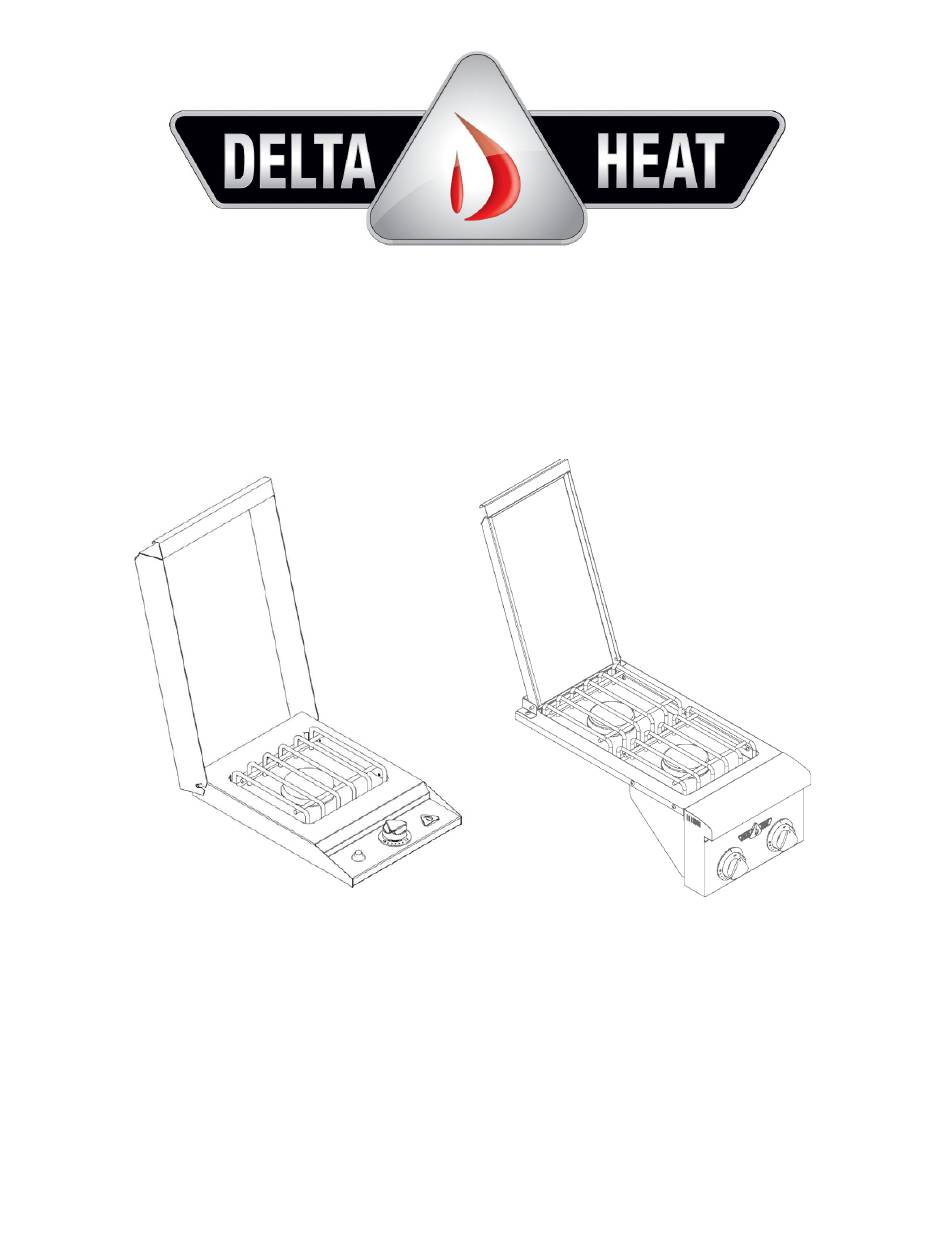

- Page 1 DELTA HEAT SIDE BURNER USE & CARE MANUAL MODEL: DHSB1D-C DHSB2-C P/N: 18778J 01/19...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue afin d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’incendie, de brûlures et d’autres blessures. -
Page 3: General Safety Requirements
10. Always use caution when operating the side burner in a windy area. 11. The pressure regulator and hose assembly supplied with the Delta Heat Side Burner must be used. Replacement pressure regulators and hose assemblies must be those specified by Delta Heat. -
Page 4: For Your Records
(If clicking sound is weak, replace the 9V battery). 4. b.) For DHSB1D-C, push-in and turn the burner knob counterclockwise to a “HI” (LARGE FLAME) position. Push and hold the ignition button. You should hear a continuous clicking sound and see sparks being provided to the burner. - Page 5 The battery is located under the front panel to the left of the knob for DHSB1D-C and in between the knobs for DHSB2-C as shown in the illustrations below.
- Page 6 GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either Natural Gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the side burner.
- Page 7 CABINET CUT-OUT DIMENSIONS FOR BUILT-IN APPLICATION DHSB1D-C DHSB2-C...
- Page 8 Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by Delta Heat. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water.
- Page 9 EXPLODED VIEW – SIDE BURNER DROP-IN (DHSB1D-C) Detail A...
- Page 10 SERVICE PARTS LIST – SIDE BURNER DROP-IN (DHSB1D-C) Service Item Part Description DHSB1D-CL DHSB1D-CN Number S21847 Side Burner Cover S13843 Side Burner Grate S13195 Delta Black Knob S16157 2-Spark Ignition Module S13199 Delta Knob Bezel S13141 Delta Heat Logo S14160...
- Page 11 EXPLODED VIEW – 2-BURNER SIDE BURNER, BUILT-IN (DHSB2-C)
- Page 12 S15132 Straight Gas Valve S16323 2-Spark Ignition Module S23216 Ignition Module Bracket S23202-12WY Front Panel, 2-Burner 10 S13201 Delta Heat Logo 11 S14160 Tinnerman Barrel Clip 12 S13199 Delta Knob Bezel 13 S13195 Delta Black Knob 14 S16272 Battery Pack...
- Page 13 800-422-0091. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the appliance, date of purchase and the accurate description of the problem. Delta Heat will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the appliance accessible for service.
- Page 14 THIS PAGE IS INTENTIONALLY LEFT BLACK...
-
Page 15: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your DELTA HEAT dealer or call DELTA HEAT direct at (800) 422-0091 or fax (562) 802-3391 Mailing address: DELTA HEAT, Inc. 13231 166 Street Cerritos, CA 90703 Visit us at www.deltaheat.com Please provide: ... - Page 16 Here Place Postage Here Customer Service ATTN: Warranty Department 13231 166 Street Cerritos, CA 90703...
