Appendix 01 to Assembly and
Operating Manual (BL106)
Construction hoist
For persons and loads
Special feature: Assembly after transportation in
a container

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTILIFT P6 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEDA MULTILIFT P6

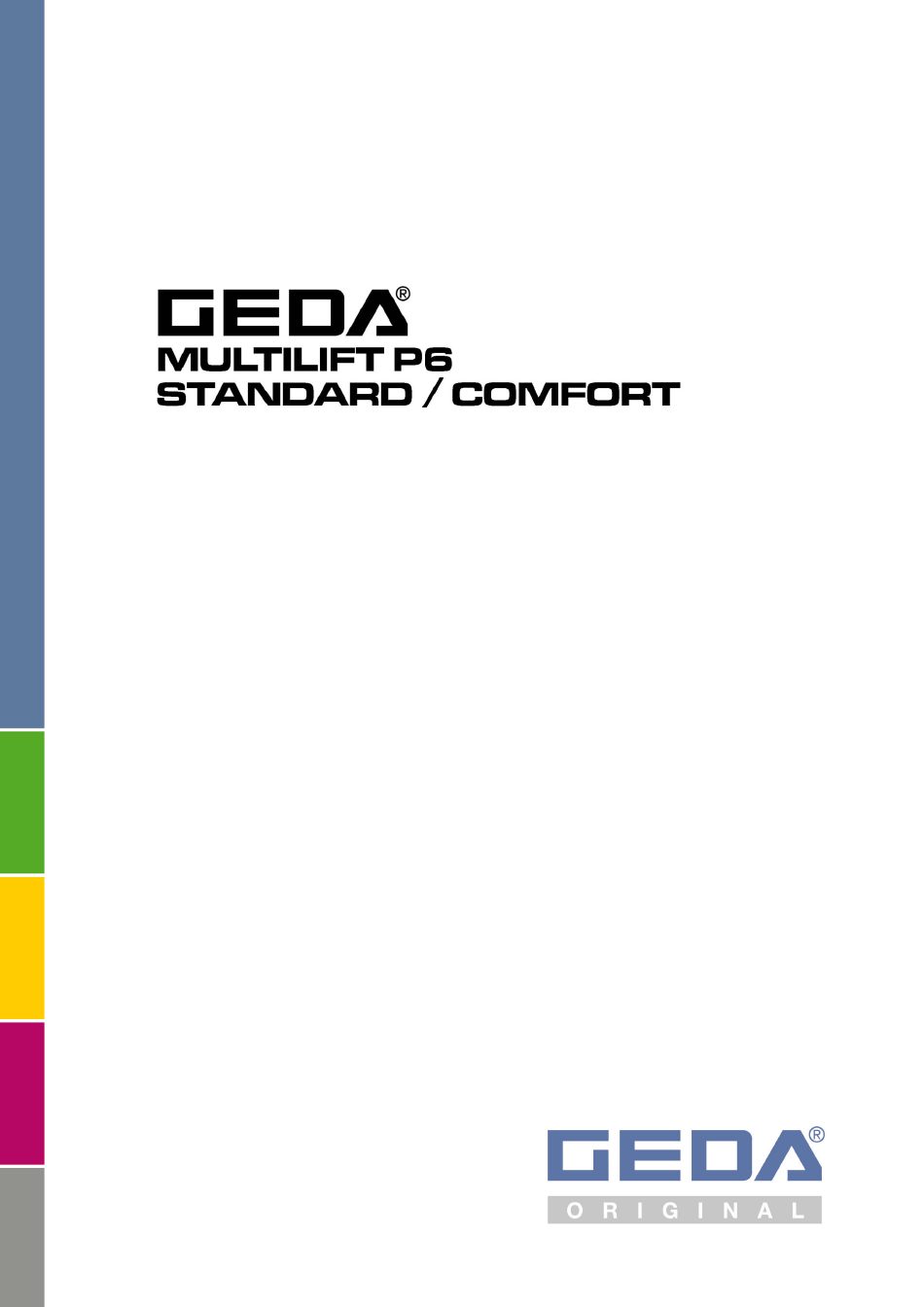

  • Page 1: Appendix 01 To Assembly And Operating Manual (Bl106)

    Appendix 01 to Assembly and Operating Manual (BL106) Construction hoist For persons and loads Special feature: Assembly after transportation in a container...
  • Page 3: General Information

    General Information General Information These instructions present a supplement to the Assembly and Operating Manual OM106 GEDA MULTILIFT P6. Only the assembly tasks are described that are required after transportation in a container. Hoist parts must be assembled or modified after transport in a container.
  • Page 4 Assembly after transportation in a container GEDA MULTILIFT P6 Assembly after transportation in a container Assembling the trailing cable holder  Mount the trailing cable holder (1) onto the trolley. Re-routing the trailing cable  Route the trailing cable (2) over the trailing cable holder (1) below the car-control switch box.
  • Page 5 GEDA MULTILIFT P6 Assembly after transportation in a container  Connect the plug of the trailing cable (2) to the socket below the car-control switch box. Assemble the cable box raised section (option) WARNING Risk of injury Using hoisting slings or chain suspension, attach the raised section to suitable lifting gear (e.g.
  • Page 6 Assembly after transportation in a container GEDA MULTILIFT P6 Assemble the ground-station switch box  Assemble the ground control, with assembly plate (15), adjacent to the enclosure element (16) adjacent to the enclosure sliding door. Assemble the enclosure sliding door...
  • Page 7 GEDA MULTILIFT P6 Assembly after transportation in a container  Attach the sliding door (10) to the front enclosure struts (11) with bolts (13).  Install protection below the sliding door (12) under the sill (14) and use bolts to attach the crossbeam of the sliding door.
  • Page 8 Assembly after transportation in a container GEDA MULTILIFT P6  Disassemble the sliding door interlocking (10B) from the enclosure.  Assemble the interlocking (10B) in the sliding door of the enclosure. Appendix 01 to BL106 Page 8 of 12 Edition 02.2016...
  • Page 9 GEDA MULTILIFT P6 Assembly after transportation in a container Assembling the enclosure segment  Insert the enclosure segment in place of the sliding door on the side of the enclosure. Edition 02.2016 Page 9 of 12 Appendix 01 to BL106...
  • Page 10 Assembly after transportation in a container GEDA MULTILIFT P6 Assembling the interlock cam  Disassemble the interlock cam (7) from the assembly bridge.  Attach the interlock cam (7) to the strut on the sliding door of the car and assemble on the roof.
  • Page 11 GEDA MULTILIFT P6 Assembly after transportation in a container Assembling impact buffer  Insert the drop test control into the car control switch box and ascend to the end of the base mast. (Also refer to the maintenance manual). ...
  • Page 12 GEDA-Dechentreiter GmbH & Co. KG Mertinger Strasse 60 86663 Asbach-Bäumenheim Tel.: +49 (0)9 06 / 98 09-0 Fax: +49 (0)9 06 / 98 09-50 E-Mail: info@geda.de Web: www.geda.de BL106 A01 GB Edition 02/2016...

This manual is also suitable for:

Multilift p6 standardComfort
