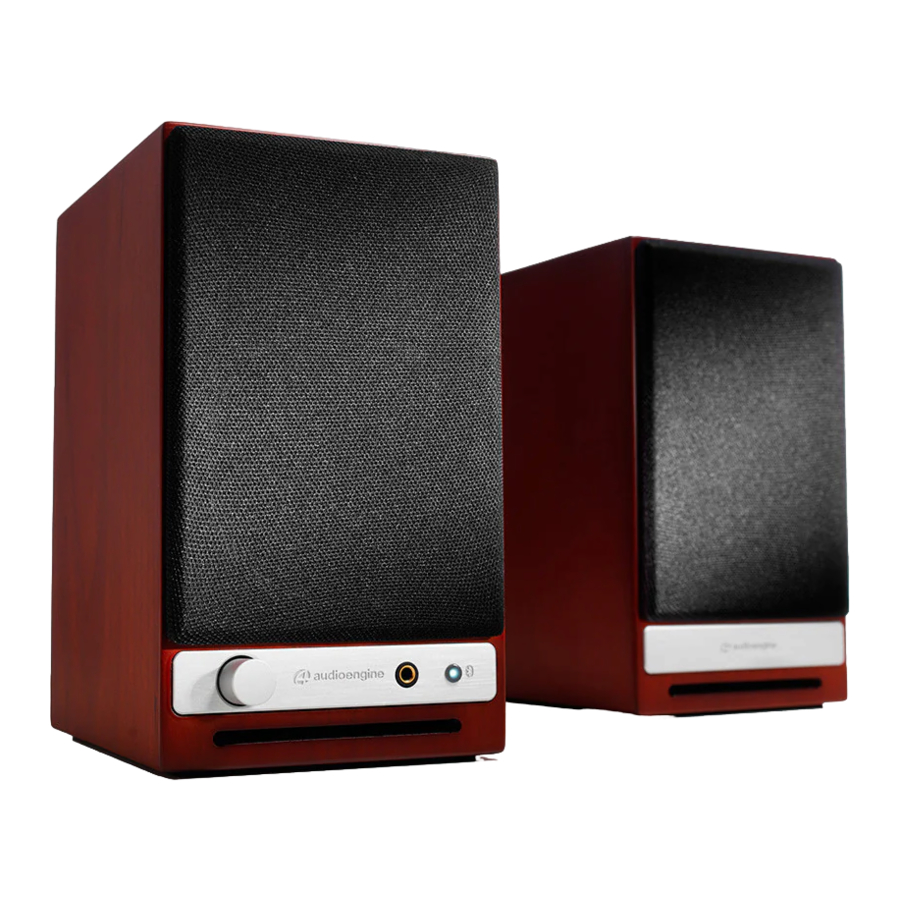

AudioEngine HD Series, HD3 Manual

What's in the box

HD3 powered (left) speaker
HD3 passive (right) speaker
Magnetic speaker grills
Speaker wire (16AWG), 2 meters (~6.5feet)
Power supply
Detachable power cord
Mini-jack audio cable, 1.5 meters (~5feet)
USB cable, 1.5 meters (~5feet)
Microfiber speaker bags
Microfiber power supply bag
Microfiber cable bag
Quickstart guide

Features

Built-in analog power amplifiers
Wireless Bluetooth® with aptX®, extended range, and 24-bit upsampling DAC
USB computer audio input
High-performance headphone amplifier
Dual analog inputs and variable audio output
Hand-built cabinets and high-quality connectors
Custom Kevlar woofers and silk tweeters
Detachable magnetic grills

Quick Setup

Connect the speaker wire from the HD3 left (powered) speaker to the right (passive) speaker, observing proper polarity to each connector.
Connect the wireless antenna to the HD3 rear panel.
Verify that the volume/power knob on the front panel of the left speaker is in the OFF position by rotating the knob counterclockwise until it clicks off.
Connect the cable from the external power supply unit to the left speaker rear panel.
Connect the power cord to the other end of the power supply and plug the cord into a functioning power outlet. A light on the power supply should now be illuminated.

Wireless connection

Turn power on via the front panel volume/power knob.
HD3 will automatically go into Bluetooth "pair mode" and the Power/Pair button on the HD3 front panel should start flashing.
On your device (phone, tablet, laptop, etc) turn on Bluetooth and go to Bluetooth preferences.
Select "Audioengine HD3" to pair and connect. The Pair indicator light on the HD3 front panel should be solid.
Play your music and adjust volume levels for HD3 and your device.
To add additional devices put HD3 back into pair mode by disconnecting HD3 from your device or by pressing and holding the Pair button on the HD3 front panel until the pair indicator starts flashing.
HD3 can wirelessly connect to only one device at a time, however it will remember up to six different devices.

Wired connection

Connect an audio cable (mini-jack or RCA) between your device and one of the inputs on the HD3 rear panel.
Play music and adjust the volume on the speakers and your device to your desired listening levels.

USB audio connection

Connect the included USB cable between an open port on your computer and USB input on the rear panel of the left powered speaker.
If using Windows, the HD3 should be recognized automatically. For Mac, under System Preferences/Sound/Output, select "Audioengine HD3"

As HD3 includes built-in power amplifiers do not connect the HD3 speaker terminals directly to the speaker outputs of a stereo receiver
or amplifier.

Inputs and volume settings

Multiple sources and devices may be connected to the speakers at the same time and all inputs are open and active so it's easy to switch between your tablet, phone, TV, or any other device.

To adjust the volume, we recommend you first set a level on HD3 and then use the volume control directly on your device to adjust the overall level. Volume settings are flexible and there is no right or wrong so feel free to experiment to find volume levels that work for you.

For setup diagrams and troubleshooting tips, go to: https://audioengine.com/quickstart-guides

Other Features

Variable audio output

The HD3 includes a variable full-range preamp audio output so you can connect a subwoofer, other Audioengine powered speakers, or wirelessly stream music to other systems around your house using an Audioengine wireless adapter. This output is variable (adjustable) so the volume level of the output can be controlled from the HD3 front panel.

Contact support

If you have any questions please contact our customer support team: https://audioengine.com/support-inquiry

Break-in period

Your HD3 speakers will sound great right out of the box and will sound even better over time. However, it's best to give them 40 to 50 hours break-in time before doing any critical listening.

Cleaning

We don't recommend using any solvents or cleaners on Audioengine cabinets or speakers. Just wipe down with a soft, dry cloth.

HD3 powered (left) speaker

HD3 powered (left) speaker - rear panel

Warranty Information

All Audioengine products have a 3-year Limited Warranty on parts and labor from date of purchase.

How to obtain Audioengine warranty service
If you have any questions about your warranty coverage or feel you may need service, please search our online knowledge base or contact customer support: https://audioengine.com/support-inquiry

We will do everything we can to answer your questions and resolve any issues as quickly as possible.

Safety Instructions

Please read these instructions before using this product.
Keep these instructions for future reference.
Heed all warnings on the product and in this guide.
Follow all instructions.
Do not use this apparatus near water or moisture.
Clean only with a dry cloth and as directed by the manufacturer.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blade sand a third grounding prong. The wider blade or third prong are provided for your safety.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Use only attachments or accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time to prevent damage to this product.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
