AudioEngine A5 Setup Manual

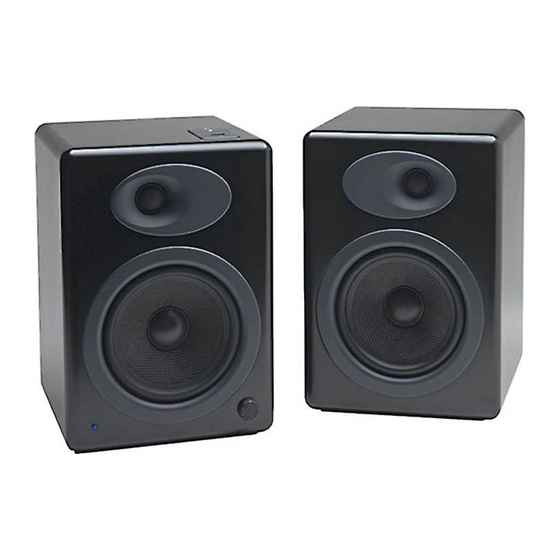

Audioengine 5 Premium Powered Bookshelf Speaker System
Features:
• USB power charging (ComboPort)
• 2 audio inputs
• Built-in power amps in left speaker
• Rear panel AC outlet
• Front panel volume control
• Kevlar woofers for super low end
• Silk tweeters for smooth highs
• Subwoofer outputs
• High-quality speaker connectors
• Auto-sleep power saving mode
• Hand- nished cabinets
• Video shielded
• 3-year warranty
• All cables included
Self-Powered
"Power and Substance...
the oasis in the MP3 Desert."
–Home Theater Magazine
Compatible With:
• Audioengine W1 and W2
• AirPort Express and other wireless systems
• iPod and all other music players
• Internet radio and network music systems
• Apple Universal Dock and other docks/remotes
• Desktop computers, laptops, notebooks
• Flat panel TVs
• Mobile phones and PDAs
• CD and DVD players
• Videogame consoles
• Digital radio and satellite receivers
• All products with 1/8" mini-jack or RCA outputs!
Works With Everything
A5 A2
Speci cations
Power output:
Inputs:
Outputs:
Main voltages:
Weight:
Ampli er type:
Signal-to-noise:
THD:
Crosstalk:
Freq. response:
Input impedance:
Included Accessories
• AC power cable
• ⁄ " audio cable, 2 meters (~6.5 ft)
• (2) ⁄ " audio cables, 20 cm (~8")
• ⁄ " to RCA "Y" cable
• USB power extender cable, 1 m (~3.3 ft)
• Speaker wire (16AWG), 3.75 meters (~12.3ft)
• Drawstring cable bags
• (2) High-density foam protectors/sonic pads
• Setup Guide
LINE OUT
L
R
AUDIO IN
AUX OUTLET
www.audioengineusa.com
Audioengine
Model: A5
Back (active speaker)
Wireless Ready
AS8 AW1 AW2
50W RMS/ 75W peak per channel (AES)
(2) Stereo ⁄ " mini-jack
USB Type A (power only), RCA line out
115/230V, 50/60Hz manually switchable
6.4Kg/ 14lbs (left), 4Kg/ 9lbs (right)
Dual Class AB monolithic
>95db (typical A-weighted)
<0.05% at all power settings
<50db
50Hz-22kHz ±1.5db
10K ohms unbalanced
Materials and Construction
• 1" thick MDF cabinet
• 5" Kevlar woofers with advanced voice coils
• 20mm silk dome tweeters with neodymium
magnets
• Torroidal power transformers
7"
Output to
OUT TO
right speaker
RIGHT
Line Out
Audio Input
Aux AC outlet
POWER ON/OFF
Power On/O
AC SELECT
Voltage Select
AC Input Audio Input
USB Power
Upgrade your audio
Front
Power LED Volume
Top
