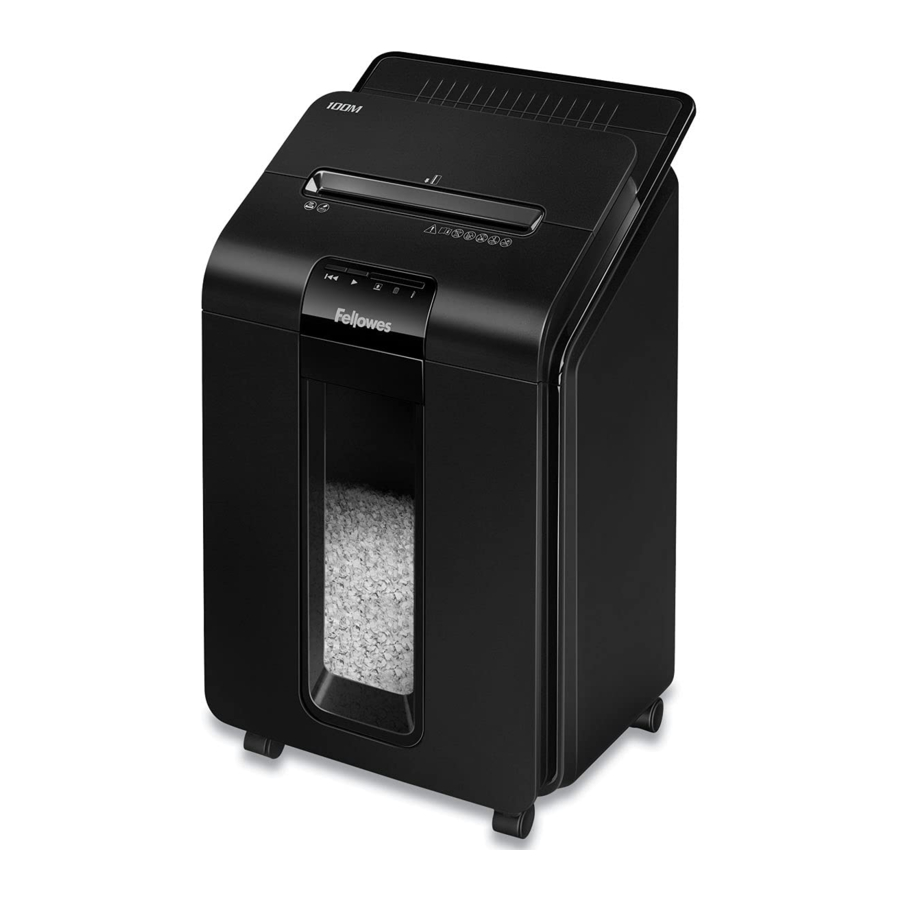

Fellowes AutoMax 100M Manual

KEY FEATURES AND CONTROLS

1. Auto Feed Tray
2. Auto Feed Flap
3. Disconnect Power Switch
   1. OFF
   2. ON
4. Manual Feed Slot
5. Pull-Out Bin
6. Casters
7. Auto Feed Tray Extension

8. See Safety Instructions
9. Control Panel and LEDs
   1. Reverse
   2. ON/OFF and Start (blue)/Bin Open
   3. Remove Paper (red)
   4. Bin Full (red)
   5. Overheat (red)

CAPABILITIES

Will shred: Paper, plastic credit cards*, staples* and small paper clips*
*Manual Feed
Will not shred: Adhesive labels, CD/DVDs, continuous form paper, transparencies, newspaper, cardboard, large paper clips, laminates, file folders, X-rays or plastic other than noted above
Paper shred size: Mini-Cut 4mm x 10mm

Maximum:
Sheets per pass (Auto Feed) 100*
Sheets per pass (Manual Feed) 10*
Cards per pass 1*
Paper entry width 220mm
* A4 (70g), paper at 220-240V, 50/60 Hz, 1.1Amps; heavier paper, humidity or other than rated voltage may reduce capacity. Maximum recommended daily usage rates:
1000 sheets; 15 credit cards.

IMPORTANT SAFETY INSTRUCTIONS

Read Before Using!

• Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.

• Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.

• Keep foreign objects - gloves, jewelry, clothing, hair, etc. - away from shredder openings. If object enters top opening, switch to Reverse (KK) to back out object.

• DO NOT use aerosol products, petroleum based or aerosol lubricants on or near shredder. DO NOT USE "CANNED AIR" OR "AIR DUSTERS" ON SHREDDER. Vapors from propellants and petroleum based lubricants may combust causing serious injury.

• Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.
• Moving parts: do not touch.

• This shredder has a Disconnect Power Switch (C) that must be in the ON (I) position to operate shredder. In case of emergency, move switch to OFF () position. This action will stop shredder immediately.
• Avoid touching exposed cutting blades under shredder head.
  Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
• FIRE HAZARD - Do NOT shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.

1. Plug in and put disconnect power switch in ON (I) position

2. Extend auto feed paper tray*

3. Add paper

4. Press start () to begin shredding


PRODUCT MAINTENANCE

OILING SHREDDER
All mini-cut shredders require oil peak perfomance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding, and could ultimately stop running. To avoid these problems, we recommend you oil your shredder each time you empty your waste bin.

FOLLOW OILING PROCEDURE BELOW AND REPEAT TWICE

1. *Apply oil across entry

2. Press and hold Reverse () for 2-3 seconds


* Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250

CLEANING AUTO-START INFRARED SENSORS
Paper detection sensors are designed for maintenance free operation. However, on rare occasions the sensors may become blocked by paper dust causing the motor to run even if there is no paper present.
(Note: the paper detection sensors is located in the center of the paper entry).

TO CLEAN THE SENSORS

TROUBLESHOOTING

Overheat Indicator: When the Overheat Indicator is illuminated, the shredder has exceeded its maximum operating temperature and needs to cool down. This indicator will remain illuminated and the shredder will not operate for the duration of the recovery time. See Basic Shredding Operation for more information about the continuous operation and recovery time for this shredder.

Bin Full: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 36053.
Bin Open: The shredder will not run if the bin is open. Close the bin to resume shredding.

Remove Paper: When illuminated, set to reverse () and remove paper. Reduce paper quantity to an acceptable amount and refeed into paper entry.
