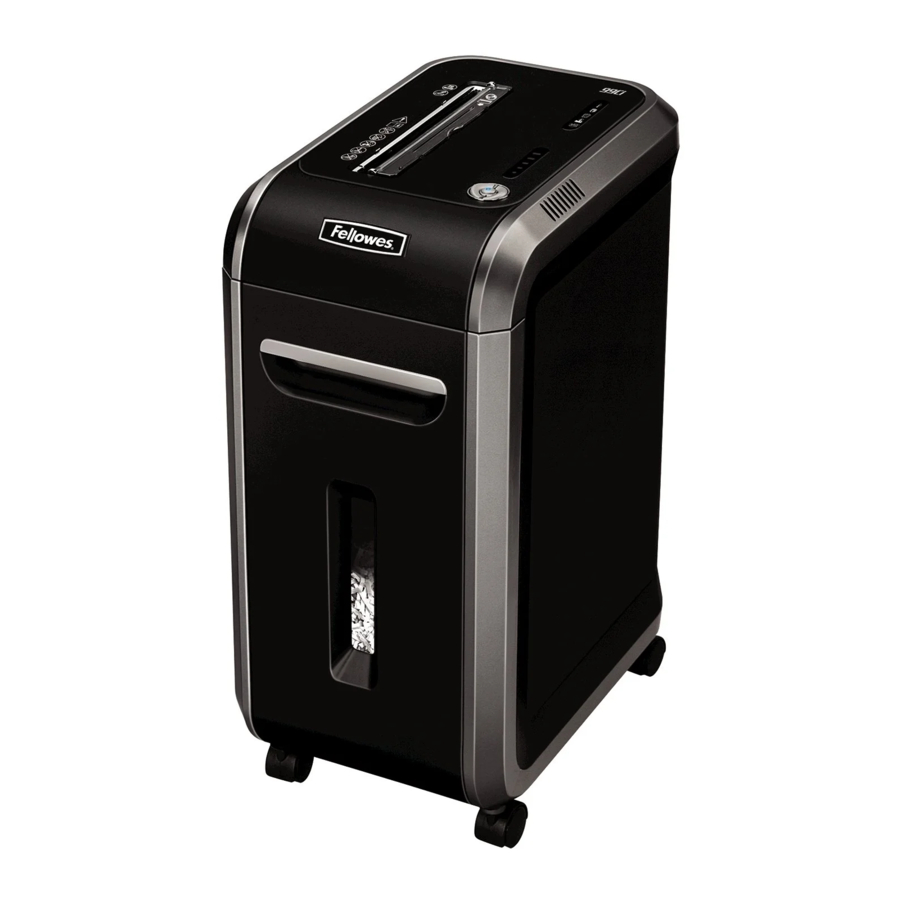

Fellowes Powershred 99Ci Manual

KEY

Please read these instructions before use.
Do not discard: keep for future reference.

1. SafeSense^® Technology
2. Paper entry
3. See safety instructions
4. CD/Card safety flap
5. Pullout bin
6. Casters
7. Disconnect power switch
   1. : OFF
   2. : ON

8. Control Panel and LEDs
   1. Overheat (red)
   2. Bin open (red)
   3. Bin full (red)
   4. Remove Paper (red)
   5. SafeSense^® indicator (yellow)
   6. Reverse
   7. ON/OFF (blue)
   8. Forward

CAPABILITIES

Will shred: Paper, plastic credit cards, CD/DVDs, staples, small paper clips and junk mail

Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper, cardboard, large paper clips, laminates, file folders, X-rays or plastic other than noted above

Paper shred size: Cross-Cut 4 x 38mm

Maximum:
Sheets per pass 18*
CDs/Cards per pass 1*
Paper entry width 230mm *

*A4 (70g), paper at 220-240V/50/60 Hz, 2.5Amps; heavier paper, humidity or other than rated voltage may reduce capacity. Maximum recommended daily usage rates: 1500 sheets per day, 50 credit cards; 10 CDs. 18 sheets per pass.

Fellowes SafeSense^® shredders are designed to be operated in home and office environments ranging between 50 – 80 degrees Fahrenheit (10 – 26 degrees Celsius) and 40 – 80% relative humidity.

BASIC SET UP

CASTER INSTALLATION

BASIC SHREDDING OPERATION

Continuous operation: Up to 30-minute maximum

NOTE: Shredder runs briefly after each pass to clear entry. Continuous operation beyond 30-minutes will trigger 40-minute cool down period.

PAPER OR CD/CARD

1. Plug in and put disconnect power switch in ON (I) position

2. Press () ON to activate (blue)

3. Feed paper straight into paper entry and release

   or
4. To shred CDs rotate CD flap into place

5. Hold CD/card at edge, feed into CD/Card flap entry and release

6. When finished shredding set to OFF ()


ADVANCED PRODUCT FEATURES

• 100% JAM PROOF. Jam Proof System
  Eliminates paper jams and powers through tough jobs.
• SafeSense^® Technology
  Stops shredding immediately when hands touch the paper entry.
• SilentShred™ Technology
  SilentShred™ Technology noise quality shreds without noisy disruptions.
• Energy Savings System
  Optimal energy efficiency 100% of the time – in use and out of use.

JAM PROOF SYSTEM OPERATION*

Eliminates paper jams and powers through tough jobs.

*100% Jam Proof when used in accordance with user manual

SAFESENSE ® TECHNOLOGY OPERATION

Stops shredding immediately when hands touch the paper opening.

SET-UP AND TESTING

1. Turn the shredder ON () to activate SafeSense^®

2. Touch test area and look for the SafeSense^® indicator to illuminate

3. SafeSense^® is active and working properly

4. If hand is held on SafeSense^® area more than 3 seconds shredder will shut off


For more information about all of Fellowes Advanced Product Features go to www.fellowes.com

ENERGY SAVINGS SYSTEM

Optimal energy efficiency 100% of the time – in use and out of use.

• Saves energy in four ways: energy-efficient electronics, jam prevention, standby mode and sleep mode.
• Sleep Mode shuts down shredder after 2 minutes of inactivity.

WHEN IN SLEEP MODE

• In sleep mode

• To get out of sleep mode touch control panel

  or
• Insert paper


PRODUCT MAINTENANCE

OILING SHREDDER

All cross-cut shredders require oil for peak performance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding and could ultimately stop running. To avoid these problems, we recommend you oil your shredder each time you empty your waste bin.

FOLLOW OILING PROCEDURE BELOW AND REPEAT TWICE

1. *Apply oil across entry

2. Press and hold forward ( ) 2-3 seconds


*Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250

CLEANING AUTO-START INFRARED SENSORS

Paper detection sensors are designed for maintenance free operation. However, on rare occasions, the sensors may become blocked by paper dust causing the motor to run even if there is no paper present. (Note: two paper detection sensors are located in the center of the paper entry).

TO CLEAN THE SENSORS

1. Turn off and unplug shredder

2. Locate Auto-start infrared sensor

3. Dip cotton swab in rubbing alcohol

4. Using cotton swab, wipe away any contamination from the paper sensors


TROUBLESHOOTING

Overheat Indicator: When the Overheat Indicator is illuminated, the shredder has exceeded its maximum operating temperature and needs to cool down. This indicator will remain illuminated and the shredder will not operate for the duration of the recovery time. See Basic Shredding Operation for more information about the continuous operation and recovery time for this shredder.

Bin Open: The shredder will not run if the bin is open. When illuminated, close the bin to resume shredding.

Bin Full: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 36053.

Remove Paper: When illuminated, press reverse () and remove paper. Reduce paper quantity to an acceptable amount and refeed into paper entry.

SafeSense® Indicator: If hands are too close to the paper entry, the SafeSense® indicator will illuminate and the shredder will stop shredding. If SafeSense^® is active for 3 seconds, the shredder will automatically turn off and the user must press the power button on the control panel fo resume shredding.

IMPORTANT SAFETY INSTRUCTIONS

Read Before Using!

• Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.
• Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.
• Keep foreign objects — gloves, jewelry, clothing, hair, etc. — away from shredder openings. If object enters top opening, switch to Reverse ( ) to back out object.
• DO NOT use aerosol products, petroleum based or aerosol lubricants on or near shredder.
  DO NOT USE "CANNED AIR" OR "AIR DUSTERS" ON SHREDDER. Vapors from propellants and petroleum based lubricants may combust causing serious injury.
• Do not use if damaged or defective.
  Do not disassemble shredder.
  Do not place near or over heat source or water.
• This shredder has a Disconnect Power Switch (G) that must be in the ON (I) position to operate shredder. In case of emergency, move switch to OFF (0) position. This action will stop shredder immediately.
• Avoid touching exposed cutting blades under shredder head.
• Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
• FIRE HAZARD — Do NOT shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.
