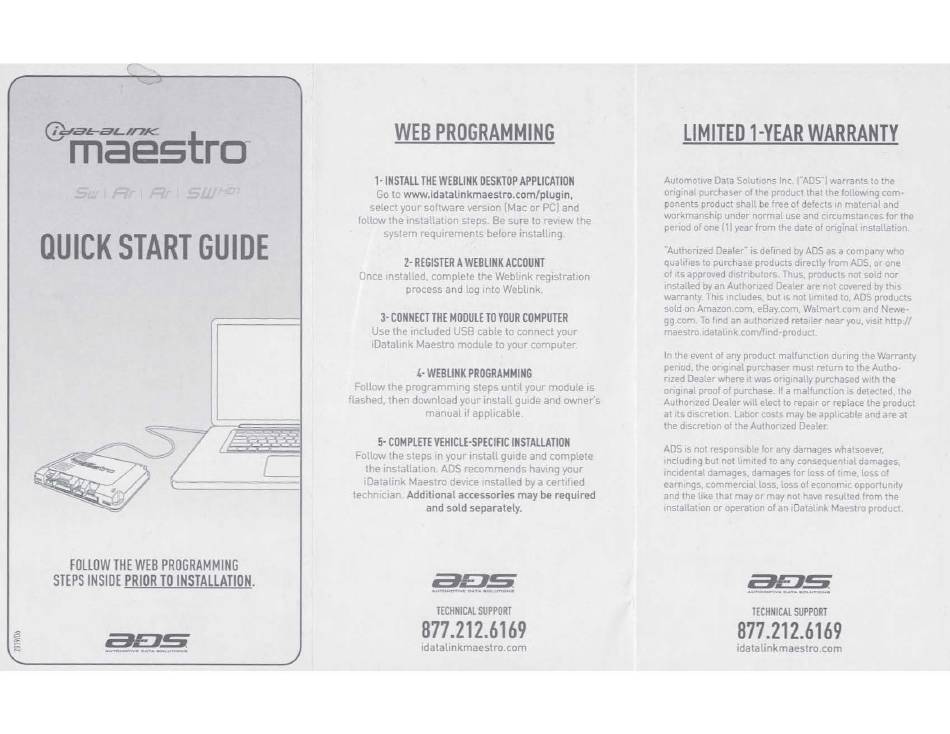

QUICK START GUIDE
FOLLOW THE WEB PROGRAMMING
STEPS INSIDE
PRIOR TO INSTALLATION.
i
i!!3£1,S_
=
~
• • DA
....
-
~ •
WEB PROGRAMMING
1- INSTALL THE WEBLINK DESKTOP APPLICATION
Go to
www.idatalinkmaestro.com/plugin,
select your software vers,on (Mac or PCI and
follow the installation steps. Be sure to review the
system requ rements before installing.
2-
REGISTER
A WEBLINKACCOUNT
Once installed :omplete the Webl1nk registration
process and log into Weblink.
3- CONNECT THE MODULE TO YOUR COMPUTER
Use the included USB cabte to corntict your
1Datalink Maestro module to your computer.
4-
WEBLINK PROGRAMMING
Follow the progr..:mming S,PpS 1...nt1t your module is
flashed, then download your install guide and owner·s
manual
11
applicable.
5- COMPLETE VEHICLE-SPECIFIC INSTALLATION
Follow t.he steps in your install guide and corrtplete
the •nstatlat,on ADS recommends having your
iDatalmk Maestro device ,n,;ta led bv a certified
technician.
Additional
accessories may be required
and sold separately.
i!!3£1,5.
-
.......... Ol.u"nOa,,•
TECHNICAL SUPPORT
877 .212.6169
idatalinkmaestro.com
