Kraus KAG-1 Manual

Diagram and Parts List

1. Cap
2. Nut & Washer
3. Washer
4. Nut

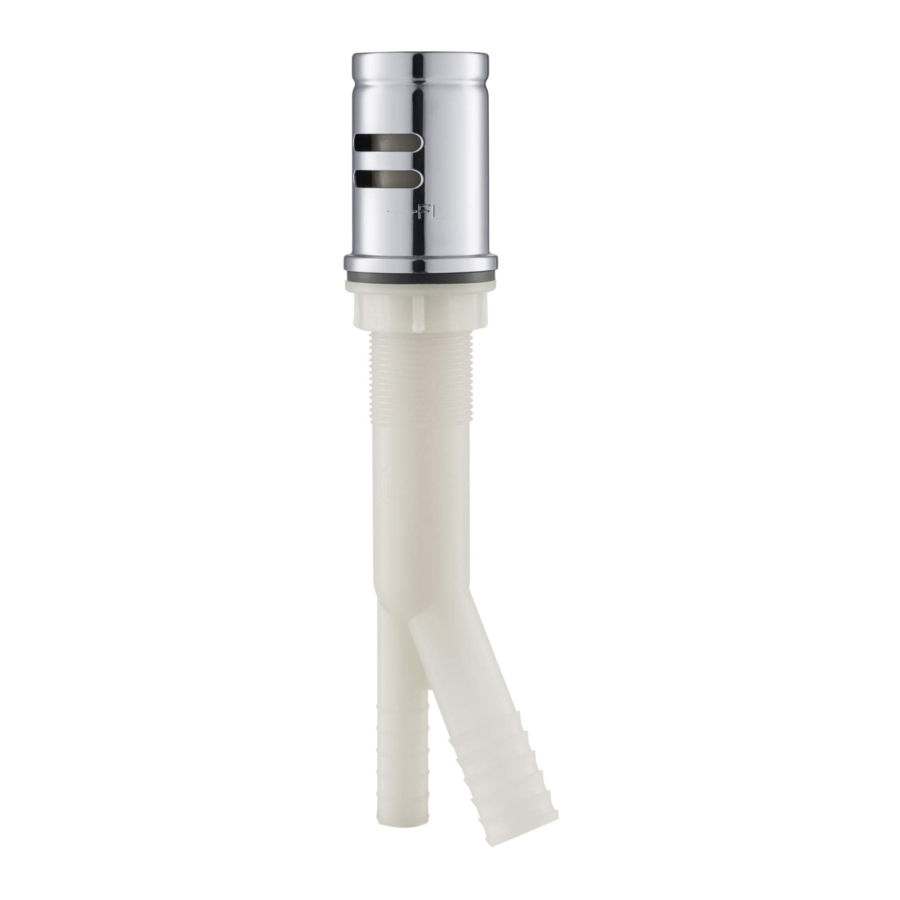

5. Air Gap Body

Dimension

Setting Up

1. Remove the cap (A) and nut & washer (B).

2. Insert the air gap body (E) through the sink deck hole, leaving approximately 2-1/4" (57 mm) of the body showing above sink deck. (Back the nut (D) down if necessary).

3. Thread the cap (A) and the nut & washer (B) fully onto body, with the slotted vents (1) facing the wall. Tighten the nut (D) firmly. Note: The air gap is to be installed so that the flood level mark (F/L) shall be at or above the flood level of the sink or other receptacle which may be connected to the sanitary drain into which the air gap discharges.

4. Connect the dishwasher outlet hose (5/8 '' I.D.) (1) to air gap inlet (smaller diameter leg) (2) and to dishwasher outlet (3) using hose clamps (4). Connect the drain hose (7/8 '' I.D.) (5) to air gap outlet (larger dimension leg) (6) and to "Y" fitting (7) or disposer (8) using hose clamps. (1, 3, 4, 5, 7, 8 are not included).
