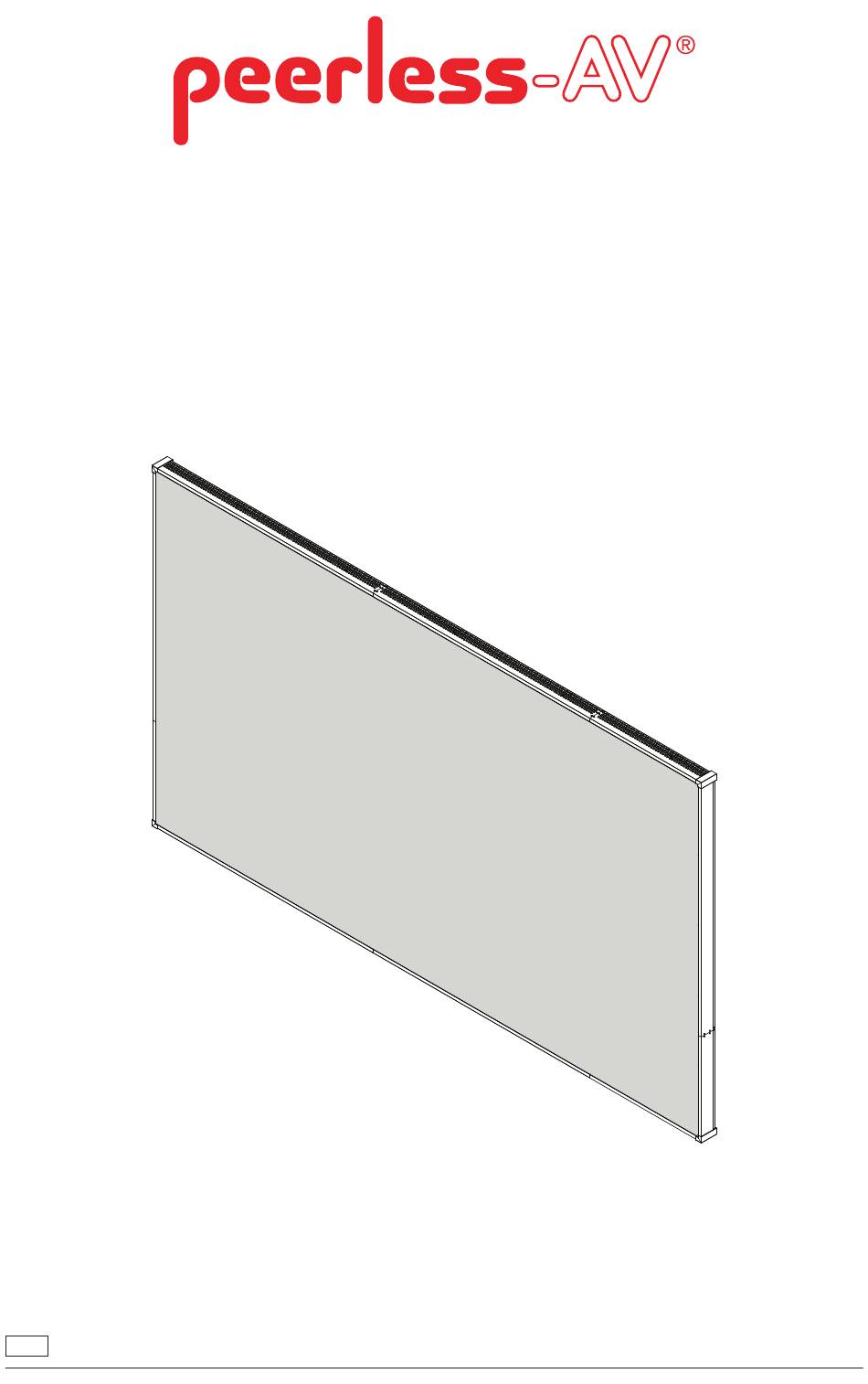

- Page 1 SEAMLESS Connect Universal dvLED Trim Kit LEDTK Series *Actual configuration may vary 2024-04-18 #:146-9083-1...
- Page 2 WARNING ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware.
-
Page 3: Parts List
Parts (Before beginning, make sure you have all parts shown below). *Refer to parts list included with your model. Parts List Description Qty. * inner corner outer corner solid cover cover cover perforated cover solid trim, shallow perforated trim, shallow inner corner cover nut bar M6 x 8mm socket screw... - Page 4 3mm stubby allen wrench 5mm stubby allen wrench 4mm stubby allen wrench 6mm stubby allen wrench M5: for spacer extension #91294A541 for spacer M5/M6 M8/M10 M5 flat M6 flat M8 flat M10 flat #520-1179 spacer spacer head screw head screw head screw head screw for spacer...
- Page 5 This page intentionally left blank. 2024-04-18 #:146-9083-1...
- Page 6 Measure video wall dimensions. x" z" y" Choose between shallow or deep trim pieces by measuring "z" dimension. Use shallow trim for video wall depth of 66-106mm. Use deep trim for video wall depth of 109-150mm. z" = 66-106mm, use C and D z"...
- Page 7 Choose the appropriate shallow or deep solid covers for vertical (side) sections of video wall. Mark cutting line on covers and trim pieces using (Y) measurement from previous step. Leave top edge uncut. y" Uncut edges must form inside seam. 2024-04-18 #:146-9083-1...
- Page 8 Optional: Clamp cutting guide to side of trim or cover that shall be used. Not included. Not included. Discard Discard 2024-04-18 #:146-9083-1...
- Page 9 Thread M3 screws into riser assembly leaving a 0.08" (2mm) gap. N (2) 0.08" (2mm) Place nut bars into top channel of top horizontal extrusion. Space nut bars and riser assemblies evenly along extrusion, approximately every 24" +/- 6". Thread M6 x 8mm screws into nut bars leaving a gap. Hook riser assemblies onto screws;...
- Page 10 Choose between shallow or deep mounting bracket based on depth of video wall. Attach mounting bracket to the riser assembly using keyhole slots. The mounting bracket must reside 0.06" (1.5mm) from front edge of the video wall as shown in step 3-5. Tighten.
- Page 11 Attach first perforated trim to the riser assemblies using the M6 x 10mm screws. Continue attaching the perforated trim one at a time while using the joiner plates and M3 x 8mm screws in sequence. N (4) Displays not shown for clarity. ENG Slide trim to flush with wall.
- Page 12 Note locations on back of video wall where support brackets shall be attached using screen-side hardware provided. A 5x5 display configuration is shown as an example. Sold separately. M5 x 22mm M6 x 25mm M8 x 22mm M10 x 25mm Slide support brackets until contact with edge of display.
- Page 13 Attach solid trim to the support bracket assemblies using the M6 x 10mm screws. Connect the trim pieces using the joiner plates and M3 x 8mm screws. Repeat for other side. N (4) ENG Slide trim to flush with wall. Tighten hardware. For bottom row of displays, take support bracket assembly and attach standoff depth adjustment bracket (sold separately).
- Page 14 Attach perforated trim to the support bracket assemblies using the M6 x 10mm screws. Connect the trim pieces using the joiner plates and M3 x 8mm screws one at a time in sequence. N (4) 2024-04-18 #:146-9083-1...
- Page 15 WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8"...
- Page 16 Install using wood screws (not included). Not included. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). 2024-04-18 #:146-9083-1...
- Page 17 Place cover over installed trim. Slide back until flush with front of video wall. CROSS SECTION DETAIL Attach covers using joiner plates from inside cover. Connect one at a time in sequence. N (2) N (2) 2024-04-18 #:146-9083-1...
- Page 18 Turn corner cover flat end Optional: Slide corner cutting towards wall. Place corner guide into place and clamp cover against wall and mark onto side of cover being cutting line. discarded. Not included. Cut excess corner cover off. Do not clamp fixture on wrong side of cutting line. 2024-04-18 #:146-9083-1...
- Page 19 Connect inner corner cover. Repeat for all corners. Connect outer corner cover. Repeat for all corners. K (4) E (4) Check for alignment and flush surfaces. Adjust as necessary. 2024-04-18 #:146-9083-1...
