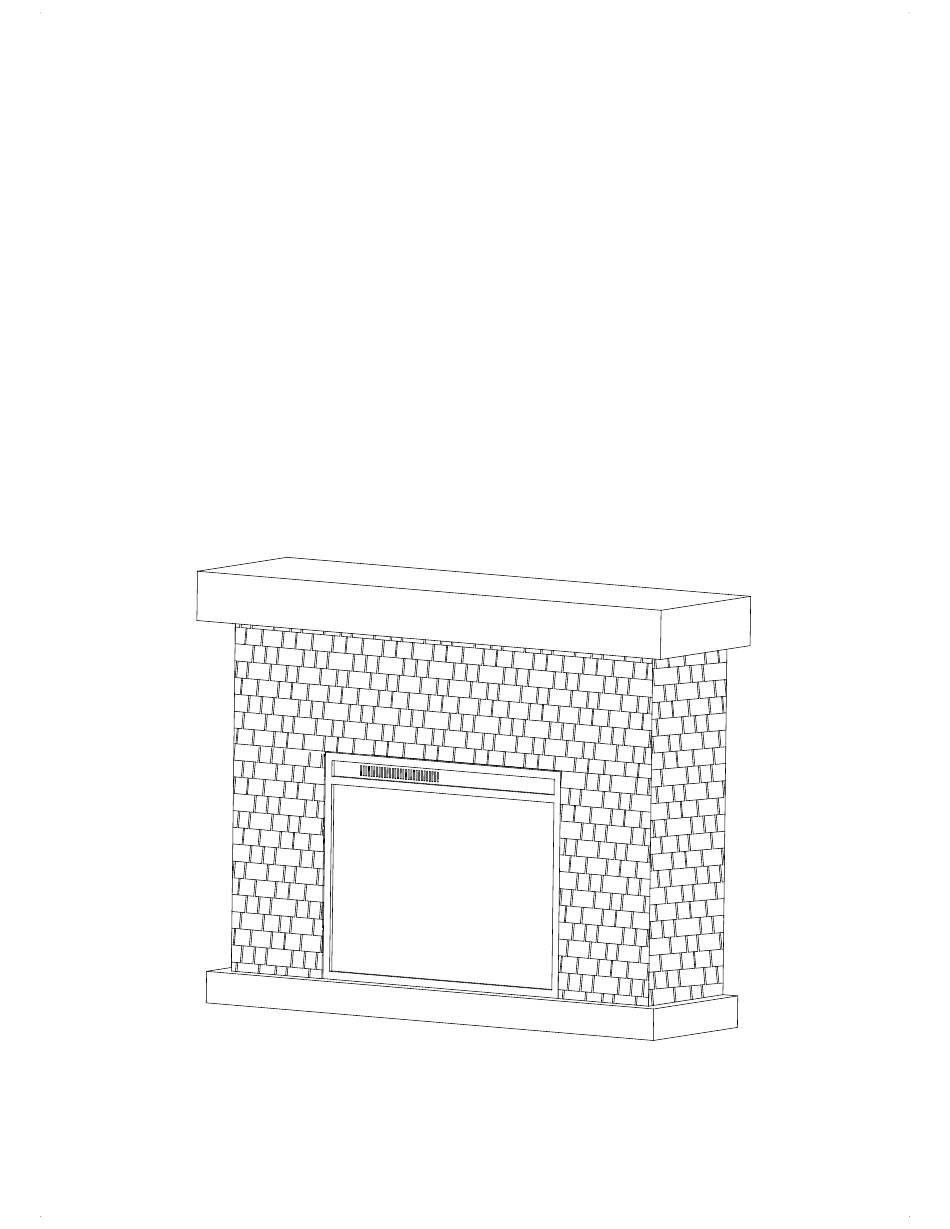

- Page 1 CountryLiving Dixson Stone Mantel Model ： CL-M-STN-2302...
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand the entire manual before attempting to assemble, install, or operate the product. WARNING! You may need an adult to assist with some steps. CAUTION! Before assembly and installation, carefully unwrap all parts. Locate and set aside the hardware kit before disposing of the packaging. - Page 3 Maximum load 99 lbs Questions, problems, missing parts? Before returning to store, call Customer Service: 8am-5pm CST, Monday – Friday Phone: 877-430-0703 Email: resolutions@electricfireplacesdirect.com Please save these instructions for future reference...
-
Page 5: Tools Needed
TOOLS NEEDED Phillips Head Screwdriver Drill (not included) (not included) PARTS PART NO. DESCRIPTION Header Left Side Right Side Base... - Page 6 HARDWARE DESCRIPTION PART NO. M8x60mm Bolt 25x11mm Gasket 22x9mm Gasket M8 Butterfly Nut M8x40mm Bolt 4.5x12mm Screw SAFETY STRAP KIT DESCRIPTION PART NO. Bracket 260mm Nylon Strap 4x50mm Screw 4x16mm Screw...
- Page 7 STEP 1 Description Hardware/Tool M8x60mm Bolt 25x11mm Gasket 22x9mm Gasket M8 Butterfly Nut Gently set the left side panel (3) and right side panel (4) on the base (5) as shown in the diagram. Place a gasket (C) on each long bolt (A), and then add a gasket (B) to each bolt.
- Page 8 STEP 2 Description Hardware/Tool M8x60mm Bolt 25x11mm Gasket 22x9mm Gasket M8 Butterfly Nut On each long bolt (A), place a gasket (C) and then a gasket (B). Carefully set the header (2) on the top of the side panels (3 & 4), making sure the holes are aligned.
- Page 9 STEP 3 Description Hardware/Tool M8x40mm Bolt 25x11mm Gasket 22x9mm Gasket Phillips Head Screwdriver Place a gasket (C), then a gasket (B), on each short bolt (E). Carefully set the top (1) onto the header (2), making sure the holes are aligned. Using a screwdriver, install a bolt (E) into a hole from the bottom of the top (1), but do not tighten.
- Page 10 STEP 4 Carefully place the electric fireplace insert on the base of the mantel.
- Page 11 STEP 5 Description Hardware/Tool 4.5x12mm Screw Phillips Head Screwdriver Using the screwdriver, secure the fireplace insert to the mantel with the included screws (F). Make sure the base (5), panels (3 & 4), header (2), and top (1) are in the correct positions. Tighten all the butterfly nuts (D) from steps 1, 2, and 3.
- Page 12 STEP 6 Description Hardware/Tool Bracket 260mm Nylon Strap 4x50mm Screw 4x16mm Screw Drill - Wall Stud - Montant de mur - Perno prisionero de la pared WARNING AVERTISSEMENT! ¡ADVERTENCIA! : This tip restraint must Ce dispositif Esta sujeción de be attached to a wall stud using the 50mm de retenue de pointe doit être fixé...
- Page 13 CountryLiving CountryLiving Questions, problems, missing parts? Before returning to store, call Customer Service: 8am-5pm CST, Monday – Friday Phone: 877-430-0703 Email: resolutions@electricfireplacesdirect.com Please save these instructions for future reference...
