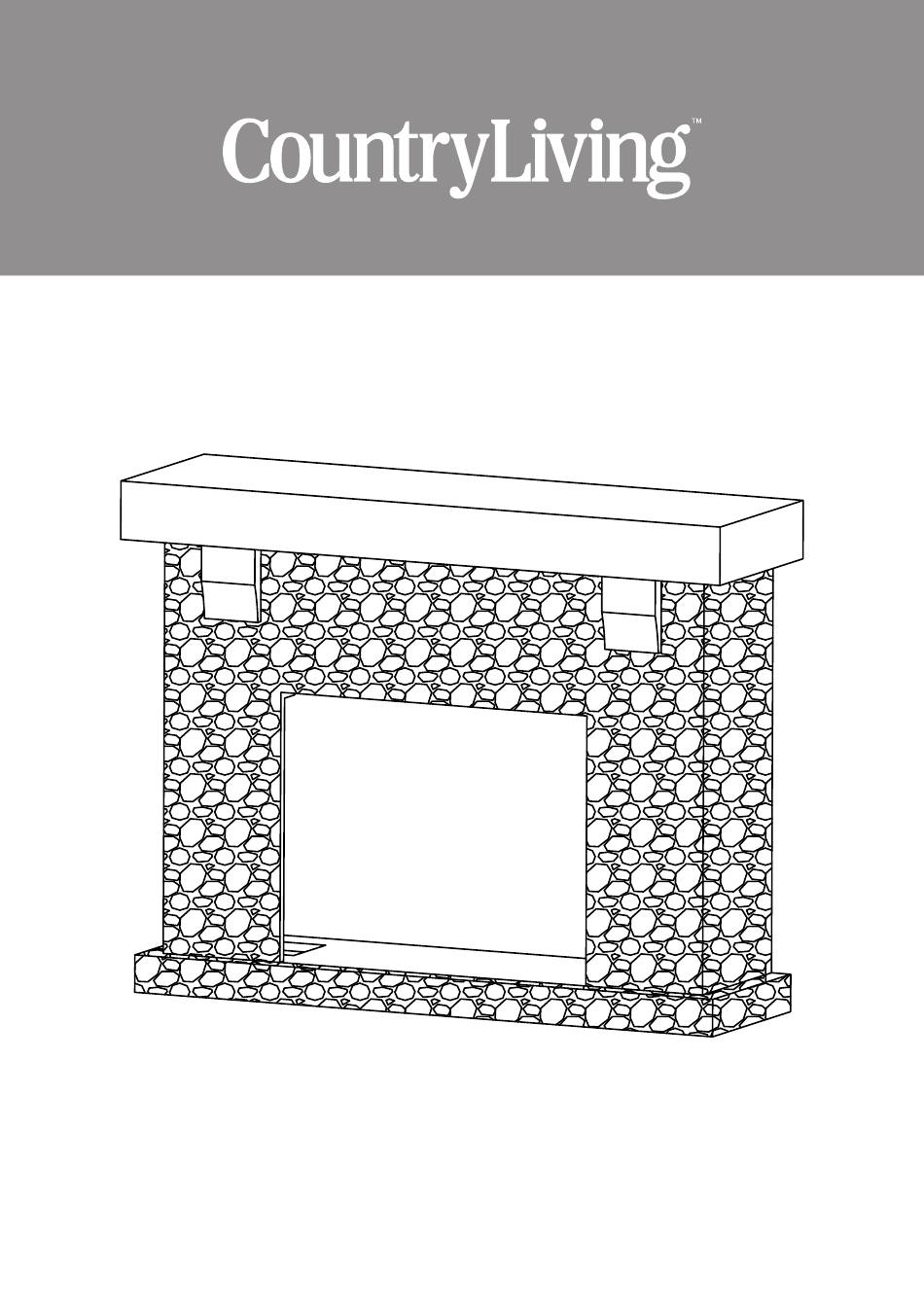

- Page 1 Glenbrook River Rock Mantel Model: CL-M-RR-2409 OWNER’S MANUAL 06/26/2024 | REV. A...
-
Page 2: Important Safety Instructions
Important Safety Instructions Read and understand the entire manual before attempting to assemble, install, or operate the product. WARNING CAUTION Two people required for some steps. Before assembly and installation, carefully unwrap all parts. Locate and set aside the hardware kit before WARNING disposing of the packaging. -
Page 3: Tools Required
Tools Required DRILL PHILLIPS HEAD SCREWDRIVER (Not Included) (Not Included) Parts & Hardware PREPARATION NOTES Before you begin, locate the parts and hardware. • Be sure all parts and hardware are present and can be identified. To avoid scratching the finish, assemble the product on a soft, non-abrasive surface such as •... - Page 4 Parts & Hardware PARTS PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION Left Side Base Header Right Side Left Corbel Right Corbel...
- Page 5 Installation & Assembly STEP 1 | Gasket - 25 x 11mm | x8 | Bolt - M8 x 60mm | x4 | Gasket - 22 x 9mm | x8 | Butterfly Nut - M8 | x4 1. Carefully set the left Side Panel (3) and 5.
- Page 6 Installation & Assembly STEP 2 | Gasket - 25 x 11mm | x8 | Bolt - M8 x 60mm | x4 | Gasket - 22 x 9mm | x8 | Butterfly Nut - M8 | x4 1. Carefully set the Header (2) on the top 5.
- Page 7 Installation & Assembly STEP 3 | Bolt - M8 x 40mm | x4 | Gasket - 25 x 11mm | x4 | Gasket - 22 x 9mm | x4 1. Place a Gasket (C) and then a Gasket (B) onto a short Bolt (E). Repeat for the other bolts.
- Page 8 Installation & Assembly STEP 4 | Bolt - M8 x 40mm | x4 | Gasket - 25 x 11mm | x4 | Gasket - 22 x 9mm | x4 1. Carefully set the Top (1) onto the Side 3. Using a screwdriver, install Bolt (E) into Panels (3 &...
- Page 9 Installation & Assembly STEP 5 1. From the back of the mantel, carefully place the electric fireplace onto the base of the mantel. 2. Make sure the insert is centered in the mantel opening.
- Page 10 Installation & Assembly STEP 6 | Screw - 3.5 x 25mm | x4 1. Using the screwdriver, secure the fireplace insert to the mantel with the included Screws (F). 2. Make sure the Base (5), Panels (3 & 4), Header (2), and Top (1) are in the correct positions.
- Page 11 Installation & Assembly STEP 7 | Nylon Strap - 260mm | x1 | Bracket | x2 | Screw - 4 x 50 mm | x1 | Screw - 4 x 16 mm | x1 - Wall Stud - Montant de mur - Perno prisionero de la pared...
- Page 12 Thank you for purchasing the Glenbrook Mantel! Each unit has been manufactured to ensure safety and reliability. Before first use, read the instructions carefully and keep it for further reference. Questions, problems, missing parts? Before returning to store, call Customer Service: 8am-5pm CST, Monday - Friday Phone: 877-430-0703 Email: resolutions@electricfireplacesdirect.com...
