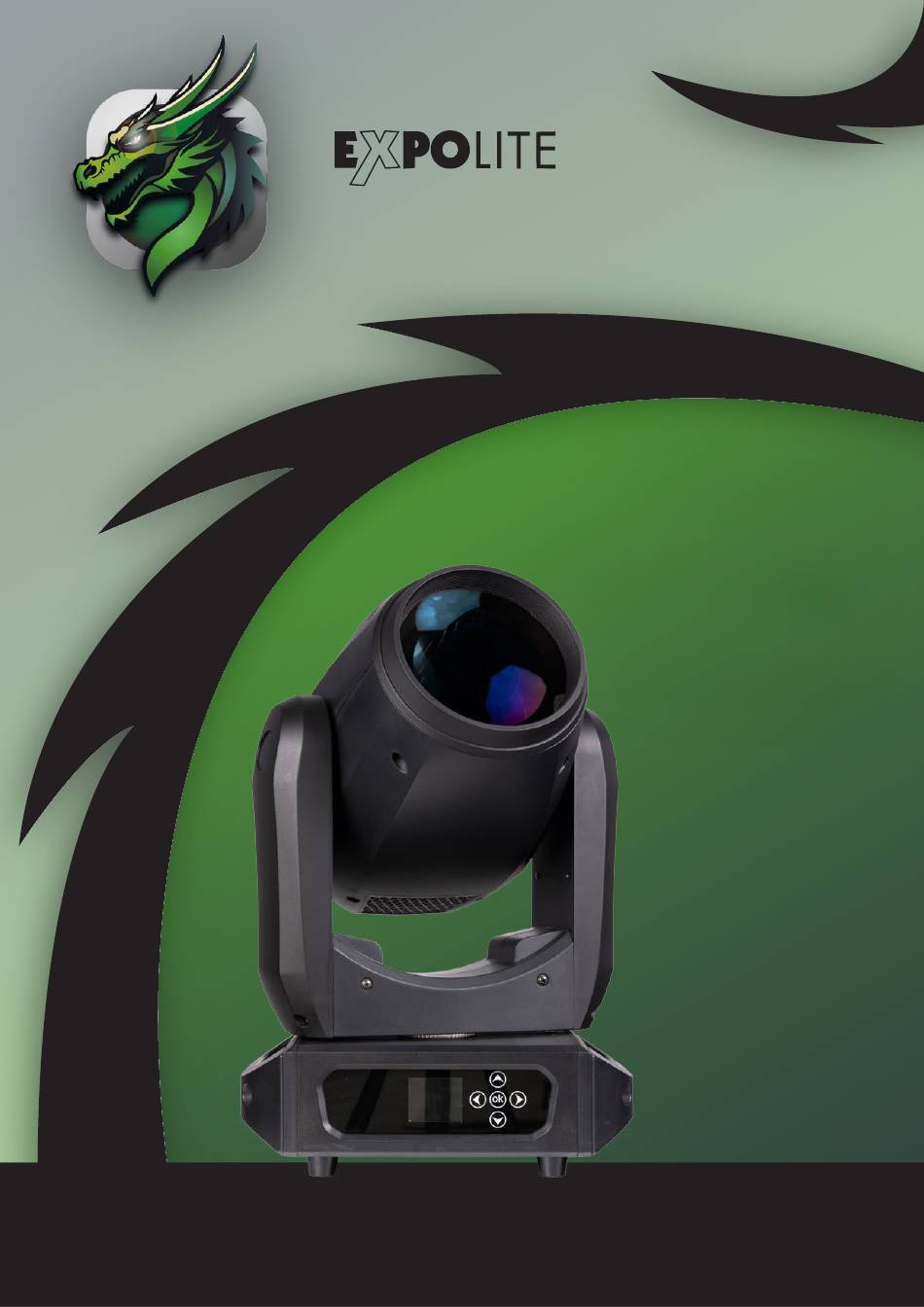

- Page 1 MOVING HEAD D R A G O N B E A M 1 5 0 ENDLESS TILT DUAL OVERLAPPING PRISM LINEAR FROST M A N U A L...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE SAFETY INFORMATION INSTALLATION SETUP AND CONFIGURATION OPERATION MENU DMX PROTOCOL APPERANCE TECHNICAL DATA TROUBLE SHOOTING NOTES All specifications are subject to change without notice. -
Page 3: Safety Information
THANK YOU FOR PURCHASING OUR PRODUCTS Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the outer and inner packaging for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. -
Page 4: Installation
2. INSTALLATION A fixture can be placed on the stage floor directly or mounted on a truss at any direction without impacting its performance. Please use a safety cord, which can support 10 times the weight of the fixture, while mounting it on the truss. -
Page 5: Dmx Terminator
DMX control connection Connection between controller and fixture and between one fixture and another must be made with a twin- screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the fixture is via cannon 3 pin (which are included with the fixture) or 3 pin XLR plugs and sockets. -
Page 6: Auxiliary Tool
DMX Address: Setup the DMX address. System Settings: 1. Display reverse direction: The screen can ben flipped if required. 2. Language setting: Set the system language, switch between Chinese and English. 3. Channel mode: Set the channel mode, the number of menu options indicates the number of channels. 4. -
Page 7: Operation Menu
4. OPERATION MENU 1. Address setting 2. Setting 3. Info 4. Manual 5. Status 6. DMX-Level 7. Reset 8. Exit Menu Level 1 Level 2 Level 3 Level 4 Content ADDRESS 1-512 SETTING Dis_Reve Natu/Rev1 Language Eng/Chin DMX Mode 14CH/16CH RunMode DMX/Musc/Auto DimCurve... - Page 8 Level 1 Level 2 Level 3 Level 4 Content ADDRESS 1-512 SETTING Y Hall Natu/Err X FB Natu/Err Current status of STATUS Y FB Natu/Err lamps and lanterns NTC Temp Natu/Err Return ∆ CheckGod AD SET AllTime Zero/Exec LampTime Zero/Exec Default Defa/Out/Save 0-255...
-
Page 9: Dmx Protocol
5. DMX PROTOCOL DMX Channel Value Function SHORT MODE Standard Mode (14CH) (16CH) 0-255 0-100% Pan Fine 0-255 0-100% Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Vertical non-polar rotation 0-55 Vertical-normal linear control 56-155 Vertical rotation rotation rotation: slow-> fast 156-255 Vertical reverse when the rotation is slow->... - Page 10 DMX Channel Value Function SHORT MODE Standard Mode (14CH) (16CH) Colors 69-72 Color8 73-76 Color8+Color9 77-81 Color9 82-85 Color9+Color10 86-89 Color10 90-93 Color10+Color11 94-98 Color11 99-102 Color11+Color12 103-106 Color12 107-110 Color12+Color13 111-115 Color13 116-119 Color13+Color14 120-123 Color14 124-127 Color14+Open 128-149 Open 150-202 Clockwise rotation: Fast->Slow...
- Page 11 DMX Channel Value Function SHORT MODE Standard Mode (14CH) (16CH) Gobo 143-150 Shake from slow to fast: Gobo 12 151-158 Shake from slow to fast: Gobo 13 159-201 Open 202-227 Clockwise rotation: Fast->Slow 228-229 Stop 230-255 Anti-clockwise rotation: Slow->Fast Prism1 0-63 Stop 64-255...
-
Page 12: Technical Data
7. TECHNICAL DATA Electric Parameters Specifications of the light source Input Voltage: 100 V ~ 240 V AC, 50/60 Hz Light Source: 150 W whiteLED-Engine Input Power: 200 W @ 240 V Color Temperature: 7800 K ± 200 K Power Factor: PF > 0,90 Rated Life: 20.000 hours Color... -
Page 13: Light Output
Light Output Distance (m) Diameter (m) Dimensions 8. TROUBLE SHOOTING Problem Action Check the fuse on the power socket The fixture doesn’t switch on Check the lamp Make sure that the fixture’s start address is right The lamp is on but the fixture doesn’t respond to the con- troller Replace or repair the XLR signal cable Make sure the fan is working well or fans and their shields... -
Page 14: Notes
Error Messages Name Type Correction Check if wiring, optical sensor and Optical sensor error: Pan motors are normal Check if wiring, optical sensor and Tilt Optical sensor error: Tilt motors are normal Check if wiring, hall sensor and motors Pan & Tilt driver board Communication error: module1 are normal Check if wiring, hall sensor and motors... - Page 16 D R A G O N B E A M 1 5 0...
