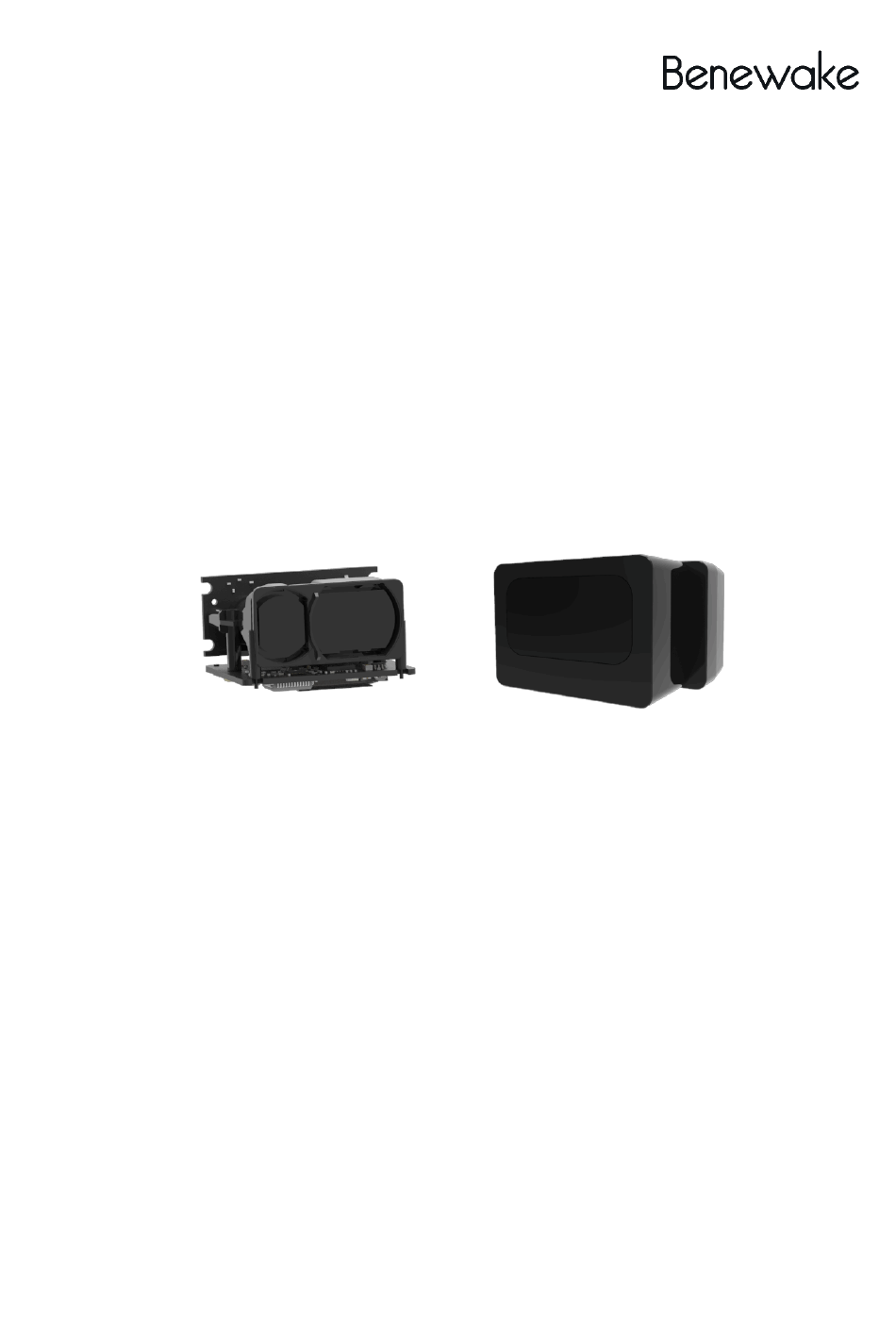

- Page 1 TFA300 Series User Manual...
- Page 2 3rd Floor, Haiguo Jiaye Sci-Tech Park, Haidian District, Beijing, China Copyright Notice This User Manual is copyright © of Benewake. Please do not modify, delete or translate the description of this manual contents without the official written permission from Benewake.
-
Page 3: Table Of Contents
Contents Laser Safety Information ................................1 Installation and Maintenance ..............................1 Product Overview ..................................... 1 Measuring principle ..................................1 Technical Specifications ................................2 Structural Appearance ................................. 3 Field of view ......................................3 Device Installation ..................................4 Mechanical installation ................................. 4 TFA300 ...................................... -
Page 4: Laser Safety Information
TFA300 series LiDAR. Measuring principle TFA300 series is a typical Pulse Time of Flight (PToF) sensor. TFA300 series emits a narrow pulse laser, which is collimated by the transmitting lens, which enters the receiving system after being reflected by the measured target and is focused on the APD detector by the receiving lens. -
Page 5: Technical Specifications
of light. Pulsed time of flight Technical Specifications Performance Parameters Model TFA300 TFA300-L 270 m @ 90% ref. 100 KLux 290 m @ 90% ref. 100 KLux 150 m @ 30% ref. 100 KLux 170 m @ 30% ref. 100 KLux Detection range ①... -
Page 6: Structural Appearance
3. Measured at a temperature of 25 ℃, 50 Hz; 4. The weight and size are typical values for reference only. For detailed tolerance parameters, please consult the technical personnel of Benewake. Structural Appearance The overall appearance of the LiDAR is as shown in the figure below:... -
Page 7: Device Installation
4. Device Installation This section introduces the mechanical installation and connection information of TFA300 series LiDAR. Mechanical installation TFA300 The TFA300 has an IP67 waterproof housing. It is recommended to directly expose the front window of the TFA300 to the air for use. Do not add an additional transparent housing to cover the window, as this may cause crosstalk due to multiple reflections and affect the distance measurement performance. -
Page 8: Connector
Excessive spacing may cause optical crosstalk, which could compromise ranging performance. The TFA300 series utilizes a laser source with a central wavelength of 905 nm. It is recommended to use materials with a transmittance greater than 90% at 905 nm to minimize the impact of laser energy loss on ranging performance. -
Page 9: Tfa300
TFA300 Cable color Definition Blue UART_Rx Brown UART_Tx White CAN_L Green CAN_H Black TFA300-L The connector model is 1.25 mm-7P, as shown in the following figure: Pin No. Definition CAN_L CAN_H Not used © 2 0 2 5 B e n ewa ke ( B e i j i n g ) C o. , L t d . · A l l r i g h ts res e r v e d · R E V : 0 5 / 2 2 / 2 0 2 5... -
Page 10: Communication Protocol
Parity None Baud rate can be set to 9600, 14400, 19200, 38400, 56000, 57600, 115200, 128000, 230400, 256000, 460800, 500000, 512000, 600000, 750000, and 921600. If other value were set, TFA300 series will set it to 115200. Data Frame Each data frame under the UART interface contains distance and signal strength and consists of 9 bytes of hexadecimal values. -
Page 11: Can Communication
- Received Frames: Supports both Standard and Extended Frames The CAN interface baud rate setting only supports commonly used baud rates: 1000kps, 500kps, 250kps, 125kps, 100kps, 50kps, 20kps. If other values are set, the TFA300 series will set it to 1000kps. Data Frame Data frames under the CAN interface consist of 6 bytes of hexadecimal values, containing measured distance and signal strength, with the remaining bytes reserved. -
Page 12: Can Networking
CAN_H and CAN_L. The TFA300 series includes a built-in 120-ohm termination resistor, disabled by default. To simplify network setup, you can enable the built-in resistor via command only on devices located at the two ends of the CAN network. -
Page 13: Common Configuration Instructions
Byte 1 Total length of the command frame in bytes Byte 2 Command identifier (unique for each function). Byte 3~N-2 Payload Command-specific parameters (variable length and interpretation). Byte N-1 Check Sum Lower 8 bits of the sum of the first Len-1 bytes Common configuration instructions Default Description... -
Page 14: Command Editing
Important: After modifying one or more parameters via configuration commands, always send the "Save Current Configuration" command to write the changes to the device. Otherwise, parameters will revert to the last saved values upon re-powering. Command editing This section describes the Command Channel of TFA300 which is used to read and set TFA300’s working parameters.
