Benewake TF-Luna-IIC Operation Instructions Manual

Lidar range sensor quick implementation and computer communication

Advertisement

Quick Links

Quick Implementation of TF-Luna-IIC and Computer
Communication Operation Instructions

1. Overview

This document enables first-time users to quickly understand the tools and methods for conducting IIC communication
tests, connect the LiDAR to PC by consulting the corresponding instruction manual, and complete product testing under the
IIC communication protocol by sending commands to obtain distance values and modify the slave's address.
This document applies to the product model: TF-Luna (IIC interface) (verify the product hardware version and
firmware version before testing).

2. Test Preparation

2.1. Tool preparation

Serial port testing tool (Serial Assistant), USBCOM2I2C converter

IIC communication test

3.

3.1. Pin Description

Note: If you are testing other hardware versions, please consult the corresponding product manual for pin definition
confirmation of the electrical interface.
Number
1
2
3
4
5
6
1
https://fr.aliexpress.com/item/32830015255.html
https://www.ebay.com/itm/UsenDz-USBCOM2I2C-USB-serial-port-to-I2C-UART-to-I2C-COM-to-I2C-USB-to-I2C-/312761534
249

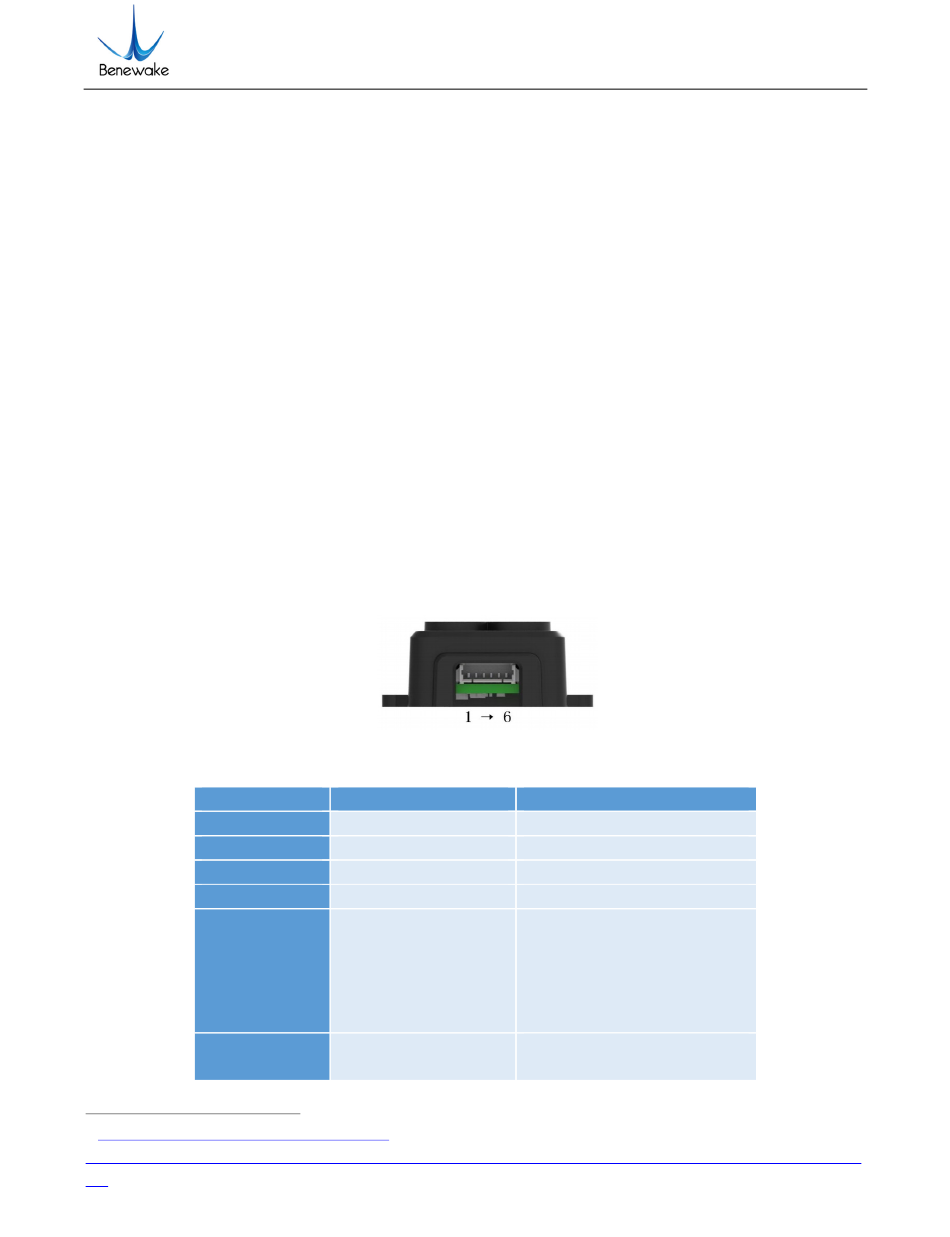

Fig.1 Pinout
Table 1 Line Sequence Description
Colour
Red
White
Green
Black
Interface Configuration
Suspended or connected to 3.3V:
Input
Use UART mode
Multiplexed Output
Benewake (Beijing) Co. Limited
1
, 4P DuPont Line, TF-Luna.
Function
+5V
RXD/SDA
TXD/SCL
GND
Grounding: Activate to IIC mode;
Multiplexed output: Switching
mode function: Switching output
