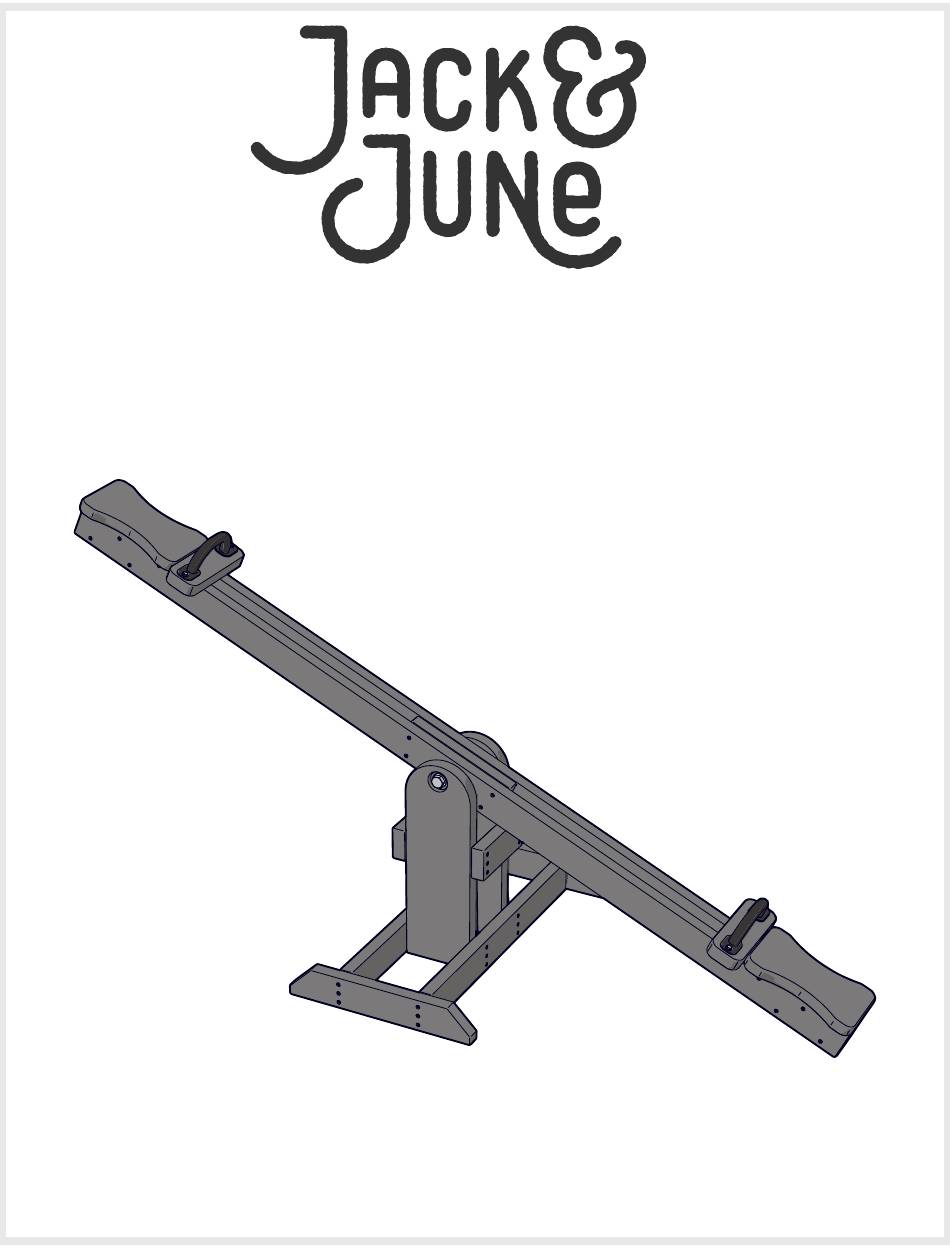

- Page 1 SEESAW JJ-SEESAW-CD 2L-8035-00 817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2023 Escalade Sports...
- Page 2 I N T R O D U C T I O N Welcome to our family of ready-to-build backyard play equipment. Jack & June playsets are designed with ease of assembly in mind and we provide these step-by-step installation instructions. After reading the information below, locate your structure site and carefully unpack parts.
-
Page 3: Consumer Information Sheet For Playground Surfacing Materials
Consumer Information Sheet for Playground Surfacing Materials The U.S. Consumer Product Safety Commission maintained at depths of 6", 9", and 12". However, it (CPSC) estimates that about 100,000 playground should be recognized that all injuries due to falls equipment-related injuries resulting from falls to the cannot be prevented no matter what surfacing mate- ground surface are treated annually in the U.S. - Page 4 S A F E T Y I N S T R U C T I O N S Teach Children: • Not to walk close to, in front of, behind, or between • Not to ride or leave bicycles or other toys in the moving items.
-
Page 5: P R E - A S S E M B L Y T I P S
P R E - A S S E M B L Y T I P S 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts. - Page 6 P A R T S L I S T ( N O T A C T U A L S I Z E ) SEESAW BEAM ASSEMBLY 2X8 SEAT 2X4 HANDLE SUPPORT CD-SS-BEAM PG-28-0009 PG-24-0114 QTY. 1 QTY. 2 QTY. 2 2x8 CENTER SUPPORT 2X4 BASE SUPPORT 2X4 BASE ENDS...
- Page 7 H A R D W A R E I D E N T I F I E R ( A C T U A L S I Z E ) 1/4” X 1-1/2” Hex Head Lag Screw #10 X 4.5” Phillips Flat Head Screw PG-HW-S030 PG-HW-L001 QTY.
- Page 8 STEP 1 DETAIL A On a clean flat surface lay Seats (#2) and Handle Supports (#3) on the ground as shown. Then center the Seesaw Beam Assembly on top. Attach with (H1) Screws as shown in Detail A. NOTE: Before securing with H1 screws make sure the seat in centered and is flush with the end of the seesaw beam.
- Page 9 STEP 2 DETAIL A Flip Step 1 assembly over and attach Handles with (H2) Lag Screws & (H4) Washers. See Detail A. NOTE: Center Handles on the Handle support before securing with Lag Bolts. STEP 3 Insert Nylon Tube (H10) into the middle hole in the Seesaw Beam Assembly (#1).
- Page 10 STEP 4 NOTE: The following step will require at least two adults. Have a helper lift one end of the Seesaw Beam Assembly while the other end rests on the ground. Then, attach (#5) 2x8 Center Supports to the Seesaw Beam Assembly with hardware as shown. NOTE: Make sure to add the (H6) Spacers in between (#5) Center Supports and (#1) Seesaw Beam Assembly.
- Page 11 STEP 5 Arrange (#6) Base Supports and (#7) Base Ends NOTE: Make sure to install the (#7) Base around the (#5) Center Supports as shown. End screws first as shown in illustration. STEP 6 Have a helper hold the Seesaw assembly while you attach the (#7) Base Ends to the (#6) Base Supports with six (H3) Screws on each end as shown.
- Page 12 STEP 7 DETAIL A Attach (#8) Upper Supports to (#5) Center Supports with (#H3) Screws as shown in Detail A. NOTE: Bottom of (#8) Upper Supports should be about 7” from the top of (#6) Base Supports as shown in illustration. 7”...
- Page 13 JACK & JUNE WARRANTY 1 Year Warranty Subject to proper installa on and normal residen al use, Jack & June warrants, subject to the limita ons stated below, to the original retail purchaser, parts to be free from defects in material and workmanship for a period of one year from date of purchase.
