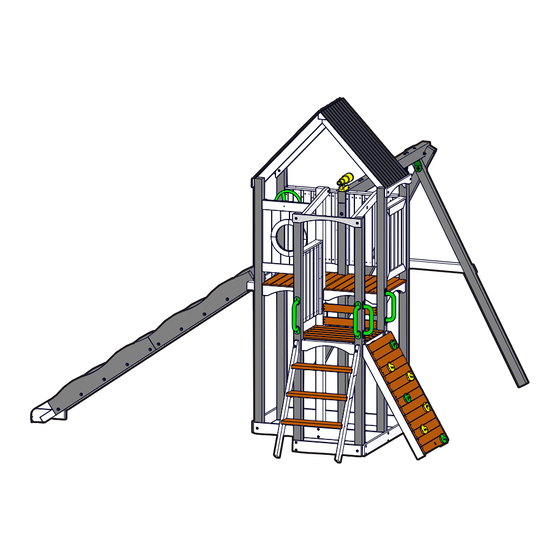

Haven II Playset
(JJ-Haven-II)
2L-7985-00
817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2021 Escalade Sports

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Haven II Playset and is the answer not in the manual?

Questions and answers

Related Manuals for Jack & June Haven II Playset

Summary of Contents for Jack & June Haven II Playset

  • Page 1 Haven II Playset (JJ-Haven-II) 2L-7985-00 817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2021 Escalade Sports...
  • Page 2 I N T R O D U C T I O N Welcome to our family of ready-to-build backyard play equipment. Jack & June playsets are designed with ease of assembly in mind and we provide these step-by-step installation instructions. After reading the information below, locate your structure site and carefully unpack parts.
  • Page 3 S A F E T Y I N S T R U C T I O N S Teach Children: • Not to walk close to, in front of, behind, or between • Not to stand in the swing seats. moving items.

  • Page 4: Hardware Identifier

    H A R D W A R E I D E N T I F I E R 3/8” x 7” HEX BOLT PG-HW-B012 3/8” x 6-1/2” HEX BOLT PG-HW-B001 3/8”-16 x 1/2” T-NUT 3/8” NYLON LOCKNUT PG-HW-N002 PG-HW-N001 (14) 3/8”...
  • Page 5 H A R D W A R E I D E N T I F I E R 5/16” x 5” HEX LAG SCREW PG-HW-L018 5/16” x 3.5” HEX LAG SCREW PG-HW-L020 1/4” x 4.5” HEX LAG SCREW PG-HW-L002 5/16” x 1.5” HEX LAG SCREW (22) PG-HW-L021 (30)
  • Page 6 H A R D W A R E I D E N T I F I E R #10 x 1.25” ROUND HEAD SCREW #10 x 1” ROUND HEAD SCREW PG-HW-S002 PG-HW-S001 #8 x 2” FLAT HEAD WOOD SCREW #8 x 1.5” FLAT HEAD WOOD SCREW PG-HW-S004 PG-HW-S003 (84)
  • Page 7 P A R T S L I S T ( N O T A C T U A L S I Z E ) 94” DECK POST 89.5” DECK POST 9 96” DECK POST PG-44-0077 PG-44-0078 PG-44-0079 83.5” DECK POST SHORT LOWER HORIZONTAL SHORT LOWER HORIZONTAL PG-44-0080...
  • Page 8 P A R T S L I S T ( N O T A C T U A L S I Z E ) LOWER HORIZONTAL SUPPORT HORIZONTAL POST BRACE LOWER HORIZONTAL SUPPORT (1 HOLE) (ONE HOLE) (2 HOLE) PG-14-0023 PG-14-0024 PG-14-0022 RAFTER...
  • Page 9 P A R T S L I S T ( N O T A C T U A L S I Z E ) UPPER ROOF ROOF CAP UPPER ROOF RAFTER RIGHT UPPER ROOF RAFTER LEFT PG-AC-0038 PG-24-0069 PG-44-0083 PG-24-0070 DECK STEP SUPPORT SIDE PANEL W/ HOLE SIDE PANEL...
  • Page 10 P A R T S L I S T ( N O T A C T U A L S I Z E ) LADDER LEG RIGHT LADDER LEG LEFT LADDER STEP PG-24-0086 PG-24-0087 PG-26-0031 Slide Upper Spacer Slide Rail PG-33-0001 Slide Base 3M-9143-00...
  • Page 11 P A R T S L I S T ( N O T A C T U A L S I Z E ) CLIMBING ROCK PG-AC-0044 Deck Panel Assembly (3 RED) 122" CLIMBING ROPE PG-DEK-027-021 (4 YELLOW) PG-AC-0043 SPRING CLIP NAME PLATE DUCTILE SWING HANGER BELT SWING (54”)
  • Page 12 P A R T S L I S T ( N O T A C T U A L S I Z E ) TELESCOPE #8 x 1.5” FLAT HEAD WOOD SCREW PG-AC-0048 PG-HW-S003 HANDLE 1/4” x 2” HEX LAG SCREW 1/4”...
  • Page 13 P A R T S L I S T ( N O T A C T U A L S I Z E ) CLIMBING WALL BOARD CLIMBING WALL BOARD CLIMBING WALL LEG CLIMBING WALL BOARD WITH NO HOLE WITH ROPE HOLE PG-24-0073 WITH ROCK HOLE PG-14-0032...

  • Page 14: Parts Required

    PARTS REQUIRED PANEL SUPPORT ( ) 8 #8X2” FLAT HEAD WOOD SCREW SIDE PANEL ( ) 4 PG-HW-S004 STEP 1: Assemble two #14 Panel Supports onto #25 Side Panel using six H21 Screws as shown. FLUSH FLUSH FLUSH FLUSH FLUSH...
  • Page 15 PARTS REQUIRED DECK END ( ) 4 #8X1.5” FLAT HEAD WOOD SCREW PG-HW-S003 (24) STEP 2: Assemble one #11 Deck End onto STEP ONE Side Panel assembly using six H20 Screws as shown. Repeat procedure STEP ONE and STEP TWO for the other Side Panel assemblies. NOTE: The back of Part 11 should be flush with the back of the Side Panel Assembly.

  • Page 16: Important Note

    PARTS REQUIRED 89.5" DECK POST (2) 1/4” x 4.5” HEX LAG SCREW LOWER HORIZONTAL PG-HW-L002 1/4” FLAT WASHER (1 HOLE) (1) SUPPORT PG-HW-W002 DECK SUPPORT (2) ASSEMBLY AID BOARD (2) 5/16” x 2.5” HEX LAG SCREW PG-HW-W003 PG-HW-L003 IMPORTANT NOTE: STEP 4: 1.
  • Page 17 PARTS REQUIRED HORIZONTAL POST BRACE (ONE HOLE) ( ) 1 5/16” x 2.5” HEX LAG SCREW 5/16” FLAT WASHER PG-HW-L003 PG-HW-W003 STEP 5: Make sure #5 facing up before you start the assembly. Assemble one #8 Horizontal Post Brace using two H17 Screw and two H11 Washer as shown.

  • Page 18: Assembly Tip

    PARTS REQUIRED 96" DECK POST (2) 1/4 x 4.5” HEX LAG SCREW 83.5" DECK POST (1) PG-HW-L002 1/4” FLAT WASHER LOWER HORIZONTAL SUPPORT PG-HW-W002 (1 HOLE) (1) 5/16” FLAT WASHER DECK SUPPORT (2) 5/16” x 2.5” HEX LAG SCREW PG-HW-W003 PG-HW-L003 ASSEMBLY AID BOARD (2) STEP 7:...
  • Page 19 PARTS REQUIRED 94" DECK POST (1) 1/4 X 4.5” HEX LAG SCREW 96" DECK POST (2) PG-HW-L002 1/4” FLAT WASHER PG-HW-W002 LOWER HORIZONTAL SUPPORT (1 HOLE) (1) DECK SUPPORT (3) 5/16” FLAT WASHER 5/16” x 2.5” HEX LAG SCREW PG-HW-W003 PG-HW-L003 ASSEMBLY AID BOARD (2) STEP 9:...
  • Page 20 STEP 10: PARTS REQUIRED With the help of other adults, Assemble one #6 Short Lower Horizontal Support using SHORT LOWER HORIZONTAL four H17 screws and four H11 Washers as shown in diagram. Make sure to locate SUPPORT (2 HOLE) and assemble #6 Lower Horizontal Support as shown in the “CORRECT” diagram. STEP 7 ASSEMBLY STEP 9 ASSEMBLY STEP 7 ASSEMBLY...
  • Page 21 STEP 11: PARTS REQUIRED With the help of other adults, Assemble one #9 Lower Horizontal Support LOWER HORIZONTAL SUPPORT using four H17 screws and four H11 Washers as shown. (2 HOLE) (1) STEP 7 ASSEMBLY STEP 7 ASSEMBLY STEP 9 ASSEMBLY STEP 9 ASSEMBLY B A C K V I E W Counterbore/bigger...
  • Page 22 PARTS REQUIRED STEP 10 ASSEMBLY 1/4 X 4.5’’ HEX LAG SCREW PG-HW-L002 1/4’’FLAT WASHER PG-HW-W002 #8x3’’FLAT HEAD WOOD SCREW PG-HW-S005 DETAIL A STEP 10 ASSEMBLY NOTE Make sure you install #16 Deck Supports at the same height as the Step 10 assembly deck supports installed before.
  • Page 23 1/4 X 4.5’’ HEX LAG SCREW 5/16” x 2.5” HEX LAG SCREW PG-HW-L002 PG-HW-L003 1/4’’FLAT WASHER PG-HW-W002 #8x3’’FLAT HEAD WOOD SCREW 5/16” FLAT WASHER PG-HW-S005 PG-HW-W003 PARTS REQUIRED DETAIL A DECK SUPPORT (2) STEP 5 ASSEMBLY STEP 5 ASSEMBLY NOTE Make sure you install #16 Deck Supports at the same height as the Step 5 assembly deck supports.

  • Page 24: Deck Assembly

    PARTS REQUIRED DECK ASSEMBLY (3) #8X1.5’’ FLAT HEAD WOOD SCREW PG-HW-S003 (36) STEP 14: Attach Deck Assemblies (#38) as shown. DETAIL A...
  • Page 25 PARTS REQUIRED DECK STEP (2) #8X1.5’’ FLAT HEAD WOOD SCREW PG-HW-S003 STEP 15: Attach Deck Steps (#15) as shown. DETAIL A NO Deck Step on this end. NO Deck Step on this end.
  • Page 26 PARTS REQUIRED DECK STEP (3) #8X1.5’’ FLAT HEAD WOOD SCREW PG-HW-S003 DECK STEP SUPPORT ( ) 2 (16) DETAIL A STEP 16: Attach Deck Steps Supports (#23) about 1 inch below deck supports and centered on the Deck posts shown. STEP 17: Attach Deck Steps (#15) as shown.

  • Page 27: Inside View

    PARTS REQUIRED STEP 2 PANEL ASSEMBLY (X3) #8X2’’FLAT HEAD WOOD SCREW PG-HW-S004 (18) STEP 18: Attach Panel Assemblies from Step 2 as shown. INSIDE VIEW 8” PANEL ASSEMBLY...
  • Page 28 PARTS REQUIRED PANEL SUPPORT (2) #8X2’’FLAT HEAD WOOD SCREW PG-HW-S004 SIDE PANEL W/ HOLE (1) STEP 19: Attach Panel Supports (#14) to Side Panel with Hole (#24) as shown. FLUSH FLUSH FLUSH FLUSH...
  • Page 29 PARTS REQUIRED STEP 2 PANEL ASSEMBLY (1) #8 x 2” FLAT HEAD WOOD SCREW PG-HW-S004 STEP 19 PANEL ASSEMBLY(1) (12) STEP 20: Attach Panel Assembly with Hole from Step 19 and one Panel Assembly from Step 2 as shown. 94” Deck Post INSIDE VIEW 96”...
  • Page 30 PARTS REQUIRED HORIZONTAL POST BRACE(ONE HOLE) (2) LOWER ROOF RAFTER (1) LOWER ROOF RAFTER PG-HW-L003 PG-HW-W003 (W/ROPE HOLE) (1) STEP 21: Attach parts 8,10,12 & 13 as shown. 1.75”...
  • Page 31 PARTS REQUIRED ROOF CAP (1) #8X2’’FLAT HEAD WOOD SCREW UPPER ROOF RAFTER RIGHT (1) PG-HW-S004 UPPER ROOF RAFTER LEFT (1) STEP 22: Attach Rafters (#19 & #20) to Roof Cap (#18) as shown.
  • Page 32 PARTS REQUIRED UPPER ROOF RAFTER RIGHT (1) #8X2’’FLAT HEAD WOOD SCREW UPPER ROOF RAFTER LEFT (1) PG-HW-S004 STEP 23: Attach remaining Rafters (#19 & #20) to Roof Cap (#18) as shown.

  • Page 33: Top View

    PARTS REQUIRED STEP 24: Lay Lower Roof on a clean and flat surface. ROOF PG-AC-0038 STEP 25: Use the illustrations below to locate where to drill the holes. Using a 1/8” drill bit drill 6 holes total. Repeat steps 27 & 28 for the second Lower roof.
  • Page 34 PARTS REQUIRED ROOF PG-AC-0038 #10 FLAT WASHER #10 X 1.25’’ ROUND HEAD SCREW PG-HW-W001 PG-HW-S002 (12) (12 ) STEP 26: Attach Roof #22 as shown.
  • Page 35 PARTS REQUIRED Roof assembly from the previous 5/16’’ x 2.5’’HEX LAG SCREW 5/16’’FLAT WASHER step. PG-HW-L003 PG-HW-W003 STEP 27: Attach Roof Assembly from the NOTE: Roof not shown for clarity. previous step as shown.
  • Page 36 PARTS REQUIRED LADDER LEG RIGHT (1) #8 X 2’’ 1/2 PH FLAT HD WDSCRW LADDER LEG LEFT (1) PG-HW-S009 (12) LADDER STEP (3) STEP 28: Center and attach the Ladder Steps #32 to the Right #30 & Left #31 Legs using two H22 as shown.
  • Page 37 PARTS REQUIRED LADDER ASSEMBLY (Assembled in previous page) 5/16’’ X 3’’ HEX LAG SCREW 5/16” FLAT WASHER PG-HW-L004 HANDLE PG-HW-W003 PG-AC-0049 STEP 29: Attach the Ladder Assembly to the Corner 1/4” x 2” HEX LAG SCREW 1/4” Washer Posts using two H11 & H15 as shown. PG-HW-L022 PG-HW-W002 NOTE...
  • Page 38 PARTS REQUIRED Slide Base Block PG-26-0032 Slide Side 5/16’’ x 2.5’’HEX LAG SCREW 5/16’’FLAT WASHER PG-23-0002 PG-HW-L003 PG-HW-W003 STEP 30: Attach (#36) Slide Base Block to (#38) Slide Side with H11 & H17 as shown. Note angle direction...

  • Page 39: Side View

    PARTS REQUIRED 2X - SLIDE SIDE ASSEMBLY (Assembled in previous page) 5/16’’ x 3.5’’HEX LAG SCREW 5/16’’FLAT WASHER PG-HW-L020 PG-HW-W003 STEP 31: Attach two Slide Side assemblies to inside of Corner Posts with H11 & H17 as shown. 1.75” From center Flush hole to deck board.
  • Page 40 PARTS REQUIRED SLIDE SPACER #8X2” FLAT HEAD WOOD SCREW PG-23-0004 PG-HW-S004 STEP 32: Attach (#37) Slide Spacer to Slide Side assemblies with H21 as shown. DETAIL A...
  • Page 41 PARTS REQUIRED 2X - SLIDE UPPER SPACER SLIDE SUPPORT CENTER 5/16’’ x 3.5’’HEX LAG SCREW 5/16’’FLAT WASHER PG-HW-L020 PG-HW-W003 SLIDE BASE BLOCK CENTER STEP 33: DETAIL A Place Support Center (#57) and one Upper Spacer (#56) on each side. Center the parts in between the Slide Sides and attach with (H11) &...
  • Page 42 PARTS REQUIRED SLIDE PLASTIC SHEET 3M-9144-00 #10 FLAT WASHER #10 X 1.25’’ ROUND HEAD SCREW PG-HW-W001 PG-HW-S002 (3 ) STEP 34: NOTE: Leave about 1/2” from the top end of the slide sides when Attach (#35) Slide Sheet to Slide Side assemblies attaching (#35).
  • Page 43 STEP 35: Secure middle section of the Slide Sheet (#35) to the Slide Side assemblies with #8X2” FLAT HEAD WOOD SCREW PG-HW-S004 H21 as shown. ( 6) DETAIL A...
  • Page 44 STEP 36: Secure Bottom section of (#35) Slide Sheet to Slide Side assemblies and Slide Spacer with screws and Washers as #10 FLAT WASHER #10 X 1.25’’ ROUND HEAD SCREW PG-HW-W001 PG-HW-S002 shown. (6 )
  • Page 45 PARTS REQUIRED Slide Rail 3M-9143-00 5/16” x 1.5” HEX LAG SCREW 5/16” FLAT WASHER PG-HW-W003 PG-HW-L021 (20) (20) STEP 37: Attach Slide Rails (#33) to Slide Sides with Lag Screw and Washer as shown. 6- 5/6”...
  • Page 46 CLIMBING WALL LEG (2) CLIMBING WALL BOARD WITH ROCK HOLE (6) CLIMBING WALL BOARD WITH NO HOLE (6) #8 x 2” FLAT HEAD WOOD SCREW CLIMBING WALL BOARD WITH ROPE HOLE (1) PG-HW-S004 (52) STEP 38: On a flat surface lay two (#49) Climbing Wall Leg and attach six each of the (#50) &...
  • Page 47 3/8”-16 x 1/2” T-NUT 3/8”-16 x 1/2” T-NUT PG-HW-N002 PG-HW-N002 CLIMBING WALL (From previous step) CLIMBING WALL (From previous step) STEP 39: Flip Climbing Wall assembly over and attach the T-Nuts H6 to Wall Boards with holes. Lightly tap with a rubber mallet until T-nut is secure on the board.

  • Page 48: Flat Washer

    Rock Red Rock Yellow #10 x 1.25” ROUND HEAD SCREW 3/8” x 1” SOCKET HEAD SCREW PG-AC-0044 PG-AC-0044 PG-HW-S002 PG-HW-B008 STEP 40: Flip Climbing Wall assembly over and attach (#44) #10 FLAT WASHER PG-HW-W001 Rocks to Wall Boards with holes. NOTE: Socket head screw H5 will screw into the T-nut assembled in the previous step.
  • Page 49 CLIMBING WALL ASSEMBLY WITH ROCKS (Completed in previous page) 5/16” x 3” HEX LAG SCREW PG-HW-L004 PG-HW-W003 NOTE Top of Climbing Wall should be at STEP 41: the same height as the (#16) Deck Attach the Climbing Wall Assembly to the Corner Supports as shown.
  • Page 50 1/4” x 2” HEX LAG SCREW CLIMBING WALL BOARD #8 x 2” FLAT HEAD WOOD SCREW 1/4” Washer PG-HW-L022 PG-14-0032 PG-HW-S004 PG-AC-0049 PG-HW-W002 STEP 42: Attach (#50) Wall Board with H21 Screws as NOTE shown, then attach (#52) Handles to Corner Posts Bottom of Handles should be 1-1/2”...
  • Page 51 PARTS REQUIRED 6.5” SWING BEAM (1) NAME PLATE (1) 3/8” X 5-3/4”HEX BOLT PG-HW-B024 Ductile Swing Hanger (4) 3/8’’NYLON LOCKNUT 3/8’’FLAT WASHER STEP 43: #10 X 1" ROUND HEAD SCREW PG-HW-N001 PG-HW-W004 PG-HW-S001 Attach (#43) & (#47) to Swing Beam as (16) (4）...
  • Page 52 PARTS REQUIRED SWING BEAM (1) SWING BEAM LEG (2) 3/8” X 7”HEX BOLT 3/8’’x 6-1/2’’ HEX BOLT PG-HW-B012 PG-HW-B001 SWING BEAM BRACE (1) (1） STEP 44: Attach (#27) & (#29) to Swing Beam as 3/8” X 5-3/4”HEX BOLT shown. PG-HW-B024 (1）...
  • Page 53 PARTS REQUIRED SWING BEAM SUPPORT (1) 3/8” X 5-3/4”HEX BOLT PG-HW-B024 SWING BEAM BRACE (1) 3/8’’NYLON LOCKNUT PG-HW-N001 3/8” X 3-3/4”HEX BOLT PG-HW-B025 (1） 5/16’’FLAT WASHER 3/8’’FLAT WASHER 3/8” x 5” HEX LAG SCREW PG-HW-W003 PG-HW-W004 PG-HW-L010 STEP 45: 5/16’’ X 3’’ HEX LAG SCREW Attach Swing Beam Assembly as shown.
  • Page 54 PG-AC-0050 5/16” x 2” HEX LAG SCREW 5/16” FLAT WASHER PG-HW-L007 PG-HW-W003 STEP 46: Attach (#53) Wheel to Panel as shown.
  • Page 55 #8 x 1.5” FLAT HEAD WOOD SCREW PG-HW-S003 PG-AC-0048 STEP 47: Attach (#51) to Swing Beam as shown.
  • Page 56 122" CLIMBING ROPE PG-AC-0043 STEP 48: Insert rope up through the hole on the Lower Roof Rafter (#13) and tie a double knot on the inside to secure that end of the rope. STEP 49: Tie a knot approximately every two feet along each rope then insert ropes down through the holes in the bottom of the Climbing Wall assembly.
  • Page 57 STEP 50: Attach Belt swing Spring Clips (#48) to the Ductile Hangers (#47). Congratulations! You have completed the assembly. BELT SWING (54”) PG-AC-0045...
  • Page 58 Consumer Information Sheet for Playground Surfacing Materials The U.S. Consumer Product Safety Commission maintained at depths of 6", 9", and 12". However, it (CPSC) estimates that about 100,000 playground should be recognized that all injuries due to falls equipment-related injuries resulting from falls to the cannot be prevented no matter what surfacing mate- ground surface are treated annually in the U.S.
  • Page 59 JACK & JUNE WARRANTY 1 Year Warranty Subject to proper installa on and normal residen al use, Jack & June warrants, subject to the limita ons stated below, to the original retail purchaser, all chain, seats, swing hangers, hardware, metal braces, ropes and accessories to be free from defects in material and workmanship for a period of one years from date of purchase.
