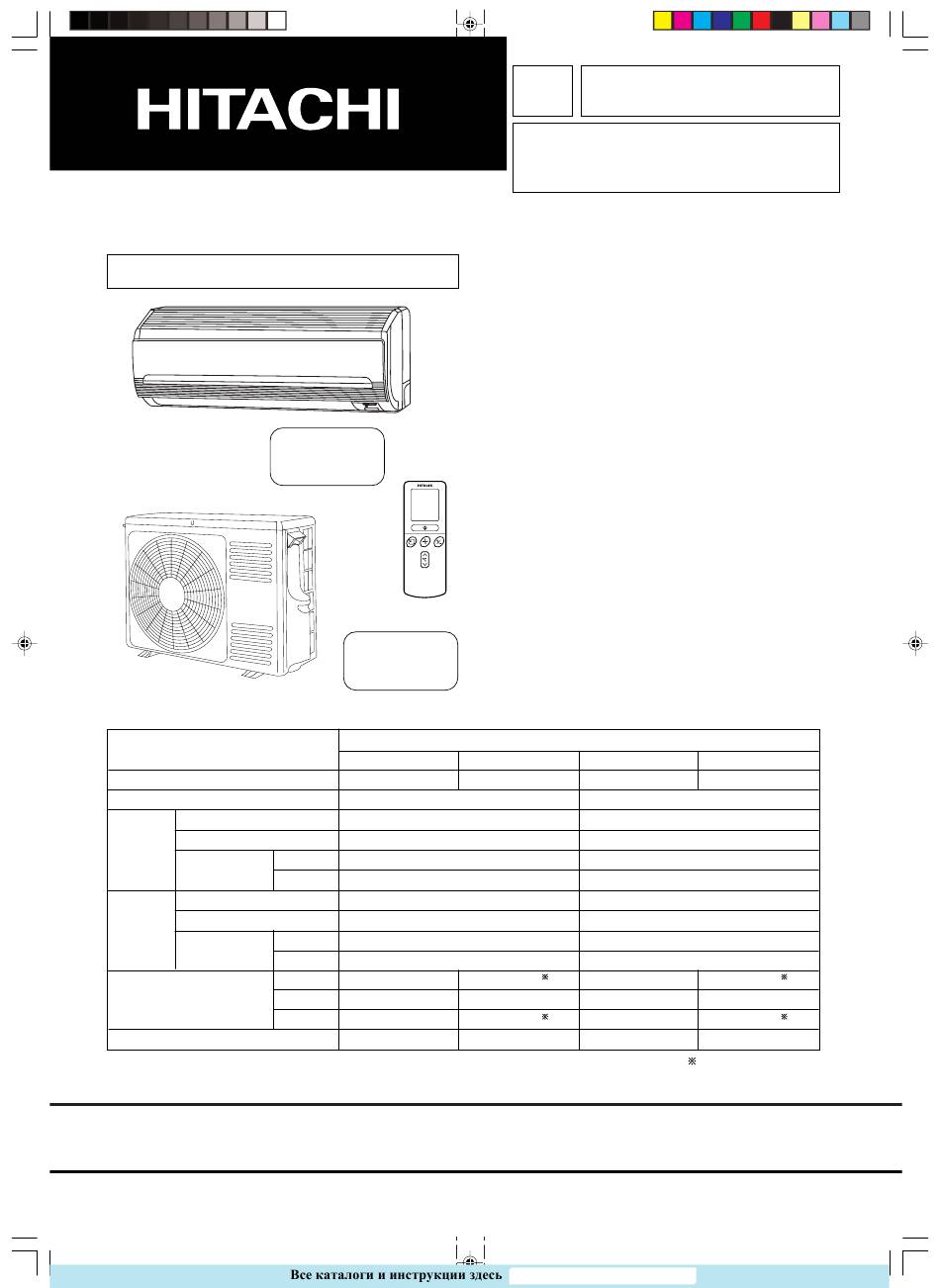

SERVICE MANUAL
TECHNICAL INFORMATION
FOR SERVICE PERSONNEL ONLY
SPECIFICATIONS
TYPE
MODEL
POWER SOURCE
TOTAL INPUT
TOTAL AMPERES
COOLING
CAPACITY
TOTAL INPUT
TOTAL AMPERES
HEATING
CAPACITY
DIMENSIONS
(mm)
NET WEIGHT
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
ROOM AIR CONDITIONER
Hitachi Household Appliances(Wuhu) Co.,Ltd.
RAS_25_35_AW_000covere
INDOOR UNIT
RAS-25YH5
1 PHASE, 50 Hz, 220-230V
(W)
580 (155 ~ 1,080)
(A)
(kW)
2.50 (0.90 ~ 3.10)
(B.T.U./h)
8,530 (3,070 ~ 10,575)
(W)
790 (115 ~ 1,120)
(A)
(kW)
3.40 (0.90 ~ 4.40)
(B.T.U./h)
11,601 (3,070 ~ 15,695)
W
780
H
280
D
210
(kg)
9.5
INDOOR UNIT + OUTDOOR UNIT
1
AW
RAS-25YH5/RAC-25YH5
RAS-35YH5/RAC-35YH5
REFER TO THE FOUNDATION MANUAL
SPECIFICATIONS ------------------------------------------------------------------- 4
HOW TO USE ----------------------------------------------------------------------- 6
CONSTRUCTION AND DIMENSIONAL DIAGRAM --------------------- 15
MAIN PARTS COMPONENT --------------------------------------------------- 17
WIRING DIAGRAM ---------------------------------------------------------------- 19
CIRCUIT DIAGRAM --------------------------------------------------------------- 21
PRINTED WIRING BOARD LOCATION DIAGRAM --------------------- 27
BLOCK DIAGRAM ----------------------------------------------------------------- 31
BASIC MODE ----------------------------------------------------------------------- 33
REFRIGERATING CYCLE DIAGRAM --------------------------------------- 45
DESCRIPTION OF MAIN CIRCUIT OPERATION ----------------------- 46
TROUBLE SHOOTING ----------------------------------------------------------- 77
PARTS LIST AND DIAGRAM ------------------------------------------------ 105
DC INVERTER (WALL TYPE)
INDOOR UNIT
OUTDOOR UNIT
RAC-25YH5
3.11-2.97
3.99-3.82
750 (+91)
548
288 (+47)
35
2006.02.09, 18:12
:
https://splitsystema48.ru/instrukcii-po-ekspluatacii-kondicionerov.html
NO. 0011E
CONTENTS
OUTDOOR UNIT
1 PHASE, 50 Hz, 220-230V
980 (155 ~ 1,300)
4.69-4.49
3.50 (0.90 ~ 4.00)
11,942 (3,070 ~ 13,650)
1010 (115 ~ 1,300)
4.84-4.63
4.20 (0.90 ~ 5.00)
14,331 (3,070 ~ 17,745)
780
750 (+91)
280
548
210
288 (+47)
9.5
35
After installation
