Lasko Platinum 4910 Manual

Table of Contents

Contents

1 OPERATION
2 MULTI-DIRECTIONAL INSTRUCTIONS
3 MAINTENANCE
4 GENERAL SAFETY INFORMATION
5 Documents / Resources
- 5.1 Download manual

OPERATION

(Figure 1)
OPERATION
The Fan is operated by the controls located on the front of the unit.

Carefully remove the Fan from the bag and the carton.
Place the Fan on a firm, level surface.

Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/ or hardwood floors.

Plug the cord set into a 120 V~ electrical outlet. Be sure plug fits tightly in outlet.
Turn the Fan ON by pressing the Power Button (). The Power Button will light when the unit is turned on.
Upon turning the Fan ON, the unit will be on HIGH.
Pressing the Power Button a second time will set the Fan to MEDIUM.
Pressing the Power Button a third time will set the Fan to LOW.
To turn the Fan OFF, press the Power Button ( ) and unplug the unit from the electrical outlet. The power light will go out when the unit is off.

OSCILLATION FUNCTION: This function will work in any Fan speed. Pressing the Oscillation Button ()will allow the Fan to oscillate back and forth. To stop the oscillation, press the Oscillation Button once more. The Oscillation Button will light when this function is in use.

MULTI-DIRECTIONAL INSTRUCTIONS

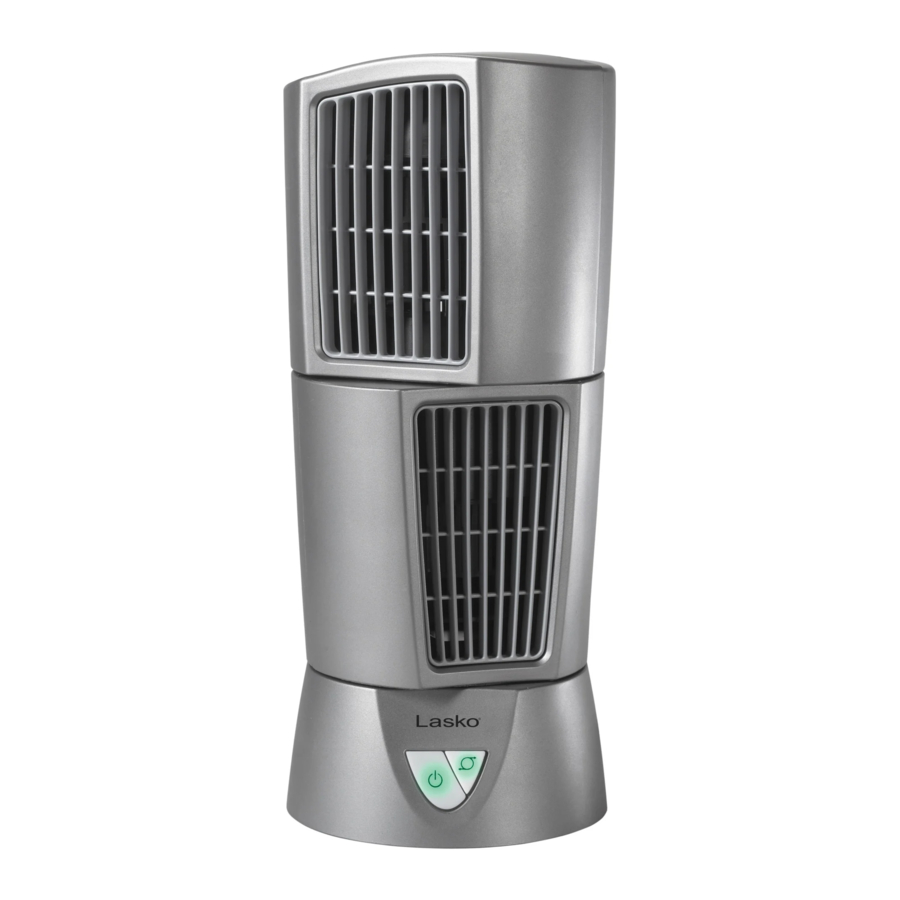

(Figure 2)
The top half of the Fan can be manually turned a different direction than the bottom half of the Fan. The oscillation function will work with the top half of the fan facing any direction.
MULTI-DIRECTIONAL INSTRUCTIONS

Hold the Base and the Bottom Fan stationary.
Grasp the Top Fan and turn it to the desired position.

DO NOT ATTEMPT TO TURN THE FAN BEYOND THE POINT OF RESISTANCE. THIS WILL DAMAGE THE FAN.

MAINTENANCE

ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING.

DO NOT IMMERSE FAN IN WATER!

CLEANING: Clean the Fan intake and exhaust openings with the vacuum brush attachment on your vacuum cleaner. This will remove dirt and lint that may accumulate over time. DO NOT ATTEMPT TO TAKE APART FAN. Clean the body of the Fan with a soft cloth.

Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they may damage the Fan. NEVER use ALCOHOL OR SOLVENTS.

SERVICING: All other servicing, with the exception of general user maintenance, should be performed by an authorized service representative. Call 1-800-233-0268, Monday through Friday, between the hours of 8:00AM and 5:00pm EST for the location of your nearest service center.

STORAGE: Store the Fan, with these instructions, in the original carton in a cool, dry place.

GENERAL SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
This Fan is for residential use only.
It is not intended to be used in commercial or industrial settings.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

Read all instructions before using Fan.
Make certain that the power source conforms to the electrical requirements of the Fan.
Use this Fan only as described in this manual. Any other usenot recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
To reduce the risk of personal injury and electric shock, the Fan shouldnot be played with or placed where small children can reach it.
Unplug power cord before installing, servicing, or moving the Fan.

DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.
This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres.
DO NOT use Fan in or near a window. Rain may create an electrical hazard.

THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS PLUG IS INTENDED TO FIT IN A POLARIZED OUTLET ONLY ONE WAY. MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. IF THE PLUG DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE. WARNING: THIS PLUG IS A SAFETY FEATURE. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY, DO NOT REMOVE, REPLACE, REPAIR OR TAMPER WITH THE ORIGINALLY SUPPLIED PLUG. IF THE FAN DOES NOT FUNCTION PROPERLY, IT MAY BE DUE TO THE SAFETY DEVICE INCORPORATED IN THIS PLUG. RETURN TO AN AUTHORIZED SERVICE CENTER OR CALL 800-233-0268, MONDAY - FRIDAY, BETWEEN 8:30 AM AND 4:00 PM EST. IF THE PLUG WARNING LABEL IS MISSING OR DAMAGED, CALL THE TOLL FREE NUMBER FOR A REPLACEMENT LABEL.
Where possible, avoid the use of extension cords. If they must be used, minimize the risk of overheating by ensuring that they are UL listed. Never use a single extension cord to operate more than one Fan.
Do not operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner. Return Fan to authorized service facility for examination, electrical or mechanical adjustment or repair.
Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or damage the Fan. Do not block or tamper with the Fan in any manner while it is in operation.
Always place the Fan on a stable, flat, level surface when operating, to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run Power Cord under carpeting. Do not cover Power Cord with throw rugs, runners, or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container.
Do not use Fan outdoors.
