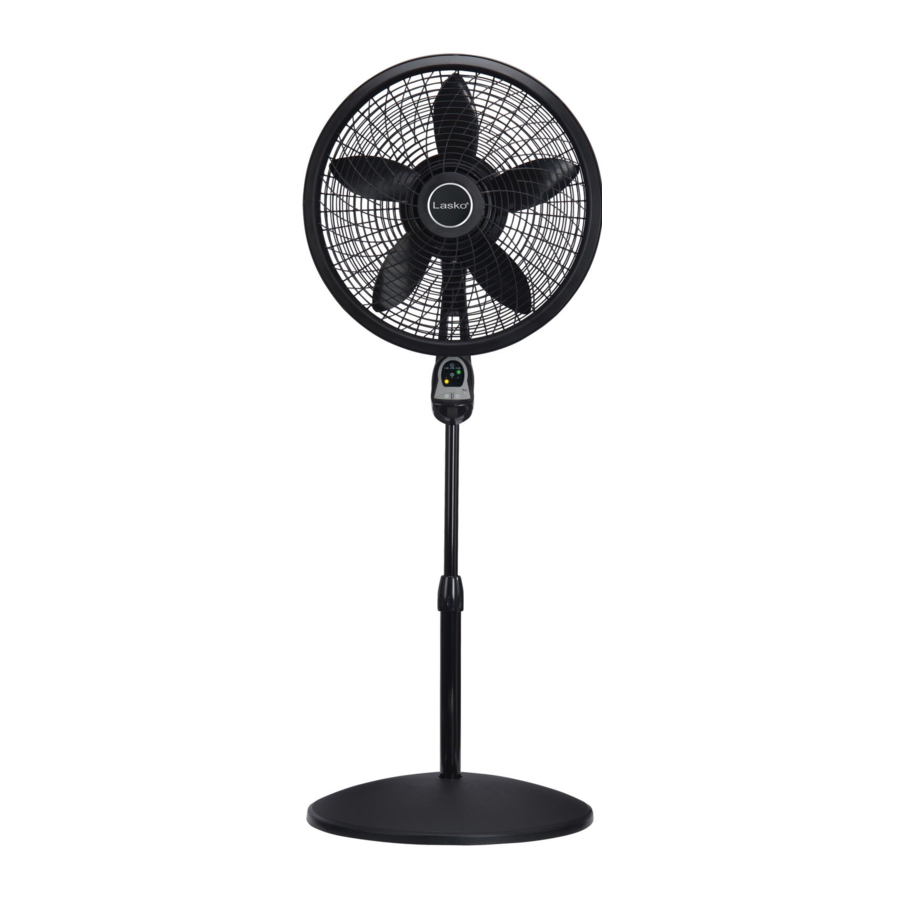

Lasko CYCLONE 1843 - PEDESTAL FAN Manual

ASSEMBLY

PIPE ASSEMBLY

1. Take pipe assembly out of carton as shown. (Figure 1)
   Loosen Height Adjustment Nut turning counter clockwise. (Figure 2)
   Raise Extension Pipe. (Figure 3)
   Tighten Height Adjustment Nut turning clockwise. (Figure 4)


STAND ASSEMBLY

1. With a twisting motion, insert the end of the large diameter pipe into hole in Base. (Figure 5) Turning pipe while pushing will assure pipe is fully seated in Base.

2. For Height Adjustment:
   1. Loosen Height Adjustment Nut.
   2. Raise or lower Extension Pipe to desired height.
   3. Tighten Height Adjustment Nut.

HEAD ASSEMBLY

1. Place Head Assembly with Collar onto Extension Pipe.

2. Holding Extension Pipe firmly, twist Head Assembly downward until seated on Extension Pipe.

When making height adjustment after head assembly is attached, ALWAYS support extension pipe with one hand, as loosening height adjustment nut may otherwise cause rapid fall of extension pipe and head assembly.

BLADE AND GRILL ASSEMBLY

1. Tilt Head Assembly back. Put Rear Grill on Motor. (Figure 7) Align tab of Plastic Rear Grill with groove on top of front Motor cover.

2. Fully seat Rear Grill and secure with Plastic Nut turning Clockwise. Slide Blade onto Motor Shaft.

3. To secure Blade, screw Spinner onto Shaft Counter Clockwise until tight on Blade hub.

4. With fan head in upright position, align Ornament of Front Grill so it is horizontal and right side up. By starting with the top of the grill and working down, insert Snaps on Rear Grill through Slots in Front Grill.


OPERATION

This Fan may be operated by the Manual Controls located on front of the unit (shown in Figure 13) or by the Remote Control (shown in Figure 12).

1. Place the Fan on a firm and level surface.
2. Plug the cord set into a 120 volt outlet.
   Be sure that the plug fits tightly into outlet. When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater.
3. Apply power to the Fan by pushing the Power Button ().
4. FAN SPEED: You may now adjust the fan speed to the desired level, 1 (Low), 2 (Medium), or 3 (High) by pressing the Fan Speed Button ().
5. TIMER FUNCTION: This fan is equipped with a timer. The timer can be set for 1, 2, or 4 hours. Continue pressing the Timer Button () to reach the desired time setting. To cancel timer, press Timer Button () until lights are extinguished.
6. After turning the Fan off, unplug the unit from the electrical outlet.

OSCILLATION: Push down oscillation knob on motor housing to make fan head move from side to side.

REMOTE CONTROL

1. Install batteries (not supplied) as shown in Figure 12. The battery is size "AAA".

2. The Remote Control Power Button is labeled as ().
3. All the functions performed with the Remote Control work identically to the Manual Controls.
4. Do not mix old and new batteries. Do not mix alkaline, standard (carbonzinc) or rechargeable (nickel- cadmium) batteries.
5. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a probable cause and solution:

1. Be sure the power cord is plugged into a working electrical outlet.

If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.

To reduce the risk of electrical shock and fire please observe the following instructions:

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Fan in or near water.
• Disassembled grills may be immersed to be cleaned with a mild detergent and water. Wipe all other parts with soft cloth moistened with water and mild detergent only. DRY ALL PARTS COMPLETELY BEFORE REASSEMBLING. After any maintenance or servicing, completely reassemble unit as described in this instruction manual before reconnecting to the power supply.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.
LUBRICATION: Motor is permanently lubricated.

CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@laskoproducts.com
Our Customer Service team is available to assist you with product questions, service center locations, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Please do not return product to place of purchase.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location)
www.laskoproducts.com
