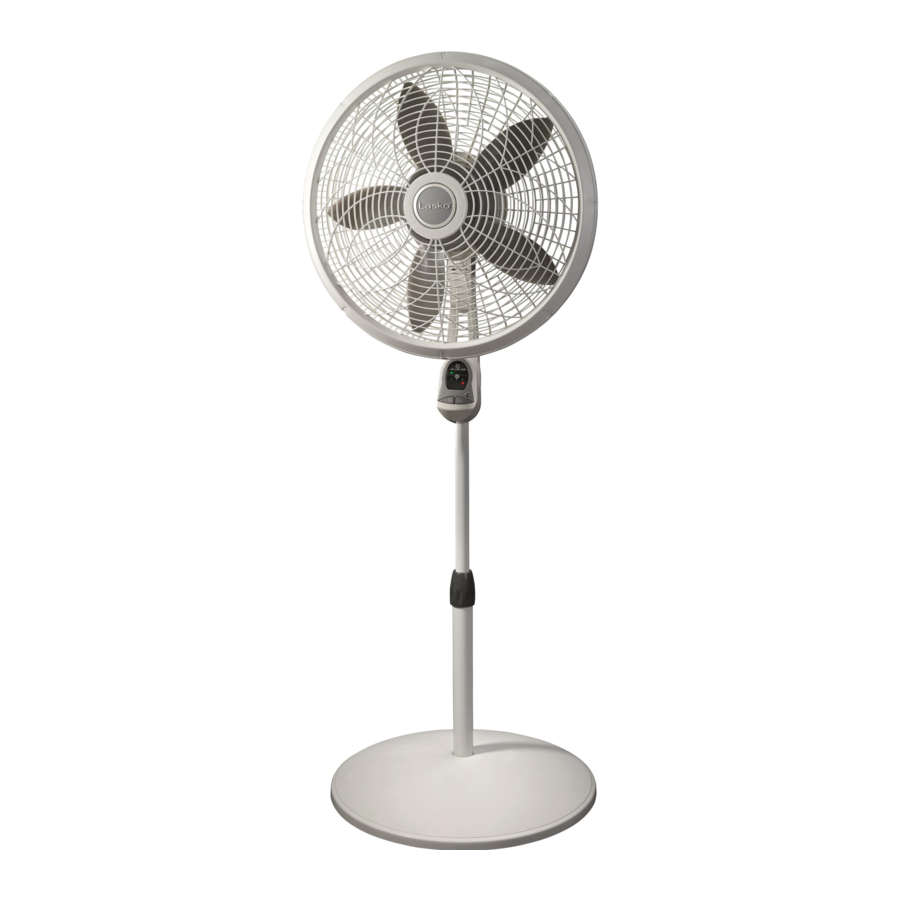

Lasko 1850/1880/1885 - Pedestal Fan Manual

Parts Included

Parts Overview

Assembly

(Quick Assembly Video: www.lasko.com/how-to)

  1. Assemble Fan Head
  2. Twist Pipe Down into Base
  3. Loosen Nut, Extend Pipe Up, Tighten Nut
  4. Twist Head Assembly down onto Pipe

Oscillation

Push down Oscillation Knob on motor housing to make Fan Head move from side to side.

Tilt

To adjust direction of air, simply power Off and tilt the Head of the Fan.

Controls


Power Button
Turn Fan ON/OFF by pressing the Power Button.


Fan Speed Button
Fan Speed can be adjusted to 1 (low), 2 (medium), or 3 (high).


Timer Button
The timer can be set up to 4 hours. Continue pressing the Timer Button to reach the desired time setting.

REMOTE CONTROL

  1. Install two "AAA" batteries (not included).
  2. Do not mix old and new batteries. Do not mix al ka line, standard (carbon-zinc) or rechargeable (nickel-cad mi um) batteries.
  3. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
  4. Always purchase the correct size and grade of battery most suitable for the intended use.
  5. Replace all batteries of a set at the same time.
  6. Clean the battery contacts and also those of the device prior to battery installation.
  7. Ensure the batteries are installed correctly with regards to polarity (+ and -).
  8. Remove batteries from equipment that is not to be used for an extended period of time.
  9. Remove used batteries promptly.

If you lose your remote control, please call Customer Service to order a replacement at (800) 233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.

MAINTENANCE


To reduce the risk of electrical shock and fire please observe the following instructions:

  • Always unplug the cord before moving, servicing or cleaning.
  • NEVER place the Fan in or near water.
  • Disassembled grills may be immersed to be cleaned with a mild detergent and water. Wipe all other parts with soft cloth moistened with water and mild detergent only. DRY ALL PARTS COMPLETELY BEFORE REASSEMBLING. After any maintenance or servicing, completely reassemble unit as described in this instruction manual before reconnecting to the power supply.
  • NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a list of probable causes and solutions:
Be sure the power cord is plugged into a working electrical outlet.
SERVICING: For servicing, other than general user maintenance, please contact Customer Service at (800) 233-0268, Monday through Friday, from 8am-5pm Eastern.
STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.
LUBRICATION: Motor is permanently lubricated.

IMPORTANT SAFETY INSTRUCTIONS


When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:
Read all instructions before using this Fan.

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
shock hazard ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.
shock hazard BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source.
The Blue Plug on your Lasko Fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or tamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.
shock hazard THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.

  • AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard.
  • DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.
  • ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning.
  • NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur.
  • DO NOT block, cover or obstruct air flow to or from the Fan while in operation.
  • DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.
  • DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
  • NEVER use a single extension cord to operate more than one Fan or other electrical device.
  • DO NOT use this Fan if it has been damaged or is not functioning properly.
  • Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.
  • Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan.
  • THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
  • THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.

Register Your Product Today
www.lasko.com/product-registration/

You will benefit from:

  • Efficient and enhanced support
  • Future product updates

CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@lasko.com
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product).
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location)
www.lasko.com
