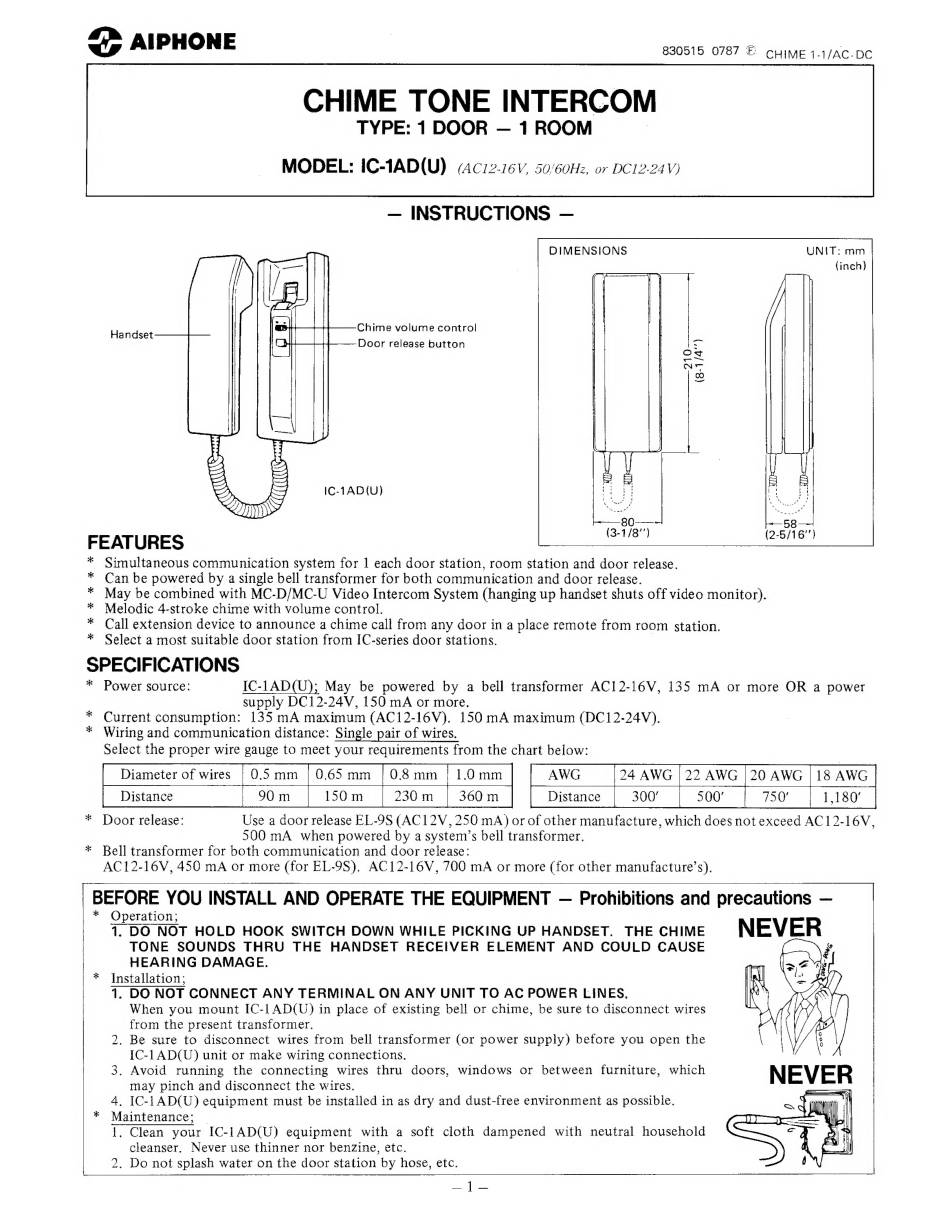

Aiphone IC-1AD Instructions

<> AIPHONE
830515 0787 ©. CHIME 1-1/AC. DC
CHIME TONE INTERCOM
TYPE: 1 DOOR — 1 ROOM
MODEL: IC-1AD(U) /4C12-16V, 50/60Hz, or DC12-24V)
— INSTRUCTIONS —
DIMENSIONS UNIT: mm
(inch)
Chime volume control
Door release button
IC-1AD(U)
SOs
(3-1/87")
FEATURES
Simultaneous communication system for 1 each door station, room station and door release.
Can be powered by a single bell transformer for both communication and door release.
May be combined with MC-D/MC-U Video Intercom System (hanging up handset shuts off video monitor).
Melodic 4-stroke chime with volume control.
Call extension device to announce a chime call from any door in a place remote from room station.
Select a most suitable door station from IC-series door stations. |
SPECIFICATIONS
* Power source: IC-IAD(U); May be powered by a bell transformer AC12-16V, 135 mA or more OR a power
supply DC12-24V, 150 mA or more.
* Current consumption: 135 mA maximum (AC12-16V). 150 mA maximum (DC12-24V).
* Wiring and communication distance: Single pair of wires.
Select the proper wire gauge to meet your requirements from the chart below:
Diameter of wires | 0.5 mm | 0.65 mm | 0.8 mm | 1.0 mm | AWG 24 AWG | 22 AWG | 20 AWG | 18 AWG
Distance) 90m w0 | s0 | 750°_| 1,180
* Door release: Use a door release EL-9S (AC12V,250 mA) or of other manufacture, which does not exceed AC12-16V,
500 mA when powered by a system's bell transformer.
* Bell transformer for both communication and door release:
AC12-16V, 450 mA or more (for EL-98S). AC12-16V, 700 mA or more (for other manufacture's).
BEFORE YOU INSTALL AND OPERATE THE EQUIPMENT — Prohibitions and precautions —
* Operation;
1. DO NOT HOLD HOOK SWITCH DOWN WHILE PICKING UP HANDSET. THE CHIME NEVER
TONE SOUNDS THRU THE HANDSET RECEIVER ELEMENT AND COULD CAUSE
HEARING DAMAGE.
* Installation;
1. DO NOT CONNECT ANY TERMINAL ON ANY UNIT TO AC POWER LINES.
When you mount IC-1 AD(U) in place of existing bell or chime, be sure to disconnect wires
from the present transformer.
2. Be sure to disconnect wires from bell transformer (or power supply) before you open the
IC-1AD(U) unit or make wiring connections.
3. Avoid running the connecting wires thru doors, windows or between furniture, which
may pinch and disconnect the wires.
4. IC-1AD(U) equipment must be installed in as dry and dust-free environment as possible.
* Maintenance; ~
l. Clean your IC-1AD(U) equipment with a soft cloth dampened with neutral household
cleanser. Never use thinner nor benzine, etc.
2. Do not splash water on the door station by hose, etc.
