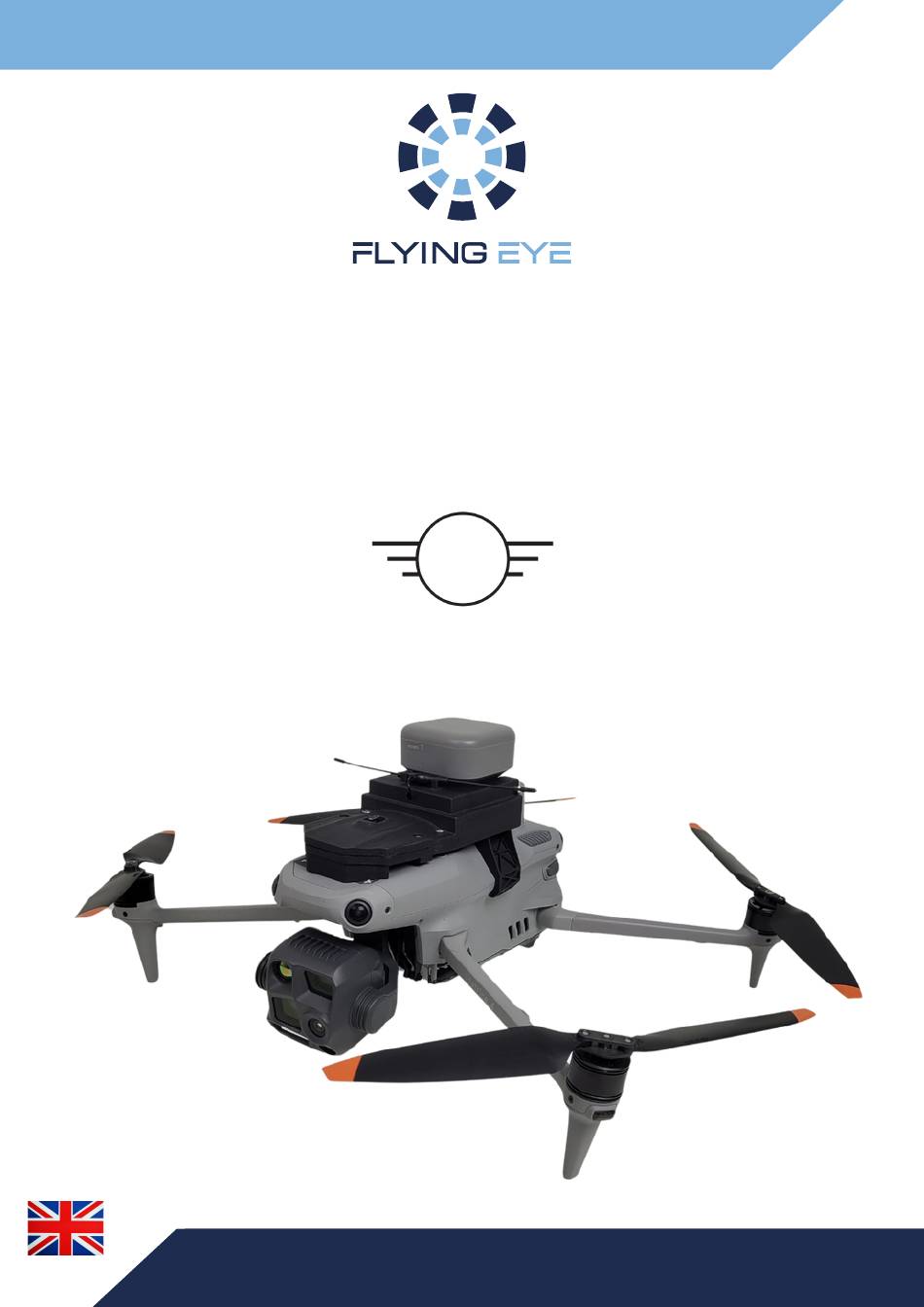

FLYSAFE KIT
DJI Matrice 4 Series
Circuit-breaker + Parachute + Geofencing option
(EASA C5 certification)
5
User manual
Made in France
Version 2.3 (29/04/2025)
www.flyingeye.fr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLYSAFE KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Flying Eye FLYSAFE KIT

  • Page 1 FLYSAFE KIT DJI Matrice 4 Series Circuit-breaker + Parachute + Geofencing option (EASA C5 certification) User manual Made in France Version 2.3 (29/04/2025) www.flyingeye.fr...
  • Page 2: Table Of Contents

    Sommaire Who are we? Warnings and precautions Technical specifications Hardware Installation How to use it Flysafe remote control Using geofence Editing a geofence Pre-flight test Flight preparation Operating conditions Dimension of the Ground Risk Buffer Emergency procedures Maintenance Replacing the parachute pod Assistance and Warranty Monitoring tool (Appendix 1) Incident form (Appendix 2)
  • Page 3: Who Are We

    Who are we? Flying Eye has been your specialist partner in drone technology since 2009. We have been developing parachute arresters since the introduction of drone regulations in 2012. With its pyrotechnic system derived from aviation technology, you have the most effective and lightest system on the market.
  • Page 4 Read this manual carefully before handling the Flysafe system.
  • Page 5: Warnings And Precautions

    Warnings and precautions Flying Eye reserves the right to suspend the warranty of any person who fails to comply with the basic safety instructions set out below. Flying Eye accepts no liability for any damage or injury directly or indirectly related to the use of pyrotechnic cartridges or as a result of the use of pyrotechnic cartridges that do not comply with safety requirements and standards.
  • Page 6 Warnings and precautions Check that the parachute system is in good condition before each outing. Do not use the device if it is damaged or if the test procedure is inconclusive. If necessary, contact your dealer. The parachute in no way alters the operation of the drone. Any flight with a drone implies the existence of a risk for the equipment and people in the vicinity, with or without a parachute.
  • Page 7: Technical Specifications

    Technical specifications Description Kit for DGAC C5 EASA certification Manual and automatic parachute release The circuit-breaker module is built into the drone Compatible with DJI Matrice 4E and 4T Conformity matrices: MoC2511 & MoC2512 MoC2511 declaration of conformity C5 declaration of conformity Geofencing optional Installation is carried out in our workshop (assembly included in the price).
  • Page 8 Technical specifications Parachute rescue systems with automatic fall detection can make all the difference compared with human reflexes. The Flying Eye parachute kit can be deployed automatically in these situations, ensuring the safety of your drone but above all reducing the impact on the ground for the safety of third parties.
  • Page 9: Hardware

    Hardware Supplied Flysafe remote control Radio control screw holder Parachute pod Circular cutter module Support Module Screws (4 flat-head and 2 round-head) Led test Declaration of conformity C5 Not supplied Drone Remote control Screwdriver Using the radio control with this system is easier with a harness.
  • Page 10: Installation

    Installation You will need the Flysafe remote Attach the Flysafe remote control, the drone remote control to the drone's remote control and the screws. control using the screw holder Remove the USB-C cover Insert the bracket on the drone...
  • Page 11 Installation Clip it into the holes on the sides using the support tabs Position the module on the Place the flat-head screws at support and connect it to the the front and the domed-head USB-C socket screws at the rear and screw in place.
  • Page 12 Installation Insert the parachute into its slot Plug it all the way into USB-C Fix the screws on the sides to hold The parachute system is now the parachute in place. installed Be careful when inserting the pod: inserting the parachute in the wrong direction can damage the connectors and alter the operation of the system.
  • Page 13: How To Use It

    How to use it LOADING The parachute pod charges automatically when it is installed on the drone and the drone is switched on. START Before switching on the parachute circuit breaker, align the box horizontally: -Lighting: The Matrice 4 parachute pod lights up automatically when the drone is switched on, provided it is correctly inserted.
  • Page 14 How to use it STOP The parachute pod stops automatically when the drone is switched off. EJECTED PARACHUTE The red LED is always lit and the buzzer sounds every ten seconds (the remaining power must be greater than 20%). Switch off the buzzer when you have found the drone.
  • Page 15 How to use it Pod on Pod on Radio control switched off Remote control on Automatic Automatic triggering only triggering only...
  • Page 16: Flysafe Remote Control

    Flysafe remote control START AND STOP TRIGGER To switch the Flysafe radio control on The parachute is or off, press and hold the power released by pressing the button (grey). 2 ‘FIRE’ (red) buttons The charge level is indicated on the simultaneously.
  • Page 17 Flysafe remote control The main display provides telemetric feedback to the receiver and continuous status information. It is divided into four separate sections: The strength of the radio link with the receiver The level of the radio control battery The status of the FTS cut-off system on board the machine (detailed in the next section).
  • Page 18 Flysafe remote control FTS status The status of the FTS, i.e. the cut-off system, is displayed on the left of the main screen. The following icons can be displayed and correspond to a particular status : The cut-off system is fully operational. The user can initiate manual disconnection.
  • Page 19 Flysafe remote control (Optional) GeoFence status N.B : The geofence functions are only available as an option. Without it, the manual mode icon will always be displayed. The status of geofencing is displayed on the right-hand side of the main screen. The following icons can be displayed and correspond to a particular status : Manual mode only (geofencing not available) Loading or checking the fence in progress can take...
  • Page 20: Using Geofence

    Using geofence (Optional) Start-up procedure To ensure that geofencing works properly, it is essential to follow the following order: the radio control must be switched on first in order to activate the fence. The drone can then be powered up, either to load a new fence or to check that the fence stored in the receiver matches the one in the radio control.
  • Page 21: Editing A Geofence

    Editing a geofence (Optional) User access Access GeoFence Editor : https://geofence-editor.flyingeye.fr/ Log in using the login details you received beforehand Choose a new password and change it by clicking on ‘setting’ : Get to know the interface and discover the different functions...
  • Page 22 Editing a geofence (Optional) Creating your flight zone The editing procedure is as follows: Use the search engine to find the location of your operation. Draw the main fence and confirm. Draw the warning fence and confirm. Add the No Fly Zone (NFZ) and validate (optional step). Add the NFZ warnings and validate them (optional step).
  • Page 23 Editing a geofence (Optional) Deleting polygons. Allows the user to delete a targeted polygon. Backup. Saves the current Fence in the json format expected by the Standalone remote control (standard geojson with properties). Fence loading. Allows the user to reload a fence that they have previously edited.
  • Page 24: Pre-Flight Test

    Pre-Flight Test Before the first flight of the day at a given operating site, check all the components of the system and verify its integrity. If any anomaly is found, do not proceed with the flight and contact your dealer. Ground test: Ensure that the entire drone system is powered down.
  • Page 25: Flight Preparation

    Contingency volume limit: Emergency procedures must be triggered if this limit is exceeded. This is particularly the case for the automatic FTS Flying Eye Flysafe Ground Risk Buffer: Zone projected on the ground where no third party should be present in the event of a crash of the aircraft, also known as the Third Party Exclusion Zone (ZET).
  • Page 26: Operating Conditions

    Operating conditions Minimum height (for optimum parachute efficiency): 15 m Maximum transmission distance: 2500 m (in flat, clear terrain with no interference) Maximum wind speed: 43km/h Parachute opening time: 1.5s Fall speed under parachute: 5 m/s Operating temperature : - 10 to 40°C Impact energy without wind: 18 J Frequency used: 868MHz LORA 868 MHz is shared with other users and devices using the same frequency...
  • Page 27: Dimension Of The Ground Risk Buffer

    Dimension of the Ground Risk Buffer Under licence : Evaluation of the crash zone when using the Flysafe kit in manual mode, assuming an operator reaction time of 3s and a ground speed of 10m/s. Automatic cut-out via FTS in 0.2 S...
  • Page 28: Emergency Procedures

    Emergency procedures Important note: The procedures below do not exhaustively describe the actions to be taken by the remote pilot in response to all possible types of anomaly. They assume that the telepilot has first attempted to return to a normal flight situation and are limited to describing the ultimate safeguard measures when : -The aircraft cannot be maintained within the flight limits provided;...
  • Page 29: Maintenance

    (see appendix 1) or any other monitoring tool. In the event of a malfunction, he fills in the ‘incident sheet’ (see appendix 2) and sends it back to Flying Eye. Maintenance after 1000 activations (including pre-flight test) After 1000 activations of the Flysafe system, the drone must be sent to our premises for servicing.
  • Page 30: Replacing The Parachute Pod

    Replacing the parachute pod Steps for changing the parachute pod : Order a new parachute pod (grey case) Unscrew the 2 screws located under the pod (on each side)
  • Page 31 Replacing the parachute pod Slide the pod towards the rear of the drone The parachute support will then be released...
  • Page 32 Replacing the parachute pod Insert the new parachute pod by sliding it towards the front of the drone, making sure that the USB-C port is also towards the front of the drone. Re-tighten the 2 screws located under the pod on either side of the bracket Your pod is now correctly installed and ready to use...
  • Page 33: Assistance And Warranty

    Flysafe kit, please contact Flying Eye technical support. Warranty The Flysafe kit for DJI Matrice 4 is covered by a 12-month warranty according to the conditions of purchase. The warranty covers manufacturing defects, but does not apply to damage caused by...
  • Page 34: Monitoring Tool

    Monitoring tool (Appendix 1) Flight feature Weather FTS default tracking Uninten average Date Temper Activati tional Year for Nature duration Remote Locatio wind <dj/mm ature activatio activatio Remarks annual flight in min pilot speed /aaaa> (°C) failure n of the review (m/s)
  • Page 35: Incident Form

    Incident form (Appendix 2) Circuit-breaker and parachute system log sheet UAS identification UAV serial number UAS number Number of UAS flight hours Circuit-breaker activation failure during pre-flight Number of UAS flight hours Failed to activate circuit breaker during Number of UAS flight hours Distance between remote control circuit breaker and drone Place of operation Presence of high-power transmitters in the operational volume...
  • Page 36 Detailed information on using the aircraft can be found in the manual, which can be downloaded from this page: https://dl.djicdn.com/downloads/DJI_Matrice_4_Seri es/DJI_Matrice_4_Series_User_Manual-fr.pdf...
  • Page 37 WWW.FLYINGEYE.FR INFO@FLYINGEYE.FR 09.72.62.78.50 400 AVENUE ROUMANILLE GREEN SIDE - BATIMENT 1B 06410 BIOT / SOPHIA ANTIPOLIS...
