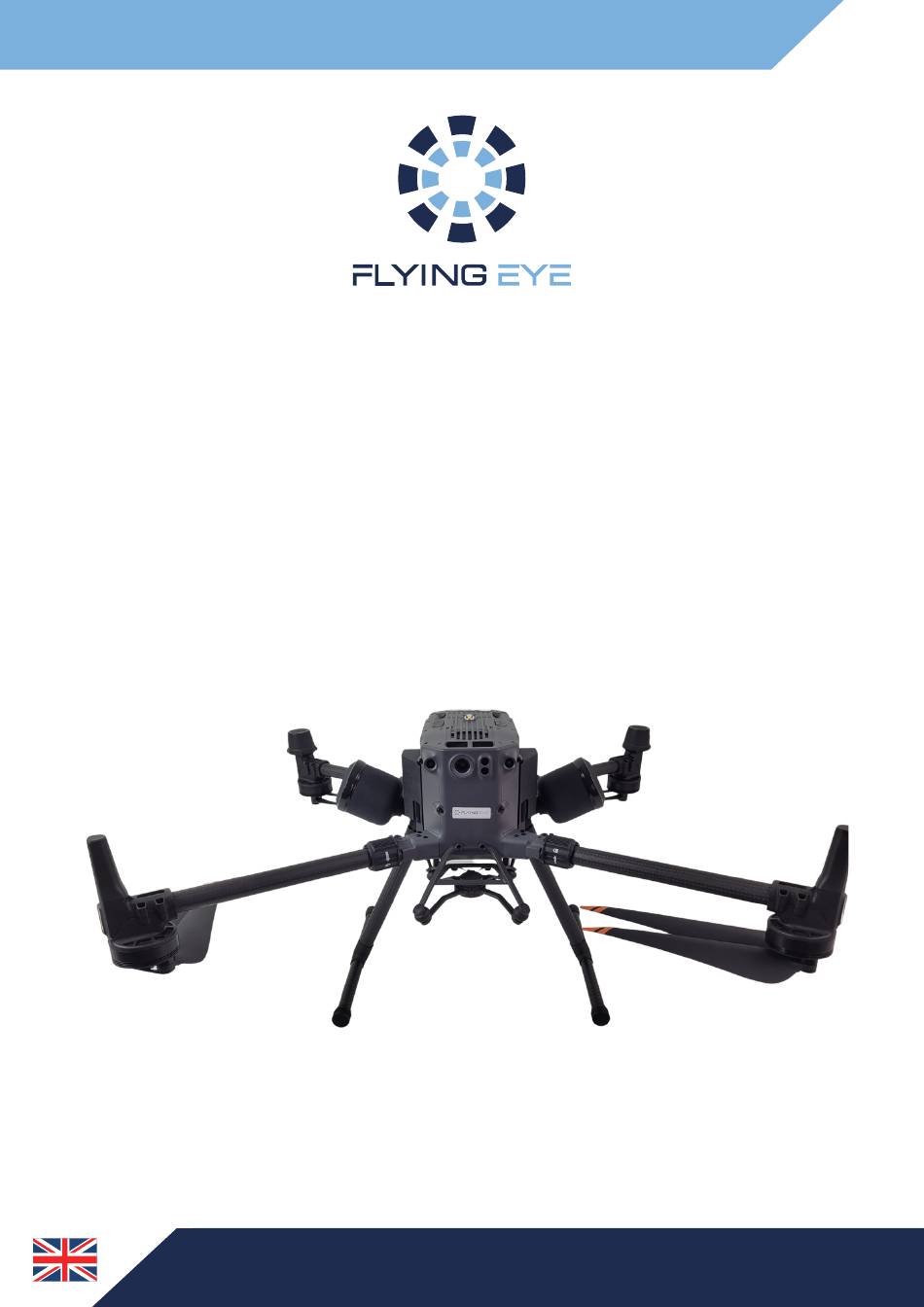

- Page 1 User Manual Parachutes & Flight Termination System (FTS) DJI Matrice 350 RTK Made in France www.flyingeye.fr...
-
Page 2: Table Of Contents
Summary Description Content Technical Specifications Installation Remote control operation User Guide Precautions Support & Warranty... -
Page 3: Description
Description Manual release parachute DGAC S1-S2-S3 approval. Homologation C5 (European regulations) The price includes the FTS module for Matrice 350, as well as approval documents (certificate of conformity and design certificate). The FTS module is external to the drone. Quick assembly and disassembly... - Page 4 Content Kit contents Trigger remote control FTS kit Type design certificate Type conformity certificate Operating and maintenance manual Parachutes x2 Requirements Compatibility: This kit is specially designed for the DJI Matrice 350 RTK. Make sure you use the right accessories for this model of drone.
-
Page 5: Specifications
Specifications Weight of complete system: 710g Impact energy: 106 Joules FTS transmission frequency: 869MHz Redundant power cut electronics Double trigger button on remote control Encrypted frames (256 bits) - checksum to authenticate the frame. Bidirectional association Logs on micro-sd card in remote control (user-readable, non-... -
Page 6: Installation
Installation Parachute system installation Turn the drone over and place it on Unfold arms a soft surface to avoid damaging it. Unscrew the 4 axle support screws Remove the landing gear support using a wrench. and do the same on the other side. - Page 7 Installation Take the landing gear support and insert it Take both landing gear Screw on both sides...
- Page 8 Installation Retract the landing gear into its support Tighten the landing gear on both Turn the drone sides...
- Page 9 Installation Take the right module Insert the module into the battery slot the right way round (there's a rail for sliding the module in). Insert as much as possible and do the same on the left...
- Page 10 Installation Put the 2 Test LEDs in the load slots (for function testing). Before inserting the Put the washers the right way batteries, unscrew the round battery latch with a wrench.
- Page 11 Installation Replace the part with the Screw on latch springs in its slot by holding it. Add batteries and close Switching on the drone latch...
- Page 12 Installation Switching on the remote Switching on the parachute control remote control A green tick appears on the remote control, indicating that the parachute system is activated. Activate the system by pressing the 2 red “FIRE” buttons The motors stop, the LEDs light up and the buzzer sounds. Then remove the drone's battery to stop the system.
- Page 13 Installation Locate the disarming Take the key hole on the left module Insert the key into the hole...
- Page 14 Installation Take the loads and remove Insert loads instead the Test LEDs previously installed Then screw the 2 parachute pods to each side of the M350...
- Page 15 Installation The system is now correctly installed As soon as the drone is switched on, the radio control is switched on and the parachute remote control is switched on -> Remove the key -> The green tick will appear on the parachute remote control ->...
-
Page 16: Remote Control Operation
Remote control operation Getting started To switch on the circuit-breaker remote control, short press then press and hold the power button. Remote control charge level Battery level is displayed directly on the remote control screen Trigger The parachute is released by pressing the 2 “FIRE” buttons simultaneously. -
Page 17: User Guide
Cleaning: After each use, use a soft, dry cloth. Avoid solvents or chemicals that could damage materials. Storage: Store the parachute and FTS in a dry place away from direct sunlight when the drone is not in use. Purpose of Flying Eye maintenance:... -
Page 18: Precautions
Precautions Flying Eye may suspend the warranty of any person who fails to comply with the basic safety instructions set out below. Flying Eye declines all responsibility for damage or injury caused directly or indirectly by the use of pyrotechnic loads or by the use of pyrotechnic loads that do not comply with safety requirements and standards. - Page 19 Precautions Check that the parachute system is in good condition before each use. Do not use the device if it is damaged or malfunctioning. If necessary, contact your dealer. The parachute cannot prevent the drone from malfunctioning. Any flight with a drone implies the existence of a risk for equipment and people in the vicinity, with or without a parachute.
-
Page 20: Support & Warranty
Flight Termination System, please contact Flying Eye technical support. Warranty The FTS for DJI Matrice 350 RTK is covered by a 12-month warranty according to the conditions of purchase. The warranty covers manufacturing defects, but does not apply to damage caused by... - Page 21 WWW.FLYINGEYE.FR INFO@FLYINGEYE.FR +339.72.62.78.50 400 AVENUE ROUMANILLE GREEN SIDE - BATIMENT 1B 06410 BIOT / SOPHIA ANTIPOLIS V1 18th February 2025...
