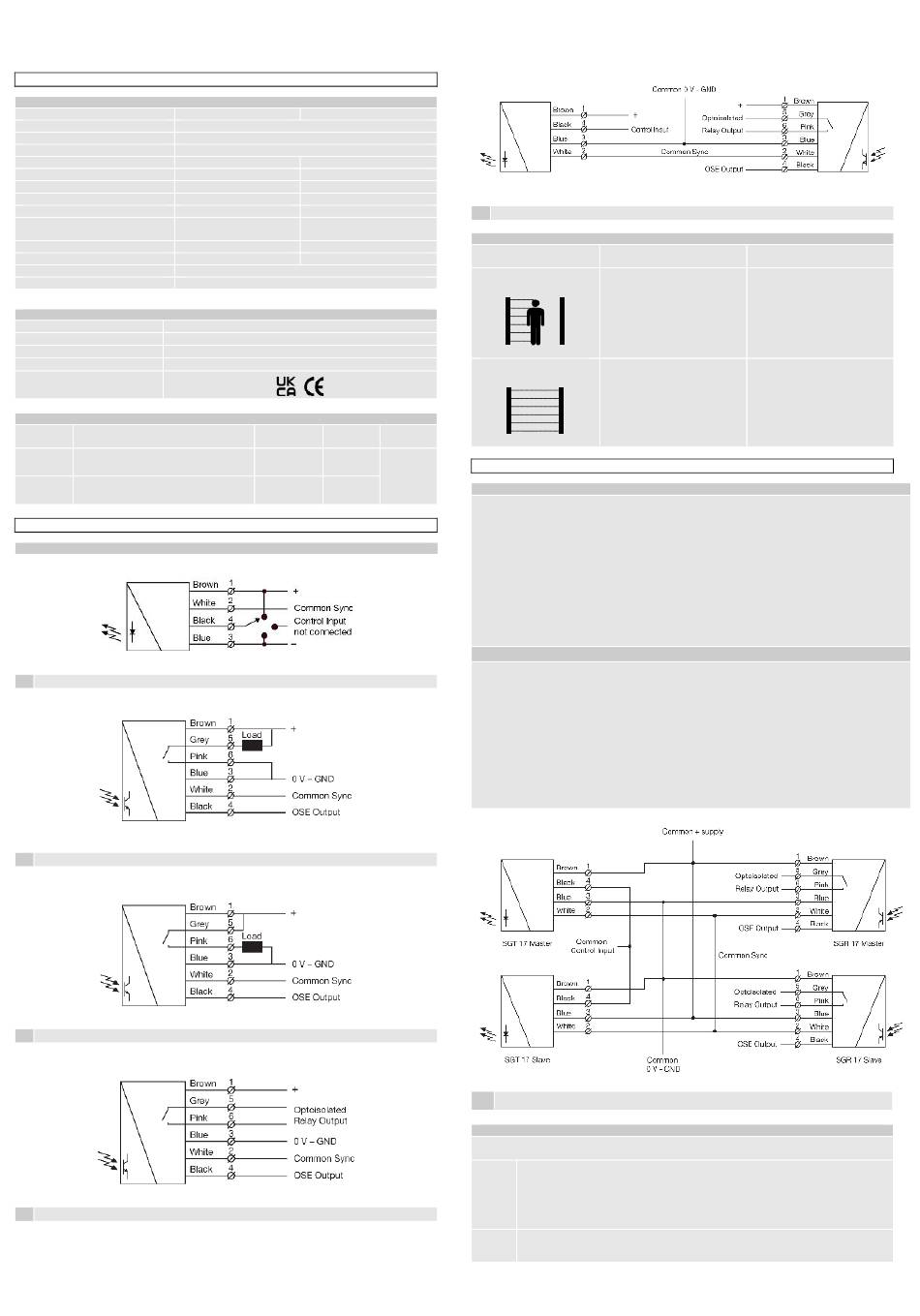

SG 17 HOSE9 – USER MANUAL
Space Guard Series
Photoelectric light curtains for automatic doors
Product Data
Technical Data
Supply voltage
Max. Voltage ripple
Reverse polarity protected
Max. current consumption
OSE output
OSE max. output load
OSE max. capacitive load
Solid state max output load
Solid state max. output ON
resistance
Short circuit protected
Inductive load protection
Sensing range
Response time (max.) (*)
(*) Independent on model
Environmental Data
Light immunity @ 5º incidence
Temperature, operation
Temperature, storage
Sealing class
Marking
Available Models
Model
Transmitter SGT 17-xxx-0xx-x1-U-xx-0.3-T4-15
Receiver SGR 17-xxx-0xx-x1-U-HOSE9-0.3-T6-5
Connection
Wiring Diagrams
Transmitter SGT 17
Receiver SGR 17 HOSE9 (OSE + SSR as NPN) output
Receiver SGR 17 HOSE9 (OSE + SSR as PNP) output
Receiver SGR 17 HOSE9 (OSE + SSR) output
Website: www.telcosensors.com
E-Mail: info@telcosensors.com
Made in Denmark
SGT (Transmitter) SGR (Receiver)
10-30 Vdc
15% (within supply range)
Yes
70 mA (RMS) 40 mA
- 5V 900Hz square signal
-
2 KΩ
- 100nF
- 100 mA
35 Ω
-
- Yes
- Yes
1 m – 12 m
40 ms
> 100.000 lux
-25 to + 55 ºC
-40 to + 80 ºC
IP67
Output
Output
Mode
- -
OSE + Solid
N.C.
state relay
EN
SGT 17 and SGR 17 HOSE9 with common 0V – GND and synchronization wire
SGR Output Logic
Detection
Present
Absent
Sensing
Range
Installation & Adjustment
1 – 12m
General Instructions and Precautions
The dynamic blanking allows the light curtain to be mounted in the door plane of vertically sliding
doors, where the door is passing through the beams in a movement up and down. It is important
that the lowest part of the door leaf will efficiently obstruct the light beams over a height of 50 mm.
Even though the light curtain has a high degree of immunity to ambient light sources, it is
recommended to avoid direct exposure to sunlight and interference from flashlights or other
infrared light sources (such as other photoelectric sensors).
If the front cover or the opto components of the light curtain become contaminated, then they have
to be cleaned with a slightly damp cloth. Do not use organic solvents or detergents.
Ensure that the light curtain is mounted so that it is mechanically stable during operation.
Severe rain and snow may be detected due to the high sensitivity of the system.
SG 17 Master/Slave Configuration (installation of double light curtains)
It is possible to mount 2 light curtains in line with thick and heavy doors.
The two light curtains sets must then have a common 0V - GND, + supply and synchronisation
connection as shown below.
The polarity's connection defines the Master set and the Slave set. The set connected with the
standard polarity will act as Master set. And the set connected with the reversed polarity will act as
Slave. A SG 17 set connected as a slave (reversed polarity) will not run without connection to a
SG 17 Master set.
Note: Please check the polarity of the load when connecting it as PNP or NPN on the receiver in
slave mode (SGR slave). The SG 17 slave set is powered with the connections inverted
(+ blue and - brown).
SG 17 HOSE9 (OSE + SSR) output Master/Slave wiring
Installation and Adjustment
No initial set up or adjustments are required.
Mount the transmitter (SGT) and receiver (SGR) facing each other and correctly
aligned.
1 The bottom beam is 35 mm above ground if the rails stand on the ground on the pin.
The pin can partially or completely be cut off if the light curtain needs to be lowered
relative to support structure.
Fix the mounting clips in line and parallel.
2
The maximum distance between the points of fixture should not exceed 135 cm.
tel
Output indicator
Output status
(yellow led)
OSE: 0V
Solid state: Open
OSE: 5V 900 Hz signal
Solid state: Closed
V 1.0 Partnumber: 0666221044
November 2024 edition
Telco A/S reserves the right to make changes without prior notice
