Telco Sensors SG 16 OSE9 User Manual

SG 16 OSE9 – USER MANUAL
Space Guard Series
Photoelectric light curtains for automatic doors
Important Information
General
THE SG 16 LIGHT CURTAIN SHOULD ONLY BE INSTALLED BY AUTHORIZED AND FULLY
TRAINED PERSONNEL!
THE LIGHT CURTAIN IS ONLY A SAFETY PROTECTION DEVICE IF ALL INSTRUCTIONS
IN THIS MANUAL, ARE CAREFULLY FOLLOWED AND FULLY COMPLIED WITH. IN
ADDITION, THE INSTALLER IS REQUIRED TO COMPLY WITH ALL LOCAL LAWS AND
STANDARDS.
ANY ALTERATIONS TO THE DEVICE BY THE BUYER, INSTALLER OR USER MAY
RESULT IN UNSAFE OPERATING CONDITIONS.
Compliance to Directives and Standards
"This device complies with the European directives, 2006/42/EC for machinery, 2014/30/EU for
electromagnetic compatibility, when used in accordance with the instructions in this manual.
Furthermore, the device complies with the European RohS directive 2011/65/EU.
The compliance to the directive of machinery is declared according to:
EN 13849-1 category 2, PL d
EC type examination:
TUV NORD CERT GmbH, Am TÜV 1, 45307 Essen (NB 0044)
EC-type certificate No. 44 205 13 099406"
Product Data
Technical Data
Supply voltage
Max. Voltage ripple
Reverse polarity protected
Max. current consumption
OSE output
OSE max. output load
OSE max. capacitive load
Solid state max output load
Solid state max. output ON
resistance
Short circuit protected
Inductive load protection
Sensing range
Response time (max.) (*)
(*) Independent on model
Environmental Data
Light immunity @ 5º incidence
Temperature, operation
Temperature, storage
Sealing class
Marking
Available Models
Model
Transmitter SGT 16-xxx-0xx-x1-U-xx-0.3-T4-15
Receiver SGR 16-xxx-0xx-x1-U-OSE9-0.3-T6-5
Connection

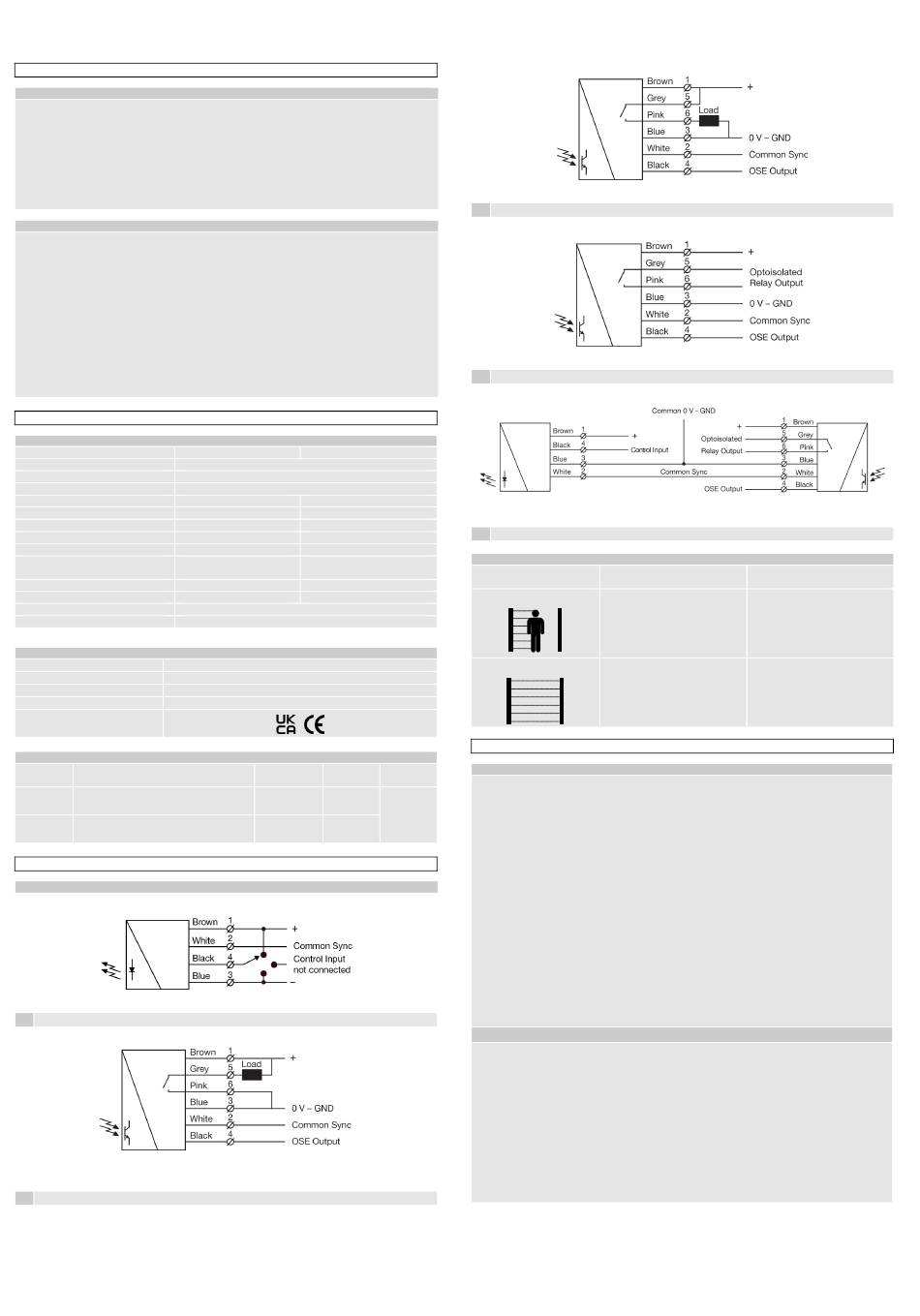

Wiring Diagrams
Transmitter SGT 16
Receiver SGR 16 OSE9 (OSE + SSR as NPN) output
Website: www.telcosensors.com
E-Mail: info@telcosensors.com
Made in Denmark
EN 12978
EN13849-2
EN12453
SGT (Transmitter) SGR (Receiver)
10-30 Vdc
15% (within supply range)
Yes
70 mA (RMS) 35 mA
- 5V 900Hz square signal
- 2 KΩ
- 100nF
- 100 mA
- 35 Ω
- Yes
- Yes
1 m – 12 m
40 ms
> 100.000 lux
-25 to + 55 ºC
-40 to + 80 ºC
IP67
Output
Output
Mode
- -
OSE + Solid
N.C.
state relay
EN
Receiver SGR 16 OSE9 (OSE + SSR as PNP) output
Receiver SGR 16 OSE9 (OSE + SSR) output
SGT 16 and SGR 16 OSE9 with common 0V – GND and synchronization wire
SGR Output Logic
Detection
Present
Absent
Installation & Adjustment
Sensing General Instructions and Precautions
Range
This light curtain can be used in industrial, commercial and garage doors and gates, as
described in EN 12453, with a minimum level of safeguarding E. There are various ways of
mounting the light curtain. In any case it is important to ensure that the requirements from EN
1 – 12m
12453 are met.
The dynamic blanking allows the light curtain to be mounted in the door plane of vertically
sliding doors, where the door is passing through the beams in a movement up and down. It is
important that the lowest part of the door leaf will efficiently obstruct the light beams over a
height of 50 mm.
Even though the light curtain has a high degree of immunity to ambient light sources, it is
recommended to avoid direct exposure to sunlight and interference from flashlights or other
infrared light sources (such as other photoelectric sensors).
If the front cover or the opto components of the light curtain become contaminated, then they
have to be cleaned with a slightly damp cloth. Do not use organic solvents or detergents.
Ensure that the light curtain is mounted so that it is mechanically stable during operation.
Severe rain and snow may be detected due to the high sensitivity of the system.
Automatic door closure must be disabled on the door controller if door repair or maintenance
or other activities requires longer presence in the door opening. In general, do not prevent
automatic door closure by placing objects in the active area of the light curtain.
SG 16 Master/Slave Configuration (installation of double light curtains)
It is possible to mount 2 light curtains in line with thick and heavy doors. Another possibility is
to install one set on each side of the door.
The two light curtains sets must then have a common 0V - GND, + supply and synchronisation
connection as shown below.
The polarity's connection defines the Master set and the Slave set. The set connected with the
standard polarity will act as Master set. And the set connected with the reversed polarity will
act as Slave. A SG 16 set connected as a slave (reversed polarity) will not run without
connection to a SG 16 Master set.
Note: Please check the polarity of the load when connecting it as PNP or NPN on the receiver
in slave mode (SGR slave). The SG 16 slave set is powered with the connections inverted
(+ blue and - brown).
tel
Output indicator
Output status
(yellow led)
OSE: 0V
Transistor: OFF
OSE: 5V 900 Hz signal
Transistor: ON
V 1.0 Partnumber: 0666221000
November 2023 edition
Telco A/S reserves the right to make changes without prior notice
Off
On
