Intesis IN702MEB 0000 Series Installation Manual

Installation Guide for the IN702MEB⁎⁎⁎0000 Gateway
Intesis Network Gateway with M-Bus, Modbus and Pulse Meters to Serial and IP.
Order code: IN702MEB⁎⁎⁎0000
The order code may vary depending on the product seller and the buyer's location.
⁎⁎⁎ stands for the gateway capacity and varies depending on the specific gateway purchased.
Version 1.0.0
Owner's record
Find the serial number on the silver label on the right side of the gateway. We recommend you write
it in the space below for sales or technical assistance:
SN:
Safety Information
Follow these safety and installation instructions carefully. Improper work may lead
to serious harm to your health and may seriously damage this Intesis gateway
and/or any other installation equipment.
Only technical personnel, following these instructions and the country legislation for installing
electric equipment, can install and manipulate this gateway.
Install this gateway indoors, in a restricted access location, avoiding exposure to direct solar
radiation, water, high relative humidity, or dust.
Mount the gateway, preferably, on a DIN rail inside a grounded metal cabinet following the
instructions below.
In the case of wall mounting, firmly fix the gateway on a non-vibrating surface following the
instructions below.
Disconnect power wires before manipulating and connecting them to the gateway.
All wires for communication and power supply must only be connected to networks without
routing to the outside plant. All communication ports are considered for indoor use and must
only be connected to SELV circuits.
Keep power and ground wires separate from communication wires. Never bundle them together.
Use SELV-rated NEC class 2 or limited power source (LPS) power supply.
Use a circuit-breaker before the power supply. Rating 250 V, 6 A.
Supply the correct voltage to power the gateway. See the Technical Specifications table at the end
of this document.
Respect the expected polarity of power and communication cables when connecting them to the
gateway.
This gateway is designed for installation inside an enclosure. When working inside an enclosure
(ex. to make adjustments, set switches, etc.), observe the common antistatic precautions before
manipulating the gateway. Take precautions when installing it outside an enclosure to avoid
electrostatic discharges.
These safety instructions in other languages can be found here.
Configuration
Connect the gateway to a computer using a USB Type-C cable (not included).
Configure the gateway using Intesis MAPS. To download the latest version of the configuration
tool, click here.
For further information on the configuration, refer to the Intesis MAPS guide.
Mounting
Mount the gateway over a wall or over a DIN rail.
Before mounting, please ensure that the chosen installation place preserves the
gateway from direct solar radiation, water, high relative humidity, or dust.
DIN rail mounting inside a grounded metallic cabinet is recommended.
Leave enough clear space to wire the gateway easily and for the subsequent
manipulation of elements, such as connectors, DIP switches, etc.

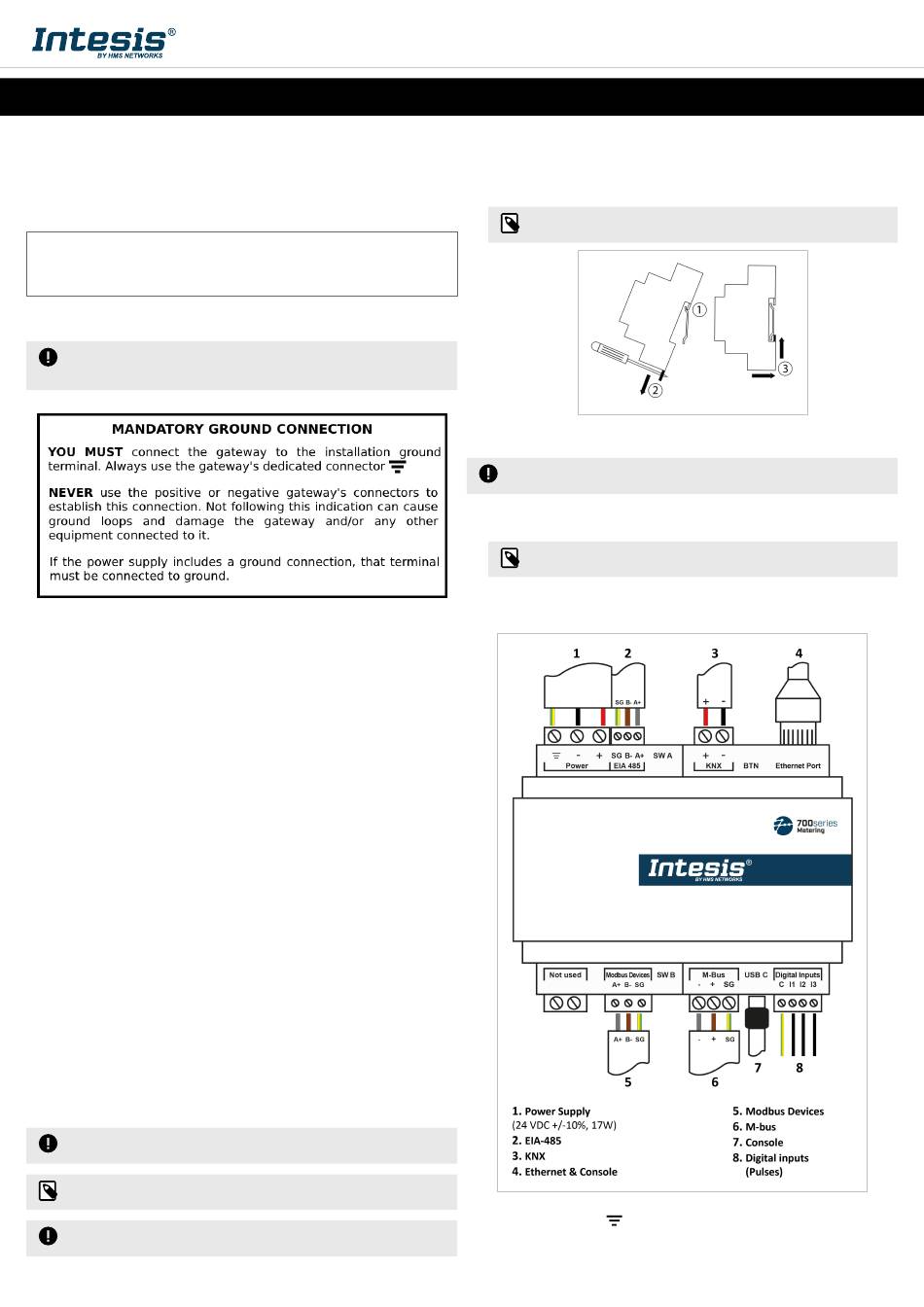

DIN RAIL MOUNTING
1. Fit the gateway's top-side clips in the upper edge of the DIN rail.
2. Press the low side of the gateway gently to lock it in the DIN rail.
3. Make sure the gateway is firmly fixed.
WALL MOUNTING
1. Press the top-side mobile clips in the rear panel until you hear a click.
2. Use the clip holes to fix the gateway on the wall using screws.
3. Make sure the gateway is firmly fixed.
Wiring
Power supply: Use a SELV-rated NEC class 2 or Limited Power Source (LPS) power supply. Connect
the gateway's ground terminal (
Power rating: 24 VDC (±10%), 17 W
© HMS Industrial Networks SLU | www.hms-networks.com
Installation Guide | Publication date: 2025-05-29
For some DIN rails, to complete step 2, you may need a small screwdriver or
similar to pull the bottom clip down.
For reasons of security, the maximum height for wall mounting is two meters (6.5
feet).
Use M3 screws, 25 mm (1") length.
) to the installation grounding.
