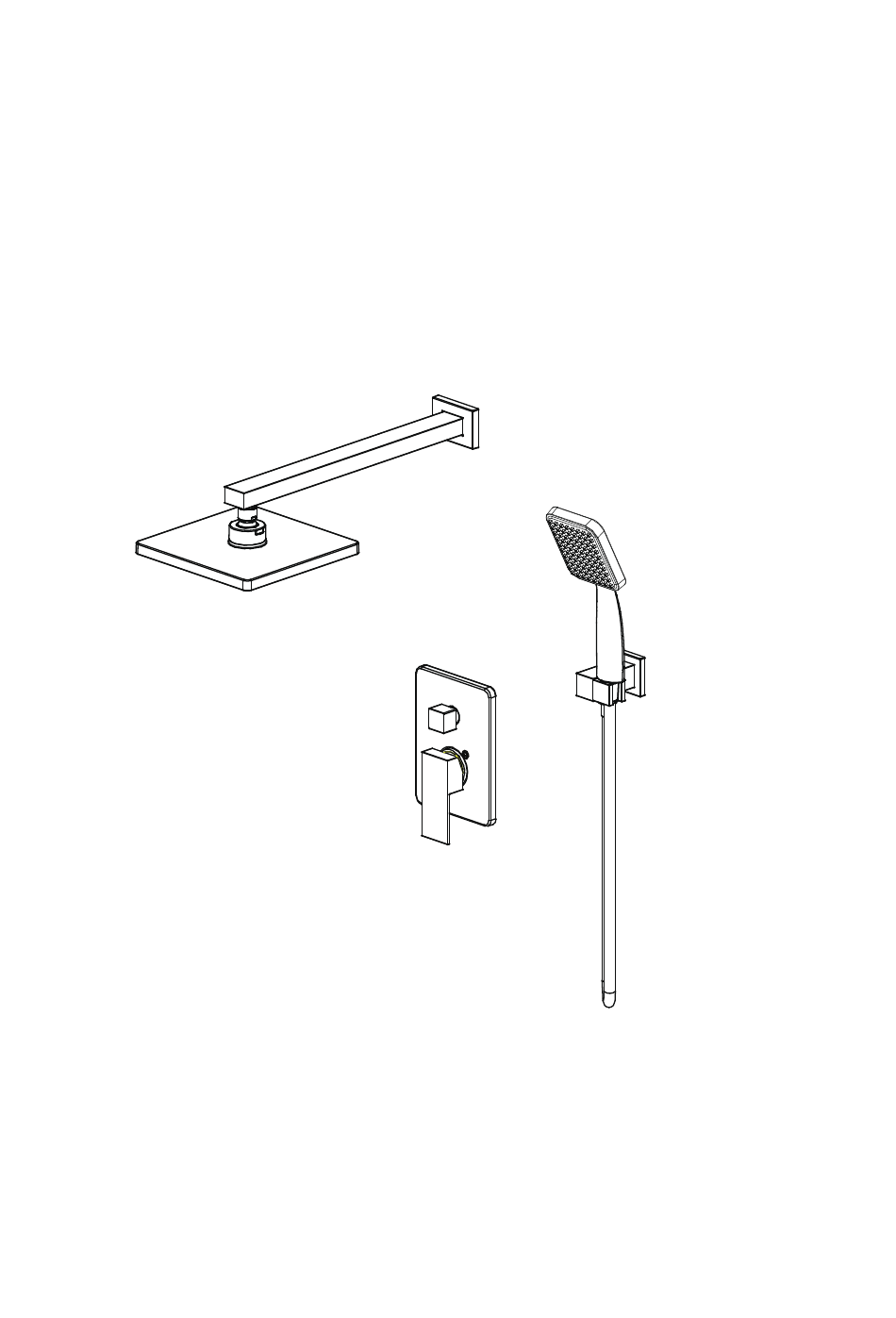

- Page 1 INSTALLATION MANUAL Wall Mount Dual Shower Heads A17C004A5B D2F7004A5C www.homluxproducts.com...
- Page 2 Business Name: FDC Development LLC Business Address: 100 Po�ery Rd Commerce, GA 30529 Web: www.homluxproducts.com Any query please feel free to our service team: EMAIL: help@homluxproducts.com TEL: (800) 209-3199 (MON-FRI 9:00am-5:00pm Eastern Time) Thanks for Choosing Us. Please keep the box and packaging materials un�l your product is completely installed.
- Page 3 WARNING: This system/device must be set by the professional plumber to ensure safe, maximum temperature. Any change in the se�ng may raise the discharge temperature above the limit considered safe and may lead to hot water burns. NOTICE TO INSTALLER: CAUTION!–As the installer of this valve, it is your responsi- bility to properly INSTALL and ADJUST this valve per the instruc�ons given.
- Page 4 Prior to Installa�on Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact our Customer Service. Supply lines should be purged to clean impuri�es before connec�ng the unit. The hot water supply should be connected to the le�...
-
Page 5: Package Included
Package Included Note: Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact our Customer Service. - Page 6 Installa�on Guide Shower head Hand shower Cold STEP 2: PIPE CONNECTION STEP 1: SHUT OFF WATER SUPPLIES a Pipe material: Plas�c/Metal. a Confirm the installed place of the pressure balance valve on the wood block. b Note: The water inlet pipe shall not be connected reversely. It is required to be hot on the le�...
- Page 7 STEP 5: CUT THE TILE HOLE STEP 6: INSTALL THE DECORATIVE PLATE a Cut the size of the �le hole according to the size and shape of the a Remove the decora�ve plate. protec�ve cover. b Lock the deck plate into the body and a�ach to the wall, then b Place �le outside the wooden wall (note: keep the same central �ghten screws (package included).
- Page 8 STEP 9: INSTALL THE HELD SHOWER HEAD a. Tighten the hose to the connector and held shower head BACK TO BACK INSTALLATION Normal lnstalla�on Reverse Installa�on (changes not required) a Remove the valve core Cold Le�:Hot 180° Right:Hot b Remove loca�ng sleeve c Rotate the valve core 180 °...
- Page 9 ADJUSTING THE ROTATIONAL LIMIT STOP 10° 49 c Indica�on posi�on Remove the an� scald ring Rotate the an� scald ring 10 ° A�er removing the an� ° of an� scalding ring counterclockwise scalding func�on Indica�on posi�on of an� scalding ring WARNING: The Rota�onal Limit Stop is used to limit the amount of hot water available such that, if set properly, the user will not be scalded if the handle accidentally is rotated all the way to “hot”...
