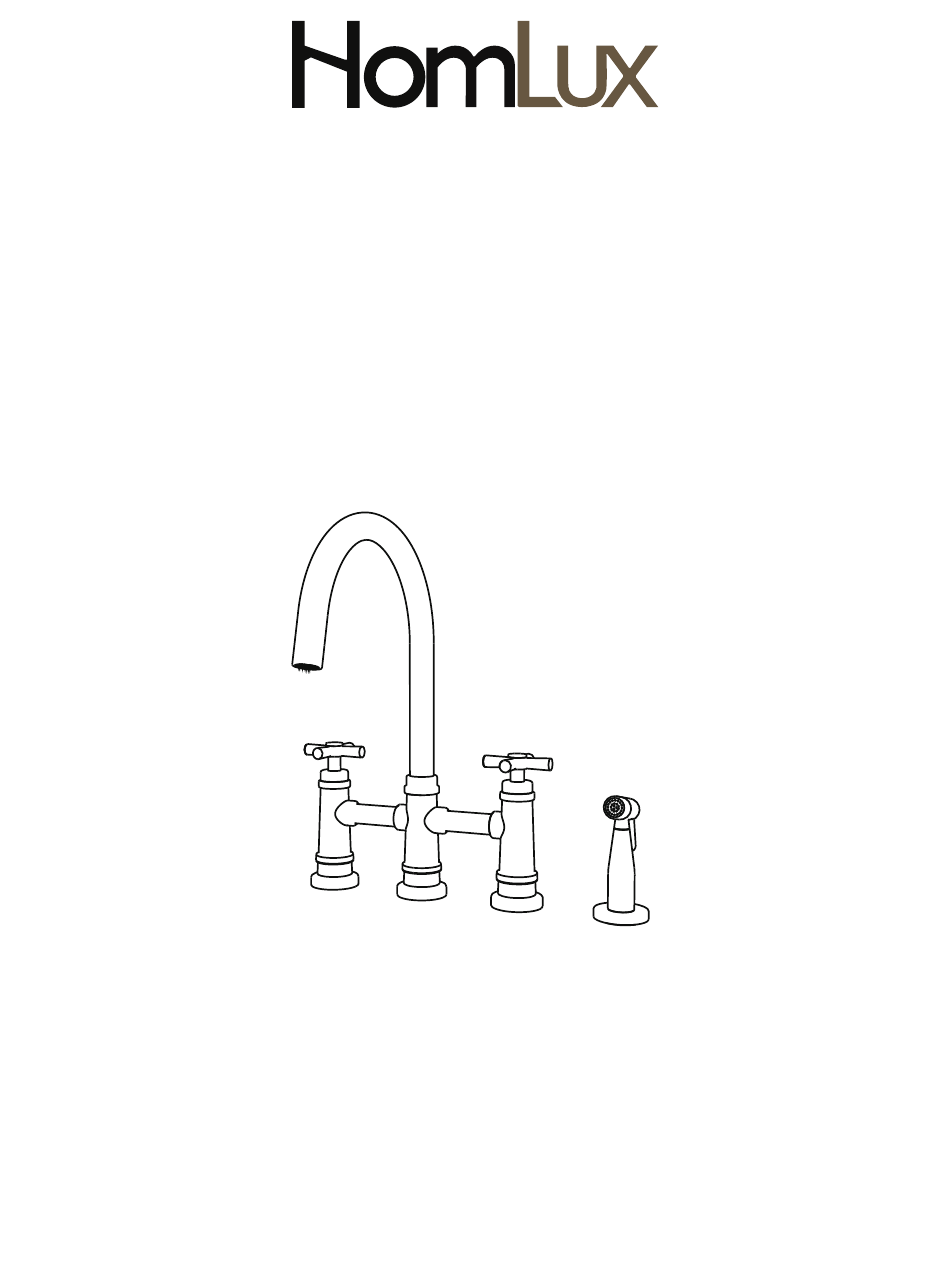

- Page 1 INSTALLATION MANUAL 2-Handle Bridge Kitchen Faucet with Side Sprayer 063E004435 www.homluxproducts.com...
- Page 2 Peachtree Corners GA 30071 US Web: www.homluxproducts.com Any query please feel free to email our service team: help@homluxproducts.com Thanks for choosing HomLux. assistance or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team help@homluxproducts.com...
- Page 3 Make your home luxury. Make sure you have all necessary parts by checking the diagram and parts list. If Pre-drilled hole size requirement: 1-1/4" (min) 1-1/2" (max) – Max countertop thickness: 2-1/2" You may need Cleaning and Care Care should be given to the cleaning of this product. Although its CAUTION assumes no responsibility for product failure due to improper...
- Page 4 Make your home luxury. washer(14) and metal washers(15) from the spayer base. countertop or deck plate. b Insert side spayer base in countertop or deck plate. Install and b Connect side spray hose.
- Page 5 Make your home luxury. Connect waterlines to hot and cold copper lines. Connect waterlines to angle stops. Tighten both ends of waterlines with a for leaks. to hose. 3.Do not use cloth with a coarse surface 4.Unscrew the aerator and clean when necessary...
- Page 6 Make your home luxury. 2-Handle Bridge Kitchen Faucet with Side Sprayer Ø 0.94" 8.9" (24mm) (226mm) 2.67" (68mm) Ø Ø Ø 1.963" 1.963" (50mm) (50mm) (50mm) 4" 4" (102mm) (102mm) and secure docking • Flow Rate: 1.8 GPM (6.8 L/MIN) at 60 PSI •...
-
Page 7: Replacement Part List
Make your home luxury. Replacement Part List Spout Kit Cartridge Cover Cartridge Kit 9、27 Faucet Body 10-13 Rubber Washer Metal Washer Quick Connector Washer Inner Waterline 20-21 O-Ring Side Spray Base Washer Side Spray 28-35 Faucet Body Kit 36-37... - Page 8 Make your home luxury. Parts and Finish warranted to the original consumer purchaser to be free from defects in material and workmanship for as long as the original consum- may elect to refund the purchase price in exchange for the return of the product. These are your exclusive remedies. number and date of original purchase): FDC Development LLC 6550 Jimmy Carter Blvd Suite B...
