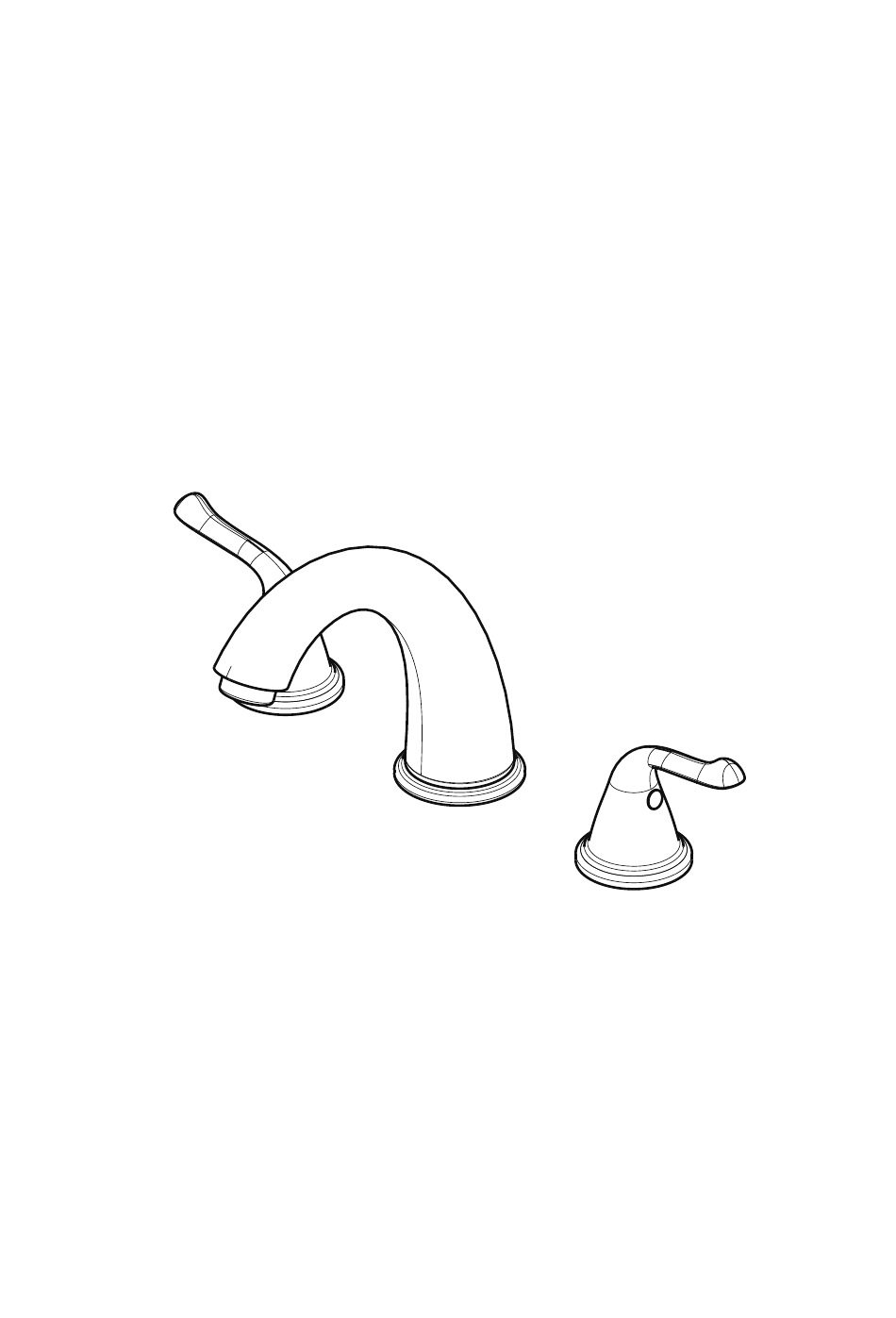

- Page 1 INSTALLATION MANUAL 8 in. Widespread 2-Handle Bathroom Faucet 5E6C004400 E5E1004A39 www.homluxproducts.com...
- Page 2 Business Name: FDC Development LLC Business Address: 100 Po�ery Rd Commerce, GA 30529 Web: www.homluxproducts.com Any queries? Please feel free to contact our service team: EMAIL: help@homluxproducts.com TEL: (800) 209-3199 (MON-FRI 9:00am-5:00pm Eastern Time) Thanks for Choosing Us. Please keep the box and packaging materials un�l your product is completely installed.
- Page 3 Prior to installa�on Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact our Customer Service. Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built up pressure.
-
Page 4: Package Included
Package Included Drain Kit Faucet Kit Y-Connector Hot & Cold Waterlines Note: Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact our Customer Service. -
Page 5: Installa�On Guide
Installa�on Guide Faucet Assembly Drain Assembly STEP 2: INSTALL FAUCET BODY & HANDLES STEP 1: REMOVE MOUNTING HARDWARE Insert faucet body into hole in countertop. Remove the moun�ng screws(G), moun�ng nuts(F&J), metal washers(E&I) and rubber washers(D&H) from the moun�ng pipe. Insert the hot water handle into the le�... - Page 6 STEP 3: INSTALL MOUNTING HARDWARE STEP 4: SECURE MOUNTING HARDWARE Install the rubber washers(D&H), metal washers(E&I), moun�ng Adjust direc�on of faucet body(B) and handles(C1,C2). Tighten nuts(F&J) and moun�ng screws(G) in order from underneath the moun�ng nuts(F&J) and mounitng screws(G) with screwdriver countertop to the faucet.
- Page 7 Installa�on Guide Install The Drain Body Prepare The Pop-up Assembly a Apply silicone sealant (not included) under the drain flange (L) a Remove the pop up stopper (K) and drain flange (L) and place the drain flange (L) over the drain hole in the sink. from the drain body (O).
- Page 8 Check The Opera�on Of The Pop Up Operate the li� rod (R) up and down to verify that the stopper (K) opens and closes correctly. STEP 6: FLUSH SYSTEM/CHECK FOR LEAKS Remove aerator set(24, 25) from spout. Turn faucet on and let the water run for 60 seconds to flush any debris.
