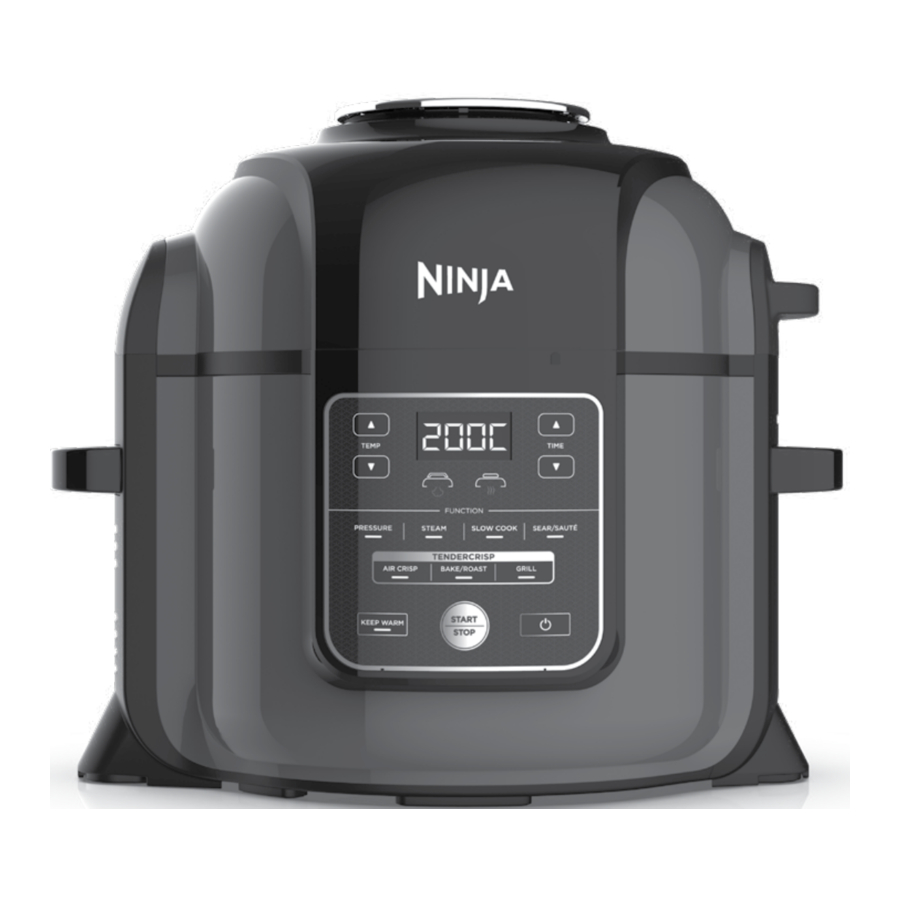

Ninja Foodi MAX OP450UK Manual

PARTS & ACCESSORIES

PARTS

1. Top Tier (Lower rack)
2. Reversible Rack
3. Cook & Crisp Basket ^TM
4. Detachable Diffuser
5. 7.5L Removable Cooking Pot
6. Crisping Lid
7. Heat Shield
8. Control Panel
9. Cooker Base
10. Pressure Lid
11. Pressure Release Valve
12. Float Valve
13. Silicone Ring
14. Anti-Clog Cap
15. Air Outlet Vent
16. Condensation Collector

To order additional parts and accessories, visit ninjakitchen.co.uk or contact Customer Service at 0800 862 0453.

ACCESSORY ASSEMBLY INSTRUCTIONS
2 TIER REVERSIBLE RACK

1. Place the reversible rack in the pot in the lower position.
2. Drop the lower rack through the reversible rack handles.

COOK & CRISP BASKET ^TM

1. To remove diffuser for cleaning, pull 2 diffuser fins off the groove on the basket, then pull down firmly.
2. To assemble the Cook & Crisp Basket, place basket on top of diffuser and press down firmly.

USING THE CONTROL PANEL

NOTE: Control panel may differ per model.

COOKING FUNCTIONS
PRESSURE: Use to cook food quickly while maintaining tenderness.
STEAM: Use to gently cook delicate foods at a high temperature.
SLOW COOK: Cook your food at a lower temperature for longer periods of time.
SEAR/SAUTÉ: To use the unit as a stovetop for browning meats, sautéing vegetables, simmering sauces and more.
AIR CRISP: Give foods crispiness and crunch with little to no oil.
BAKE/ROAST: Use the unit like an oven for tender meats, baked treats and more.
GRILL: Use high temperature to caramelise and brown your food.
NOTE: If running for 1 hour or less, the clock will count down by minutes and seconds. If running for more than 1 hour, the clock will count down by minutes only.

OPERATING BUTTONS
TEMP: Use the up and down TEMP arrows to adjust the cook temperature and/or pressure level.
TIME: Use the up and down TIME arrows to adjust the cook time.
NOTE: While cooking, to adjust temp or time, use the up and down arrows. The unit will then resume at those settings.
START/STOP button: After selecting your cooking temperature (or pressure) and cooking time. Press the START/STOP button to begin the cooking process. This can be stopped by pressing the button which the unit is in operation.
KEEP WARM: After pressure cooking, steaming, or slow cooking, the unit will automatically switch to Keep Warm mode and start counting up. Keep Warm will stay on for 12 hours, or you may press KEEP WARM to turn it off. Keep Warm mode is not intended to warm food from a cold state but to keep it warm at a food-safe temperature.
POWER: The Power button shuts the unit off and stops all cooking modes.
STANDBY mode: After 10 minutes with no interaction with the control panel, the unit will enter standby mode.

BEFORE FIRST USE

1. Remove and discard any packaging material, promotional labels, and tape from the unit.
2. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
3. Wash the pressure lid, silicone ring, removable cooking pot, Cook & Crisp™ Basket, reversible rack, and condensation collector in hot, soapy water, then rinse and dry thoroughly. NEVER clean the cooker base in the dishwasher. Inspect the pressure lid to ensure there is no debris blocking the valves.
4. The silicone ring is reversible and can be inserted in either direction. Insert the silicone ring around the outer edge of the silicone ring rack on the underside of the lid. Ensure it is fully inserted and lies flat under the silicone ring rack.


INSTALLING THE CONDENSATION COLLECTOR
To install the condensation collector, slide it into the slot on the cooker base. Slide it out to remove it for hand-washing after each use.

REMOVING & REINSTALLING THE ANTI-CLOG CAP
Make sure your anti-clog cap is in the correct position before using the pressure lid. The anti-clog cap protects the inner valve of the pressure lid from clogging and protects users from potential food splatters. It should be cleaned after every use with a cleaning brush. To remove hold the anti-clog cap between your thumb and bent index finger, then rotate your wrist clockwise to remove. To reinstall, position it in place and press down.

NOTE: Prior to each use, make sure the silicone ring is well seated in the silicone ring rack and the anti-clog cap is mounted properly on the pressure release valve.

USING YOUR FOODI® MULTI-COOKER®

SWAP THE TOP
The two lids allow you to seamlessly transition between all your favourite cooking methods. Use the pressure lid to tenderise, then use the crisping lid to crisp up your food.

USING THE CRISPING LID
The crisping lid is attached to the unit and can be opened at any time to check on your food during the cooking process. When the lid is opened, the timer will pause, and the heating element will turn off. When the lid is closed, cooking will begin again and the timer will resume counting down.

USING THE COOKING FUNCTIONS WITH THE CRISPING LID
To turn on the unit, plug the power cord into a wall socket, then press the .

Air Crisp

1. Place either the Cook & Crisp™ Basket or reversible rack in the pot. Basket should have diffuser attached.

2. Add ingredients to the Cook & Crisp Basket or reversible rack. Close the lid.

3. Press the Air Crisp button. The default temperature setting will display. Use the up and down TEMP arrows to choose a temperature between 150˚C and 200˚C

4. Use the up and down TIME arrows to set the cook time in minute increments up to 1 hour. Press START/STOP to begin cooking.

5. During cooking, you can open the lid and lift out the basket to shake or toss ingredients for even browning, if needed. When done, lower basket back into pot and close lid. Cooking will automatically resume after lid is closed.

6. When cook time is complete, the unit will beep and display DONE.

Grill

1. Place the reversible rack in the pot in the higher grill position or follow the directions in your recipe.

2. Place ingredients on the rack, then closethe lid.

3. Press the GRILL button.
   NOTE: There is no temperature adjustment available or necessary when using the Grill function.

4. Use the up and down TIME arrows to set the cook time in minute increments up to 30 minutes.

5. Press START/STOP to begin cooking.
6. When cook time is complete, the unit will beep and display DONE.


Bake/Roast

1. Add ingredients and any accessories to the pot. Close the lid.
2. Press the BAKE/ROAST button. The default temperature setting will display. Use the up and down TEMP arrows to choose a temperature between 150˚C and 200˚C.

3. Use the up and down TIME arrows to set the cook time in minute increments up to 1 hour, 5-minute increments from 1 hour to 4 hours.

4. When cook time is complete, the unit will beep and display DONE.


WATER TEST: GETTING STARTED PRESSURE COOKING
It is recommended that first-time users do the water test to familiarise themselves with Pressure Cooking.

1. Place the pot in the cooker base and add 750ml of room-temperature water to the pot.

2. Assemble the pressure lid by aligning the arrow on the front of the lid with the arrow on the front of the cooker base. Then turn the lid clockwise until it locks into place.

3. Make sure the pressure release valve is in the SEAL position.

4. Turn the unit on. Press the PRESSURE button, the unit will default to high (HI) pressure. Set the time to 2 minutes. Press the START/STOP button to begin.

5. The display showing PRE and some steam release indicate pressure is building. When fully-pressurised, countdown will begin.
   NOTE: Time to pressure varies and may take up to 15 minutes.

6. When the countdown is finished, the unit will beep and display DONE before automatically switching to KEEP WARM mode, and begin counting up.

7. Turn the pressure release valve to the VENT position to quick release the pressurised steam. There will be a burst of steam from the pressure release valve. When steam is completely released, float valve will drop and the lid can be opened.


PRESSURISING
As pressure builds in the unit, the control panel will display PRE. Time to pressure varies based on the amount and temperature of ingredients as well as liquid in the pot. For safety, the lid will lock as the unit pressurizes, and it will not unlock until pressure is released. Once the unit has reached full pressure, the cooking cycle will begin and the timer will start counting down.

NOTE: It can take upwards of 20 minutes to build pressure.

INSTALLING & REMOVING THE PRESSURE LID
Place the pressure lid on top of the unit with the on the lid and the on the base lined up evenly. Turn the lid clockwise until it locks in place.
To unlock the pressure lid, turn it counterclockwise. Lift the lid at an angle to prevent splatter. Do not lift the lid straight up.
NOTE: The pressure lid will not unlock until the unit is completely depressurised.


Serious burns can result from the steam inside. ALWAYS lift and tilt the lid towards you when removing.

USING THE COOKING FUNCTIONS WITH THE PRESSURE LID
To turn on the unit, plug the power cord into a plug socket, then press the .

Pressure Cook

1. Place ingredients and at least 250ml of liquid in the pot, as well as any neccessary accessory. DO NOT fill the pot past the PRESSURE MAX line.
   NOTE: When cooking rice, beans or other ingredients that expand, DO NOT fill the pot more than halfway

2. Install the pressure lid and turn the pressure release valve to the SEAL position.

3. Press the PRESSURE button. The default pressure level will display. Use the up and down TEMP arrows to select either HIGH or LOW.
   NOTE: If running for 1 hour or less, the clock will count down by minutes and seconds. If running for more than 1 hour, the clock will count down by minutes only.

4. Use the up and down TIME arrows to set the cook time in minute increments up to 1 hour, and in 5-minute increments from 1 hour to 4 hours.

5. Press the START/STOP button. The display will show rotating lights during this time. When the unit reaches the proper temperature, the time you set will begin counting down.
   NOTE: Time to pressure varies and may take up to 15 minutes.

6. When cooking is complete, the unit will beep, automatically switch to Keep Warm mode and begin counting up.
   NOTE: After cooking is complete, you may press KEEP WARM to turn the Keep Warm mode off.

7. Let the unit naturally release pressure or, if the recipe instructs, turn the pressure release valve to the VENT position to quick release the steam.


Steam

1. Add 250ml of liquid (or recipe-specified amount) to the pot, then place the reversible rack or Cook & Crisp^TM Basket with ingredients in the pot.

2. Install the pressure lid and turn the pressure release valve to the VENT position.

3. Press the STEAM button. Use the up and down TIME arrows to set the cook time in minute increments up to 30 minutes.
   NOTE: There is no temperature adjustment when using the STEAM function.

4. Press the START/STOP button.
5. The unit will begin preheating to bring the liquid to a boil. The display will show rotating lights during this time. When the unit reaches the proper temperature, the time you set will begin counting down.

6. When cook time is complete, the unit will beep and automatically switch to Keep Warm mode and begin counting up. Ensure the float valve has dropped before opening the lid.
   NOTE: After cooking is complete, you may press the KEEP WARM button to turn the Keep Warm mode off.


Slow Cook

1. Add ingredients to the pot. DO NOT fill the pot past the MAX line.
2. Install the pressure lid and turn the pressure release valve to the VENT position.

3. Press the SLOW COOK button. The default temperature setting will display. Use the up and down TEMP arrows to select either Slow Cook HIGH or LOW.

4. Use the up and down TIME arrows to set the cook time in 15-minute increments up to 12 hours.

5. Press START/STOP to begin cooking.
   NOTE: The Slow Cook HIGH time setting may be adjusted between 4 and 12 hours; the Slow Cook LOW time setting may be adjusted between 6 and 12 hours.
6. When cook time is complete, the unit will beep, automatically switch to Keep Warm mode, and begin counting up.
   NOTE: After cooking is complete, you may press KEEP WARM to turn the Keep Warm mode off.

Sear/Sauté

1. Add ingredients to the pot.
2. Press the SEAR/SAUTÉ button. The default temperature setting will display. Use the up and down TEMP arrows to select one of the setting options: LO, LO:MD, MD, MD:HI or HI.
   NOTE: There is no time adjustment available when using the Sear/Sauté function.

3. Press START/STOP to begin cooking.
4. Press START/STOP to turn off the SEAR/SAUTÉ function. To switch to a different cooking function, press the corresponding function button.
   NOTE: You can use this function with the crisping lid open or with the pressure lid with the pressure release valve in the VENT position.
   NOTE: ALWAYS use non-stick-safe utensils in the cooking pot. DO NOT use metal utensils, as they will scratch the non-stick coating on the pot.

ACCESSORIES FOR PURCHASE

Ninja offers a variety of accessories custom made for your Ninja® Foodi® Multi-Cooker. Visit ninjakitchen.co.uk to expand your capabilities and take your cooking to the next level.

Cooking Pot
An extra pot so you can keep the fun going when your other pot is already full of delicious food.

Multi-Purpose Silicone Sling
Easily lift ingredients and pans into and out of the cooking pot.

Multi-Purpose Tin
Create casseroles, dips, and sweet and savory pies, or bake a fluffy, moist cake with a golden top for dessert. D22cm H6cm.

Folding Crisping Rack
Cook an entire pack of bacon or turn tortillas into taco shells.

Loaf Tin
Our specially designed pan is the perfectly sized baking accessory for bread mixes like banana and courgette. L21cm x W11cm x H9cm approx.

Glass Lid
See into the pot during multiple cooking functions, then use to transport or store easily.

Extra Pack of Silicone Rings
2-pack silicone ring set helps keep flavours separate—use one when cooking savory foods and the other when cooking sweet foods.

Skewer Stand
Create up to 15 delicious homemade kebabs, from spicy chicken to halloumi and vegetable skewers.
NOTE: This accessory is only compatible with this 7.5L model.

CLEANING & MAINTENANCE

Cleaning: Dishwasher & Hand-Washing

The unit should be cleaned thoroughly after every use.

1. Unplug the unit from the wall socket before cleaning.
2. To clean the cooker base and the control panel, wipe them clean with a damp cloth.
3. The pressure lid cooking pot, silicone ring, reversible rack, Cook & Crisp™ Basket and detachable diffuser can be washed in the dishwasher.
   NOTE: NEVER put the cooker base in the dishwasher, or immerse it in water or any other liquid.
4. The pressure release valve and anti-clog cap, can be washed with water and dish soap.
5. To clean the crisping lid, wipe it down with a wet cloth or paper towel after the heat shield cools.
6. If food residue is stuck on the cooking pot, reversible rack, or Cook & Crisp Basket, fill the pot with water and allow to soak before cleaning. DO NOT use scouring pads. If scrubbing is necessary, use a non-abrasive cleanser or liquid dish soap with a nylon pad or brush.
7. Air-dry all parts after each use.
   NOTE: DO NOT take apart the pressure release valve or float valve assembly.

Removing & Reinstalling the Silicone Ring

To remove the silicone ring, pull it outward, section by section, from the silicone ring rack. The ring can be installed with either side facing up. To reinstall, press it down into the rack section by section.
After use, remove any food debris from the silicone ring and anti-clog cap.
Keep the silicone ring clean to avoid odour Washing it in warm, soapy water or in the dishwasher can remove odour. However, it is normal for it to absorb the smell of certain acidic foods. It is recommended to have more than one silicone ring at hand. You can purchase additional silicone rings on ninjakitchen.co.uk
NEVER pull out the silicone ring with excessive force, as this may deform it and the rack and affect the pressure-sealing function. A silicone ring with cracks, cuts, or other damage should be replaced immediately.

TROUBLESHOOTING GUIDE

Why is my unit taking so long to come to pressure?

• Pressure build times may vary based on the selected temperature, current temperature of the cooking pot, and temperature or quantity of the ingredients.
• Check to make sure your silicone ring is fully seated and flush against the lid. If installed correctly, you should be able to tug lightly on the ring to rotate it.
• Check that the pressure lid is fully locked, and the pressure release valve is in the SEAL position when pressure cooking.

Why is the time counting down so slowly?

• You may have set hours rather than minutes. When setting time, the display will show HH:MM and the time will increase/decrease in minute increments.

How can I tell when the unit is pressurising?

• The rotating lights will display on the screen to indicate the unit is building pressure.

Lights are rotating on the display screen when using the Pressure or Steam function.

• This indicates the unit is building pressure or preheating when using STEAM or PRESSURE. When the unit has finished building pressure, your set cook time will begin counting down.

There is a lot of steam coming from my unit when using the Steam function.

• It's normal for steam to release through the pressure release valve during cooking. Leave the pressure release valve in the VENT position for Steam, Slow Cook, and Sear/Sauté.

Why can't I take the pressure lid off?

• As a safety feature, the pressure lid will not unlock until the unit is completely depressurised. Turn the pressure release valve to the VENT position to quick release the pressurised steam. A quick burst of steam will spurt out of the pressure release valve. When the steam is completely released, the unit will be ready to open. Turn the pressure lid counterclockwise, then lift it up and away from you.

Is the pressure release valve supposed to be loose?

• Yes. The pressure release valve's loose fit is intentional; it enables a quick and easy transition between SEAL and VENT and helps regulate pressure by releasing small amounts of steam during cooking to ensure great results. Please make sure it is turned as far as possible toward the SEAL position when pressure cooking and as far as possible toward the VENT position when quick releasing.

The unit is hissing and not reaching pressure

• Make sure the pressure release valve is turned to the SEAL position. If you've done this and still hear a loud hissing noise, it may indicate your silicone seal is not fully in place. Press START/STOP to stop cooking, VENT as necessary, and remove the pressure lid. Press down on the silicone ring, ensuring it is fully inserted and lies flat under the ring rack. Once fully installed, you should be able to tug lightly on the ring to rotate it.

The unit is counting up rather than down

• The cooking cycle is complete and the unit is in Keep Warm mode.

How long does the unit take to depressurise?

• Quick release is about 2 minutes or less. Natural release can take up to 20 minutes or more, depending on the type of food and/or the amount of liquid and food in the pot.

"POT" error message appears on display screen

• Cooking pot is not inside the cooker base. Cooking pot is required for all functions.

"LID" error message appears on display screen and lid icon flashes.

• The incorrect lid is installed for your desired cooking function. Install the pressure lid to use the Pressure, Slow Cook, Steam, or Keep Warm functions.

"SHUT" error message appears on display screen

• The crisping lid is open and needs to be closed for the selected function to start.

"TURN" error message appears on display screen

• The pressure lid is not fully installed. Turn the pressure clockwise until it clicks to use the Pressure, Slow Cook, Steam and Keep Warm functions.

"VENT" error message appears on display screen

• When set to Slow Cook or Sear/Sauté, and the unit senses pressure building up, this message indicates the pressure release valve is in the SEAL position.
• Turn the pressure release valve to the VENT position and leave it there for the remainder of the cooking function.
• If you do not turn the pressure release valve to the VENT position within 5 minutes, the program will cancel and the unit will shut off.

"WATR" error message appears on display screen when using the Steam function.

• The water level is too low. Add more water to the unit for the function to continue.

"WATR" error message appears on display screen when using the Pressure function.

• Add more liquid to the cooking pot before restarting the pressure cook cycle.
• Make sure the pressure release valve is in the SEAL position.
• Make sure the silicone ring is installed correctly.

"ERR" message appears

• The unit is not functioning properly. Please contact Customer Service at 0800 862 0453.

HELPFUL TIPS

1. For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the cooking pot with no overlapping. If ingredients are overlapping, make sure to shake half way through the set cook time.
2. For smaller ingredients that could fall through the reversible rack, we recommend first wrapping them in a parchment paper or foil pouch.
3. W hen switching from pressure cooking to using the crisping lid it is recommended to empty the pot of any remaining liquid for best crisping results.
4. U se the Keep Warm mode to keep food at a warm, food-safe temperature after cooking. To prevent food from drying out, we recommend keeping the lid closed and using this function just before serving. To reheat food, use the Air Crisp function.
5. Press and hold down the TIME up or down arrow to get to your desired time faster.

VISIT US ONLINE AT: ninjakitchen.co.uk

Or follow us on any of our social media pages:

@ninjakitchenuk
NOTE: Save these instructions. Keep for future reference.

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE
Read all instructions before using your Ninja® Foodi®. When using electrical appliances, basic safety precautions should always be followed, including the following:

	Indicates to read and review instructions to understand operation and use of product.
	Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.
	Take care to avoid contact with hot surface. Always use hand protection to avoid burns.
	For indoor and household use only.

SAVE THESE INSTRUCTIONS

REGISTER YOUR PURCHASE

ninjakitchen.co.uk/registerguarantee
Scan QR code using mobile device

RECORD THIS INFORMATION
Model Number:
Serial Number:
Date of Purchase: (Keep receipt)
Store of Purchase:

TECHNICAL SPECIFICATIONS
Voltage: 230V~, 50Hz
Watts: 1760W
Volume: 7.5L
Fluid Group: 2
