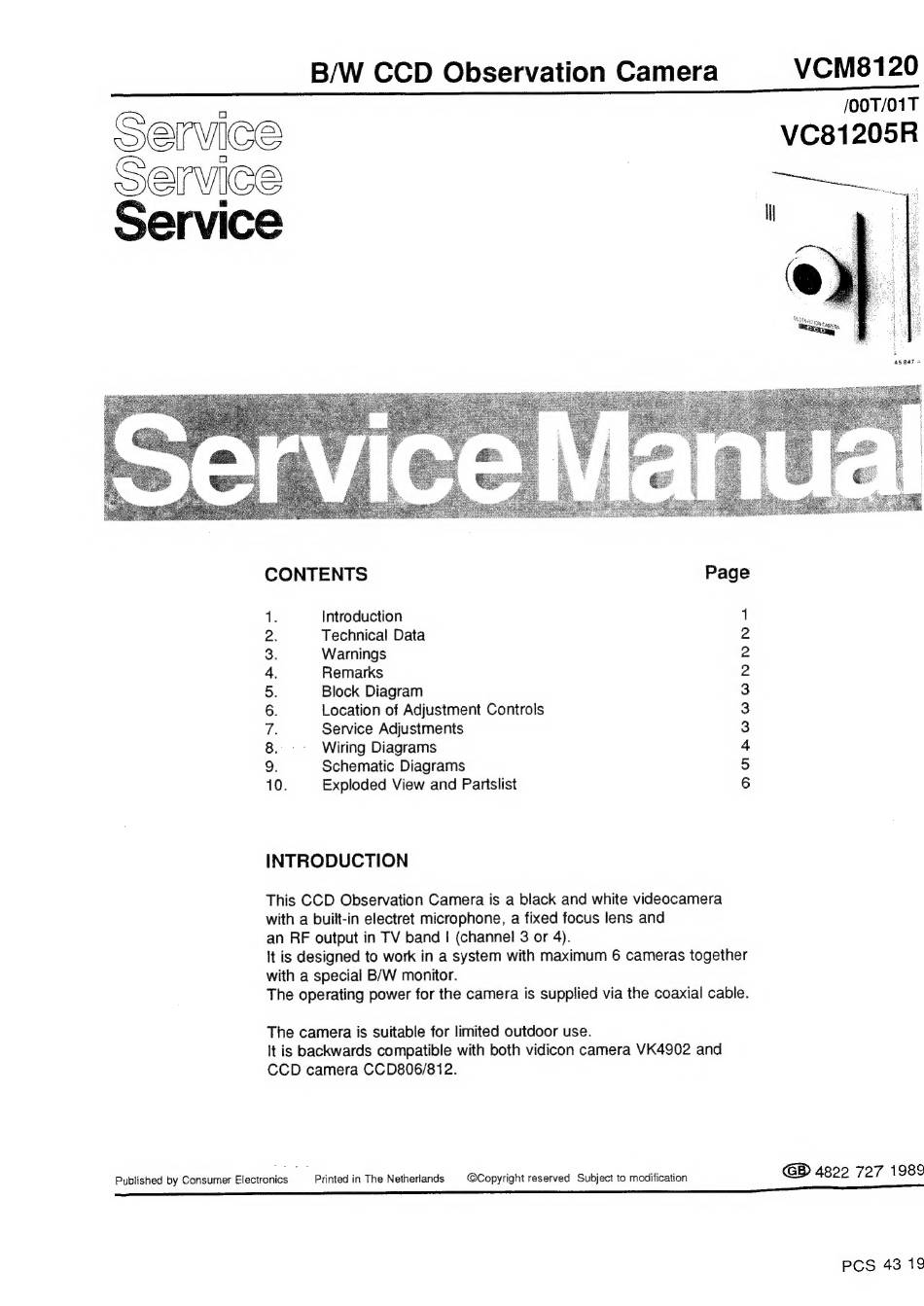

Philips VCM8120 Service Manual

45847 &
CONTENTS
As
2.
3.
4.
5.
6.
7.
8. z a " d h
9.
1
INTRODUCTION
Uv » vo} 1)
Introduction
Technical Data
Warnings
Remarks
Block Diagram
Location of Adjustment Controls
Service Adjustments
Wiring Diagrams
Schematic Diagrams
0. Exploded View and Partslist
OAMARWBWWNNN +
This CCD Observation Camera is a black and white videocamera
with a built-in electret microphone, a fixed focus lens and
an RF output in TV band | (channel 3 or 4).
It is designed to work in a system with maximum 6 cameras together
with a special B/W monitor.
The operating power for the camera is supplied via the coaxial cable.
The camera is suitable for limited outdoor use.
It is backwards compatible with both vidicon camera VK4902 and
CCD camera CCD806/812.
