Giant XTC 1 - DATASHEET 2 Datasheet

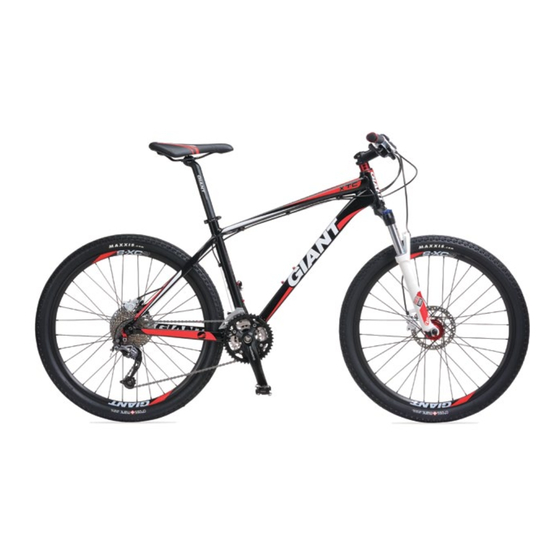

XTC 1
Specifications
siZes XS,S,M,L
CoLour Black / Red
FrAme ALUXX SL-grade aluminum
RockShox Recon, lockout,
Fork
100mm travel
shoCk N/A
hAnDLeBAr Giant Connect riser 31.8mm
stem Giant Connect
seAtpost Giant Connect 30.9x375mm
sADDLe Giant Performance MTB
peDALs Shimano M505
shiFters Shimano Deore
Front DerAiLLeur Shimano Deore
reAr DerAiLLeur Shimano SLX Shadow long cage
BrAkes Shimano M445 160mm hydraulic disc
BrAke Levers Shimano M445
CAssette Shimano HG50 11-34T 9SPD
ChAin KMC HG73
CrAnkset Shimano M542 22/32/44T
Bottom BrACket Shimano internal press fit
rims Giant S-XC2 32H
huBs F:Giant Tracker / R:Shimano M475
spokes Stainless Steel 14/15g
tires Maxxis Crossmark 26x2.1"
extrAs
Specifications and availability subject to change without notice.
$
Spec Features
— RockShox Recon fork w/ 100mm travel
— Shimano Deore/SLX drivetrain w/Shimano hydraulic disc brakes
— Giant Connect handlebar, stem & seatpost
frame geometry
A B C
Actual part head seat
Frame size number Angle Angle*
inches degrees degrees
XS 14.5 2112000 70.5 73.0
S 16 2112001 70.5 73.0
M 18 2112002 70.5 73.0
L 20 2112003 70.5 73.0
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
D E F
toptube** headtube Chainstay wheelbase
inches inches inches inches
21.9 4.6 16.4 41.2
22.6 4.6 16.4 41.8
23.4 5.1 16.4 42.4
24.2 5.7 16.4 43.2
103
G H
standover
height***
inches
27.9
28.4
29.5
30.4
