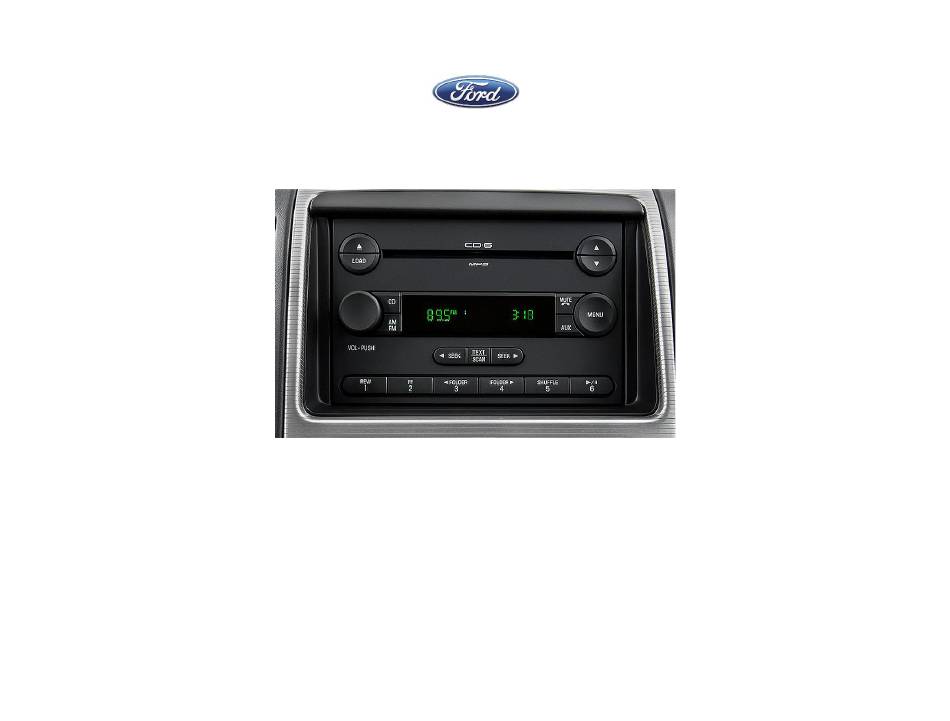

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 FRD04-AUX QUICK START INSTALLATION GUIDE FOR SELECT 2004-10 FORD, LINCOLN, MERCURY Created, June 20, 2024 Revised May 30, 2025...
- Page 2 FORD CAN-BUS RADIOS (AUX BUTTON ON FACEPLATE) Introduction Ford CAN-BUS radio owners will be pleased to find they are now able to connect and play many portable audio devices without changing the look and feel of the dashboard components. The FRD04-AUX connects to the 16-pin media port on the radio which guarantees the best quality playback from any audio device with a Fig.
- Page 3 (within 3 ft.) 9. Connect installation harness 16-pin plug (See Fig. 8) to module 16-pin *Note: Ford OEM wires colors may vary, however the ACC pin location is connector (See Fig. 9) the same (PIN2) as noted in Fig.
- Page 4 Optional USB extension cable installation Notes: 1. Optional 6 ft. USB dash mount extension cable is not required for operation; however, it extends USB charging port (See Fig. 12) to dashboard, glovebox etc. The USB port supports charging only Drill a ¾” hole to dash or panel using a step drill bit or equivalent (See Fig. 10) Fig.
-
Page 5: Operation
4. Can I use the radio buttons to control audio device 3.5mm Male audio cable YES; the FRD04-AUX supports TRRS (must use 4-pin audio cable) and audio 3. Press the radio AUX button. device must also support TRRS which allows the radio SEEK button to tack Note: If radio does not switch to AUX, cycle ignition OFF/ON and try again.
