Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K

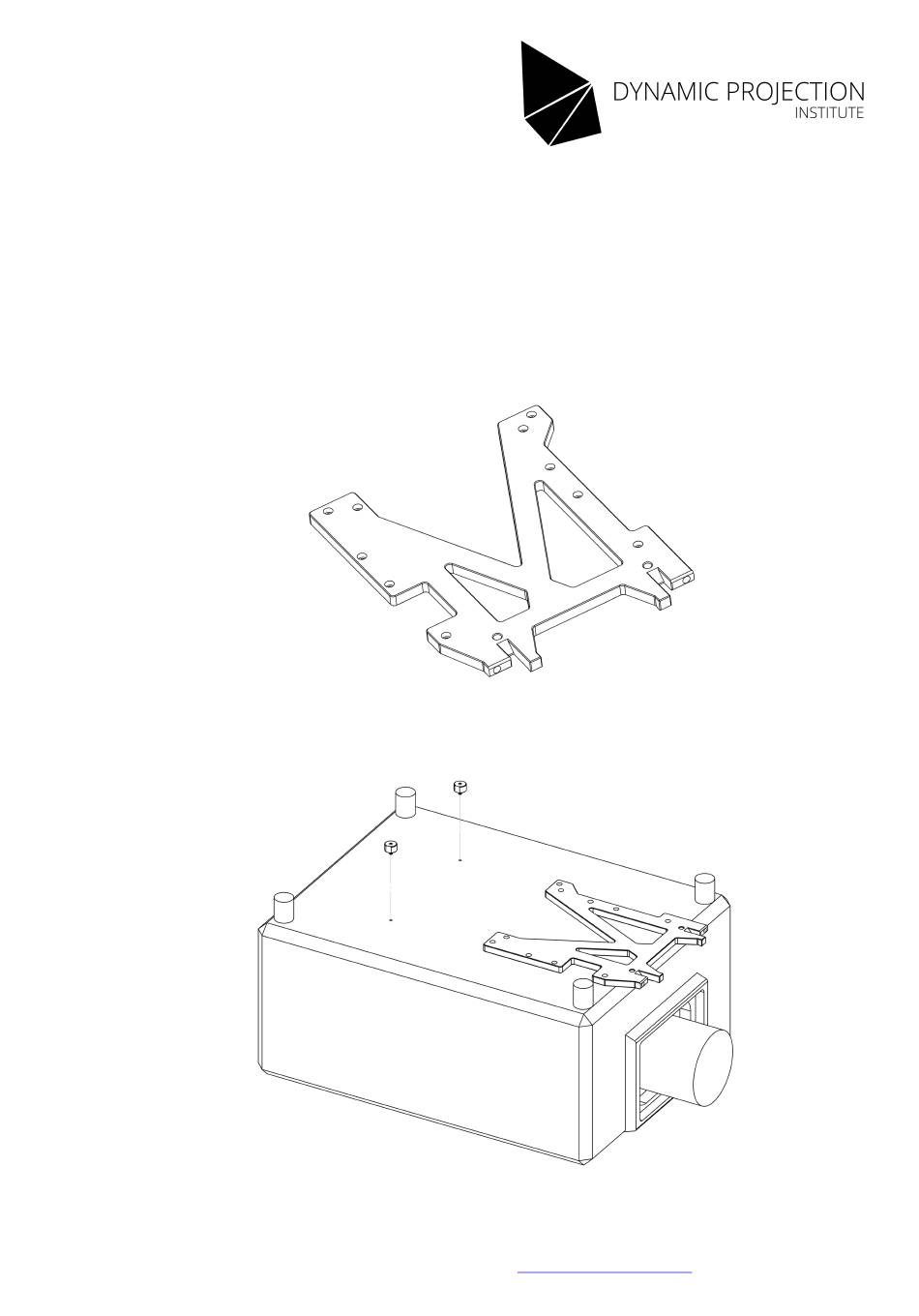

Place the projector base plate MHB-1402 onto the projector and secure the two
1.
spacers MHZ-15M6. Ensure that the correct side is facing upward.
Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors.
@2025 Dynamic Projection Institute GmbH /
www.dynamicprojection.com
Page - 1
Advertisement
Related Manuals for Dynamic Projection MHB-1402
Summary of Contents for Dynamic Projection MHB-1402
- Page 1 Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K Place the projector base plate MHB-1402 onto the projector and secure the two spacers MHZ-15M6. Ensure that the correct side is facing upward. Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors.
- Page 2 Mount the ULS Pole P135 onto the ULS base plate ULS-BP05 using the 4x M6 x 16 countersunk screws as shown below. Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors. @2025 Dynamic Projection Institute GmbH / www.dynamicprojection.com Page - 2...
- Page 3 Mount the ULS Base plate ULS-BP05 onto the projector base plate MHB-1402 by using 2x M6 x 20 socket screw and from below 2x M6 x 10 socket screws. Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors. @2025 Dynamic Projection Institute GmbH / www.dynamicprojection.com...
- Page 4 The appropriate mirror size and mounting setup depend on your projector’s throw ratio and optical parameters. For support with alternative configurations, please contact us. Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors. @2025 Dynamic Projection Institute GmbH / www.dynamicprojection.com Page - 4...
- Page 5 Place the ring clamp over the ball head, push the ball head in the ULS Pole ball socket and secure the position with the locking lever. Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors. @2025 Dynamic Projection Institute GmbH / www.dynamicprojection.com Page - 5...
- Page 6 Please consult the manual on our website for complete guidance. https://www.dynamicprojection.com/uls-support Mounting guide ULS Mirror – Panasonic PT-RQ35K / RZ34K projectors. @2025 Dynamic Projection Institute GmbH / www.dynamicprojection.com Page - 6...
