Mirror Head Quick Installation Guide
For the full manual please visit
Mirror Head Quick Installation
Guide
For MH33
2
1

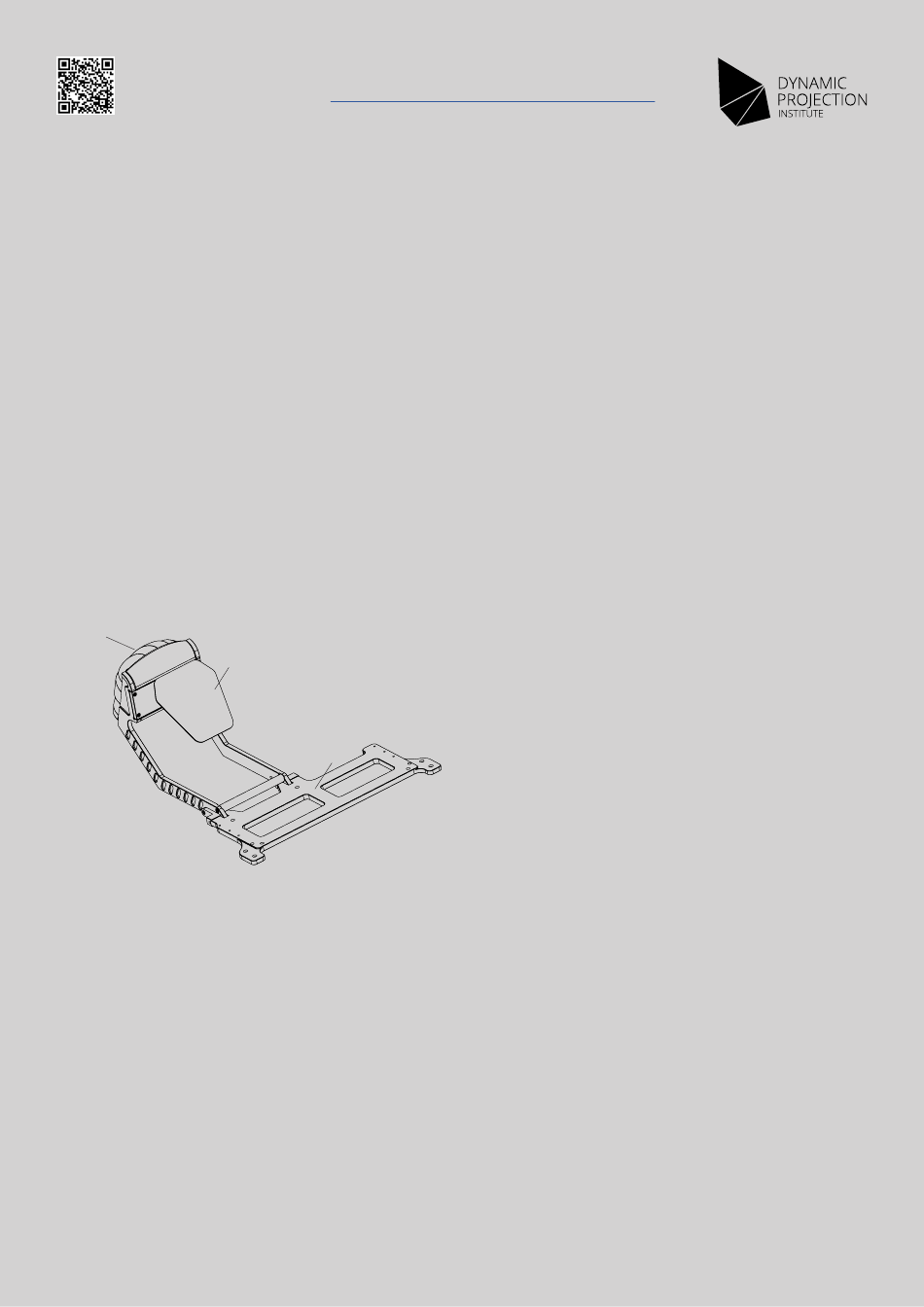

1.
Surface coated mirror
2.
Mirror Head control unit
3.
Mirror Head base plate
Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Copyright © 2014 - 2022 Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
https://www.dynamicprojection.com/mh-support/
MH33
3
0
1
A
I
QIG - Version 2.8
