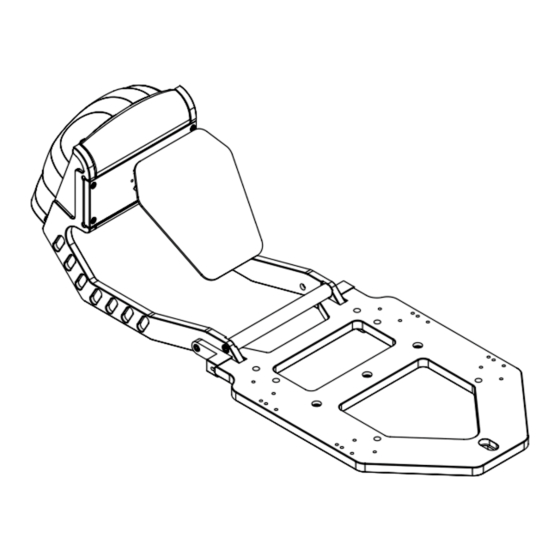

Mirror Head Manual
Manual for MH19 / MH23
VERSION: 2.7
Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
1
0
D
A
Version 2.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH23 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynamic Projection MH23

Summary of Contents for Dynamic Projection MH23

  • Page 1 Mirror Head Manual Manual for MH19 / MH23 VERSION: 2.7 Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate.

  • Page 2: Table Of Contents

    Trouble shoot / FAQ Appendix for Mirror Head manual Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 3: Introduction

    Warranty is void if the operator of the Mirror Head violates any safety and/or operation advice in this manual. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 4: Safety

    Check the device and the power-cord from time to time. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 5: Operating Determinations

    For the use of closed-type riggings such as half-coupler clamps Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 6: Package Contents

    A/C power input; 100V / 2A / 60Hz – 240V / 1A / 50Hz, 10A max. 3-prong C14 male socket - 3W Standby - max. 30W (see type plate on device for details) Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...

  • Page 7: Description Of The Device

    Surface coated mirror Mirror Head control unit Mirror Head base plate Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 8 Reference magnets Motor-drive-arm Reference screws Pan drive shaft BCDEFGH Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 9: Mirror Head Control Unit

    Control buttons for menu navigation LCD display 10. Control unit Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 10: Mirror Head Assembly

    All mounting operations must be carried out by a qualified person. WARNING: The Mirror Head and the projector can be very heavy – use a second person for help. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...

  • Page 11: Mounting Of The Projector

    NOTE: This step of the installation can be reversed. Connect the RS232 and AC power-cord to the projector and control unit. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 12 (Mirror position for adjustment = power on position) BCDEFGH Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 13: Mounting Of Accessories

    When mounting accessories please follow the installation instructions carefully and read the installation manual of the specific product. BCDEFGH Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 14: Mounting Of The Mirror Head

    Default Mode („90 Degrees“), this is the „90° Tilt“ mode available on all Mirror Head models. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 15: Setup And Adjustment

    Head see the „Using and operations“ section. operations“ section. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 16: Using And Operations (Dmx512 / Art-Net™)

    Operations either with DMX-512 or Art-Net™ DMX-512 are equivalent. To get the best movements of the mirror your DMX packet frequency should not be lower than 40Hz. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...
  • Page 17 To turn the projector ON send a value between 230 and 238 on DMX channel 9 for 3 seconds. To turn the projector OFF send a value between 250 and 255 on DMX channel 9 for 3 seconds. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...

  • Page 18: Mirror Head Control Unit Operations

    (UP) ▲ (DOWN) ▼ (MENU) Zero Position RESET Zero Position Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 19 RGB and intensity channel values. If the LEDs should be on no matter if there is a DMX signal or not, the fixed values can be set here. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...

  • Page 20: Service And Maintenance

    Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7...

  • Page 21: Trouble Shoot / Faq

    Yes, please contact our support for further information. can it be replaced? Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 22 Baud-rate settings on the projector are correct and that the serial communication is enabled. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 23 Every information is subject to change without prior notice Copyright (c) 2018 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH, Vienna, Austria Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

  • Page 24: Appendix For Mirror Head Manual

    Lens compatibility list for NEC projectors Mounting options Accessories Technical Productsheets Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 25 / off Picture orientation Shutter Lamp mode Power Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 26 Blue LED intensity reserved Valid for firmware version 1.3.26 Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 27 MH23 519 x 212 x 342 180° & 90° Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 28 MH23 Due to optical reasons we do not recommend this lens below a throw ratio of 1.6. Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 29 Mounting options MH19 NUT M10 VESA 200 Copyright © 2014 - 2022 by Dynamic Projection Institute GmbH. All rights reserved. http://www.dynamicprojection.com Version 2.7 Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
  • Page 30 Mirror Head / MH19 The illustrations may differ in some details from the original. Subject to change without prior notice. MH19 2020-12-22 office@dynamicprojection.com - www.dynamicprojection.com Copyright (c) 2014 - 2022 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved.
  • Page 31 Mirror Head: MH19 Frame: Projector: NEC PA653UL Fixture total: 27 kg NUT M10 VESA 200 Mirror Head / MH19 MH19 2020-12-22 office@dynamicprojection.com - www.dynamicprojection.com Copyright (c) 2014 - 2022 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved.
  • Page 32 Mirror Head / MH23 The illustrations may differ in some details from the original. Subject to change without prior notice. MH23 2022-01-13 office@dynamicprojection.com - www.dynamicprojection.com Copyright (c) 2014 - 2022 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved.
  • Page 33 Mirror Head: MH23 Projector: NEC-PH3501QL Fixture total: 177 kg Mirror Head / MH23 MH23 2022-01-13 office@dynamicprojection.com - www.dynamicprojection.com Copyright (c) 2014 - 2022 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved.
  • Page 34 Subject to change without prior notice. MHZ-LE8 2018-06-18 offi ce@dynamicprojection.com - www.dynamicprojection.com Copyright (c) 2018 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved. Copyright (c) 2014–2020 by Dynamic Projection Institute Herstellungs und Vertriebs GmbH. All Rights Reserved.
