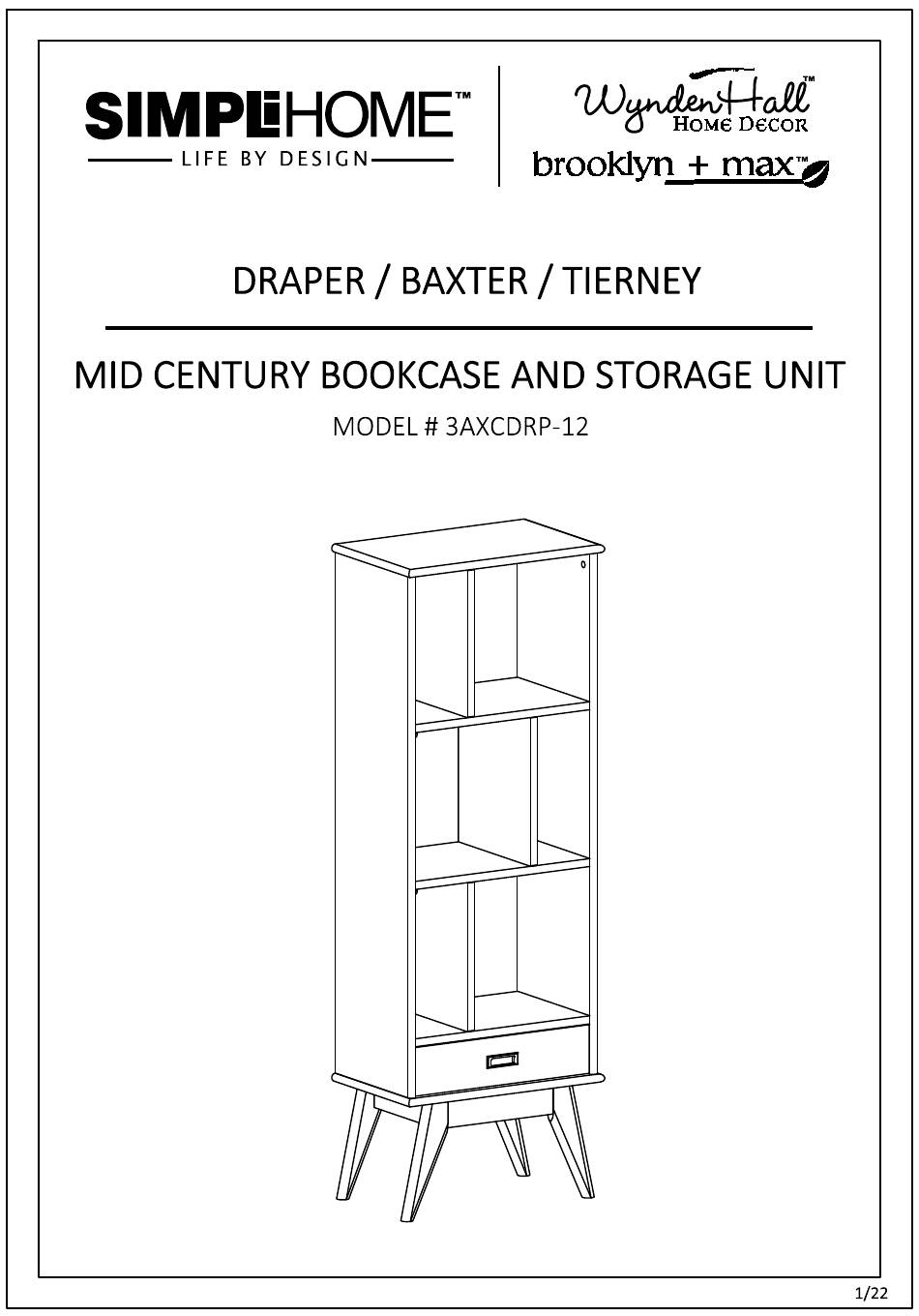

Summary of Contents for Simpli Home WyndenHall brooklin+max 3AXCDRP-12
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready: Model # _________________Part Number or Letter_____________________ Purchased at ____________Date of Purchase _________________________...
-
Page 5: Part Description
PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 DIVIDER QTY 3 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) 5/22... - Page 6 PART DESCRIPTION NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) 6/22...
-
Page 7: Hardware Description
HARDWARE DESCRIPTION PHILLIPS SCREW ROUND HEAD M4 X 15mm QTY 21 FURNITURE TIP OVER RESTRAINT QTY 1 SET 7/22... - Page 9 1. Attach four Cam Lock Pins 4 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides JL , JR . 3. Insert two Cam Locks 4 into pre-drilledd holes on each Drawer Side JL , JR . 4.
- Page 10 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through pre-drilled holes on each Drawer Side JL , JR . 3. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 15 1. Attach twelve Cam Lock Pins 4 to inside of Sides AL , AR ( six Cam Lock Pins on each Side). 2. Align Cam Lock Pins with pre-drilled holes and attach Cabinet Shelf F . 3. Insert six Cam Locks 4 into pre-drilled holes on each Cabinet Shelf F . 4.
- Page 16 1. Attach Bottom Shelf C to Sides AL , AR using six Allen Key Screws 1 (three Screws on each Side) . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 22 Thank you for purchasing a product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line at 1-866-518-0120 ext.
