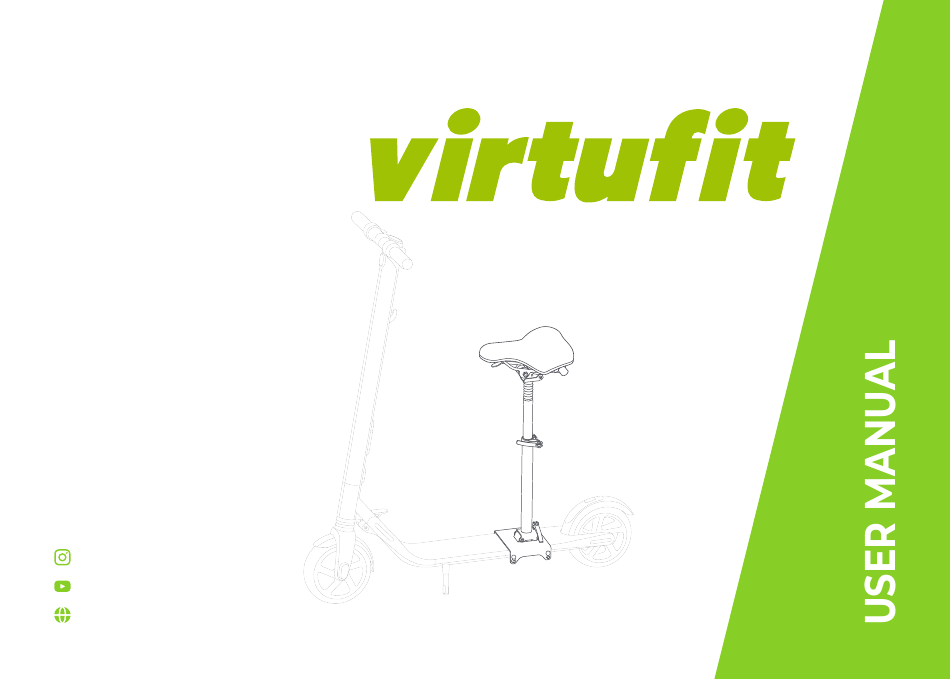

- Page 1 CityLine S200i E-Step Seat VF15005 @virtufit_fitness VirtuFit www.virtufit.com...
-
Page 2: Specifications
01 - TOOLKIT SPECIFICATIONS Including plastic tube 51–63 cm. This measurement does not include the Height Adjustment Range height from the ground to the E-step pedestal. Maximum user weight 100 kg Seat Post Saddle Kit ( 1 x) Foldable Base ( 1 x) Material Aluminium Alloy, Steel Forming... -
Page 3: Safety Instructions
OVERVIEW SAFETY INSTRUCTIONS • Ensure that the seat is securely mounted and the two quick releases are locked before each ride. • When folding the E-step, fold the seat first. • The E-step is intended for use by a single rider only. SEAT •... - Page 4 ASSEMBLY INSTRUCTIONS (STEP 01-04) STEP 01 - PLACE THE FOLDABLE BASE STEP 02 - LOCK THE SCREW • • Press the locking button. Place two plastic locking blocks between both sides of the bottom plates • Connect the seat stay to the locking button. and the E-Step.
- Page 5 STEP 03 - ALIGN SEAT MOUNTING HOLES STEP 04 - MOUNT SEAT POST OFFSET AND SEAT KIT • • Align the seat mounting holes with the recess holes of the two locking Unlock and adjust the seat post quick release. •...
-
Page 6: Adjusting The Seat
ADJUSTING THE SEAT FOLDING AND UNFOLDING WARNING! Make sure the seat is securely mounted before your ride. If it is WARNING! Make sure the seat is securely mounted before your ride. If it is not, use an outer hexaxon wrench to tighten the hexagon nut on the adjuster. not, use an outer hexaxon wrench to tighten the hexagon nut on the adjuster. - Page 7 RIDE BY SITTING WARNING! After mounting the seat, ensure all components are securely fastened, especially the two quick releases and the screws on the base, before enjoying a comfortable ride.
- Page 8 VIRTUFIT SERVICE VIRTUFIT Do you have a problem with your VirtuFit fitness Twekkelerweg 263 equipment and would you like to submit a service 7553 LZ Hengelo request? Then scan the QR code on the right and fill in The Netherlands our service form.
