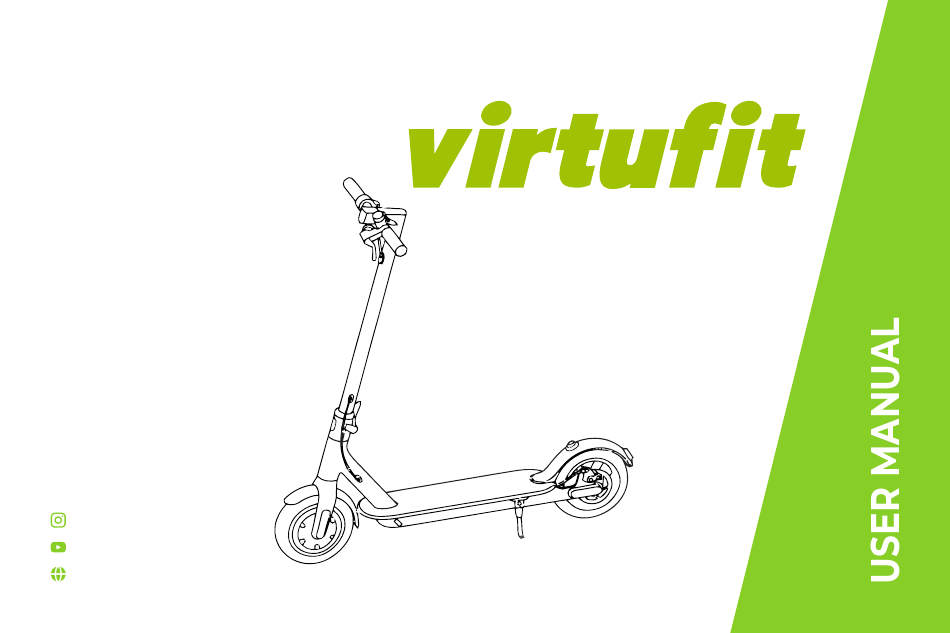

- Page 1 CityLine S200i VF15002 @virtufit_fitness VirtuFit www.virtufit.com...
-
Page 2: Specifications
01 - TOOLKIT SPECIFICATIONS Motor 450W Battery Capacity 36V - 10Ah / 3-4 hours charging time Standard Voltage Motor Type Strong Brushless Motor Maximum user weight 120 kg Recommended weight 45 - 100 kg Brake Type Front E-ABS and Rear Disc Brake S13-S15 Maximum Speed 31 km/h... - Page 3 02 - OVERVIEW ACCELERATOR SCOOTER BELL HANDLEBAR BRAKE LEVER HEADLIGHT FOLDING MECHANISM BUCKLE TAILLIGHT AIR TYRES DISC BRAKE KICKSTAND POWER MOTOR...
-
Page 4: Control Panel
CONTROL PANEL 1. SPEEDOMETER Displays the current speed and displays error codes. 2. MODES Three riding modes available. “ECO” for Energy Saving mode (top speed appro. 10km/h, smooth throttle, suitable for beginners), • “D” for Standard mode (top speed approx. 20km/h) and. •... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNING! This E-Step is a leisure device. But once they’re in a public area, they’ll be seen as vehicles, subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and regulations set forth by government and regulatory agencies. You should understand that risks cannot be entirely avoided as others may violate traffic regulations and drive incautiously. - Page 6 Do not accelerate when you go Look out for doors, elevators and other Do not press the accelerator when Do not ride in the rain. downhill. overhead obstacles. you’re walking alongside the E-Step. Keep your speed under 10 km/h and Do not hang bags or other heavy stuff slightly bend your knee when you ride Always steer clear of obstacles.
- Page 7 Do not ride in traffic lanes or residential Do not ride through puddles or any Do not turn the handlebar violently Do not ride with anyone else, including areas where vehicles and Pedestrians orher (water) obstacle. Please lower during high-speed riding. children.
-
Page 8: How To Ride
HOW TO RIDE WARNING! Wear a helmet, elbow pads and knee pads. Please read the instruction carefully before using. Do not touch the brake system. Refer to the instruction for more information. • Put on a helmet, elbow pads and knee pads (Fig. 1). •... -
Page 9: Folding And Carrying
FOLDING AND CARRYING Folding NOTE! The E-Step needs to be turned off before folding. FOLDING UNFOLDING • Pull the latch ring outwards. • Pull down the red handle and press down. • Then grab the pole and pull down to fold. •... - Page 10 ADJUSTING Adjusting the disc brake The brake is too tight • If the brake is too tight, use the 4 mm Allen key to loosen the screw on the caliper. • Then slightly adjust the brake line (decrease the exposed length), and tighten the screw again.
-
Page 11: Daily Care And Maintenance
When the E-Step not in use, keep it indoors where it is dry and cool. Do not put it outdoors for long time. Excessive sunlight, overheating and overcooling accelerate tire aging and compromise the E-Step and the battery pack’s lifespan. • For more information, please visit https://www.virtufit.nl/service/faq/... - Page 12 Charging NOTE! The E-Step is fully charged when the LED on the charger changes from red to green (D). • Lift up the rubber flap (A). • Plug the charging adapter into the charging port (B). • When charging is completed, put back the rubber flap (C). WARNING! •...
-
Page 13: App Store
• Installing the app. • Turn on the scooter. Turn on your Bluetooth, phone location and restart the App. • Click “Find Device and connect the device with Bluetooth name “scooter”. Wait for a few seconds until the phone jumps to the control interface or the Bluetooth icon appears on the scooter display, indicating that the Bluetooth connection is successful. - Page 14 VIRTUFIT SERVICE VIRTUFIT Do you have a problem with your VirtuFit fitness Twekkelerweg 263 equipment and would you like to submit a service 7553 LZ Hengelo request? Then scan the QR code on the right and fill in The Netherlands our service form.
