Quick Start Guide

Quick Start Guide for SM-L-RBM-T-ND

Logitech Rally Video Conference System

for Small Rooms

NOTE: This Quick Start guide is specifically for use with Logitech Rally

hardware ordered through Wesco Conference Room as a Service.

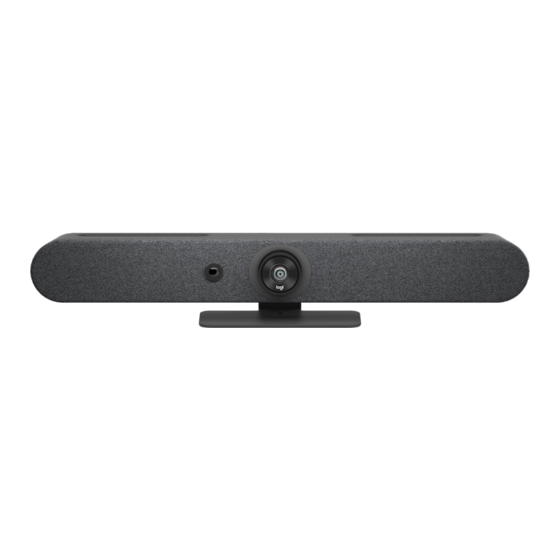

Logitech Rally Bar Mini

Scan this QR code for:

• Product information

• Live support

• Spec sheets

Need help?

Do you have a question about the Rally Bar Mini and is the answer not in the manual?

Page 1 Scan this QR code for: • Product information Logitech Rally Video Conference System • Live support • Spec sheets for Small Rooms NOTE: This Quick Start guide is specifically for use with Logitech Rally hardware ordered through Wesco Conference Room as a Service.
Page 2 Quick Start Guide Logitech Rally Bar Mini Cabling Key Power Cable # Cable Type Length USB 3.0 7.2 ft (2.2m) HDMI USB 3.0 1.64 ft (.5m) CAT6 Ethernet 7 ft (2.13m) HDMI 6.5 ft (2m) Power 4.9 ft (1.5 m) Power 6.5 ft (2m)
Page 3 Quick Start Guide Logitech Rally Bar Mini Wiring diagram Power This laptop is shown to HDMI demonstrate hardwired content sharing. Laptop is not required.
