Summary of Contents for Marantz AV20

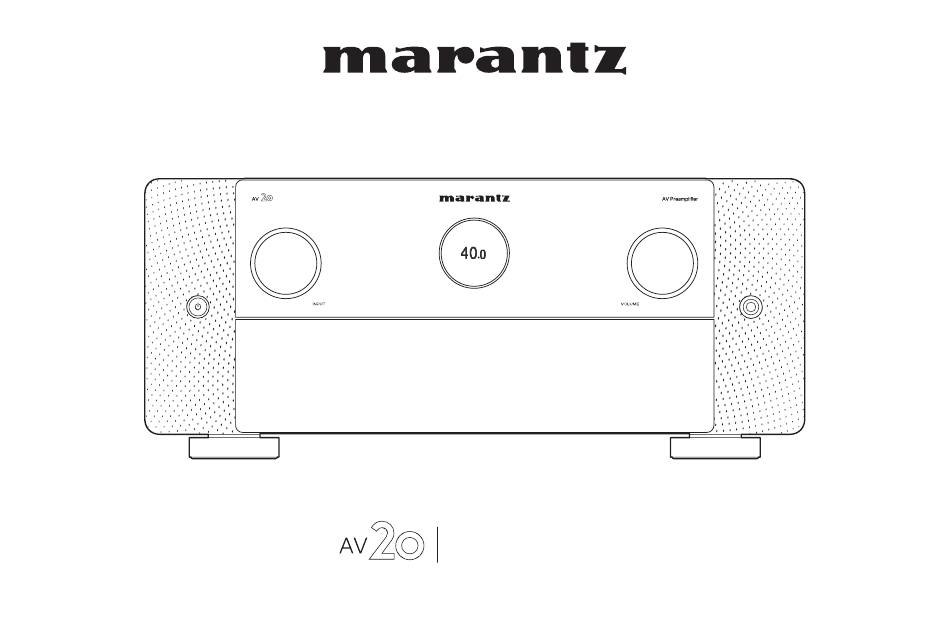

- Page 1 AV Preamplifi er QUICK START GUIDE...
- Page 2 This manual describes the procedure up until starting the Setup Assistant. Please do not return this unit to the store – call for assistance. If you need help… : If you need additional help in solving problems, contact Marantz customer service in your area. www.marantz.com...
- Page 3 Before you begin Required for setup Optional LAN cable Power amplifier Wi-Fi® router HDMI® cable Speakers / Speaker cables RCA cables XLR cables • When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable with Ethernet”...
- Page 4 What’s in the box Sound calibration Quick start guide Cable labels microphone stand Remote control Safety instructions AV 20 (RC051SR) Cautions on using Power cord 2× R03/AAA batteries batteries External antennas for Sound calibration Notes on radio Bluetooth®/wireless microphone connectivity •...
- Page 5 Attach the included cable labels The supplied cable labels include labels for the speaker and HDMI cables. Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below. This makes it easy to identify and properly connect the cables between your components.
- Page 6 Setup Connect the antennas Optional 1) Place the antenna evenly over the antenna terminal located If you are connecting the AV 20 to a wired network, connect an at the upper left or right corner of the rear panel. Ethernet cable (not included) between the AV 20 and your router. 2) Turn the antenna clockwise until it is fully connected.
- Page 7 Place the AV 20 and power amplifi er Connect the power cord near your TV AV 20 AV 20 Power cord Power amplifi er...
- Page 8 Connect the AV 20 to your TV Using a high-quality HDMI cable*, connect one end to the HDMI HDMI IN (ARC/eARC) port labeled “eARC” or “ARC” on your TV. Connect the other end to the HDMI OUT TV 1 port on your AV 20. What is ARC and eARC? Audio Return Channel or “ARC”...
- Page 9 Select the appropriate HDMI Turn on the TV input on your TV HDMI INPUT VIDEO TV remote control TV remote control...
- Page 10 Install batteries Turn on the AV 20 in the AV 20 remote control Press X on the remote control. • Batteries can be taken out in reversed order.
- Page 11 The Setup Assistant will walk you through connecting and configuring your power amplifier and components to your Marantz AV 20. Use the remote control and follow the AV Preamp Setup Assistant instructions on the TV screen to complete the AV 20 settings English using the Setup Assistant.
- Page 12 Firmware update If you see this screen after completing Setup Assistant, select Update Now to make sure your new AV 20 is up to date with the latest firmware and features. The following features are available for your AVP. Estimated time to install: Update Later Update Now...
- Page 13 AV 20. HEOS app Marantz AVR Remote The HEOS app allows you to explore, browse, and play music from Control your new AVR with the latest Marantz AVR Remote app. many online streaming services or from your own music library.
- Page 14 Owner’s manual Refer to the online manual for other functions, information and operation procedure details. manuals.marantz.com/AV20/EU/EN/ For more information, visit www.marantz.com...
- Page 15 Trademark information The Bluetooth® word mark and logos are registered trademarks owned by the The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress Bluetooth SIG, Inc. and any use of such marks by DEI Sales, Inc. is under license. and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Other trademarks and trade names are those of their respective owners.
- Page 16 Printed in Japan 5411 12140 00AS © 2025 Masimo. All Rights Reserved.
