Summary of Contents for GN Jabra Evolve 65

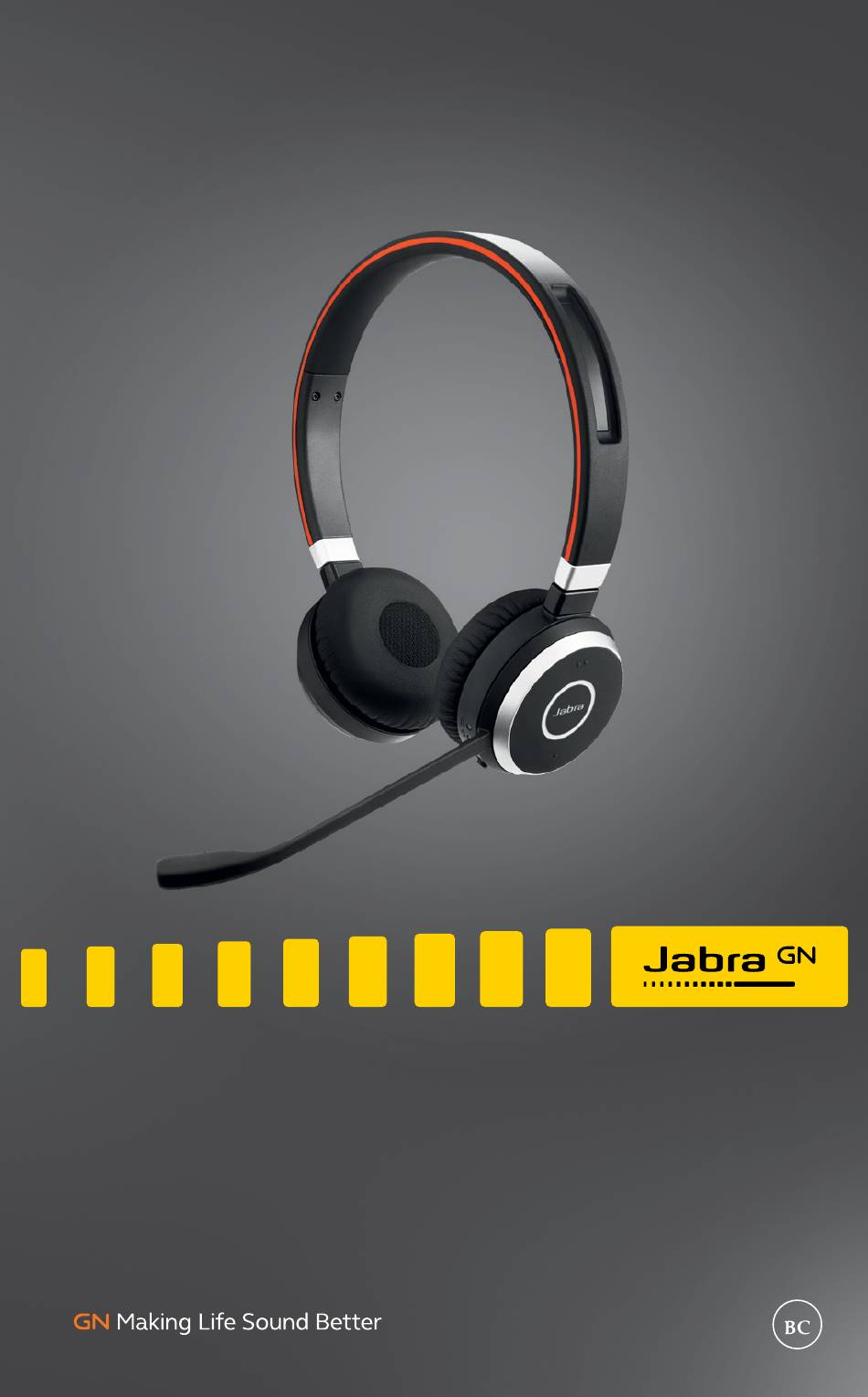

- Page 1 Jabra Evolve 65 User manual...
- Page 2 ® of GN Audio A/S . The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license. MADE IN CHINA MODEL: HSC018WA END060W Declaration of Conformity can be found on www.jabra.com/doc...
- Page 3 1. Welcome .........5 2. Jabra Evolve 65 overview ...6 2.1 Stereo variant 2.2 Mono variant 2.3 Included accessories (stereo and mono) 3. How to wear ........8 3.1 Left or right wearing style 3.2 Adjust the headband 3.3 Position the microphone 3.4 Storing the microphone...
- Page 4 7. Software and firmware .... 20 7.1 Jabra Direct 7.2 Update firmware 8. Support ........21 8.1 FAQ 8.2 How to care for your headset 9. Technical specifications ... 22 Jabra Evolve 65...
- Page 5 1. Welcome Thank you for using the Jabra Evolve 65. We hope you will enjoy it! Jabra Evolve 65 features ƒ Connects to PC via Jabra Link 380 bluetooth adapter or USB cable ƒ Connects to mobile devices via Bluetooth ƒ...
- Page 6 2. Jabra Evolve 65 overview 2.1 Stereo variant Magnetic microphone groove Adjustable headband Volume up Busylight indicator Multi-function button Volume down USB connect & Battery charging port indicator Microphone boom-arm Bluetooth On/off/connect switch indicator Jabra Evolve 65...
- Page 7 Volume up Busylight indicator Multi-function button Volume down USB connect & Battery charging port indicator Microphone boom-arm Bluetooth indicator On/off/connect switch 2.3 Included accessories (stereo and mono) Jabra Link 380 USB-A Carry pouch USB cable Bluetooth adapter Jabra Evolve 65...
-
Page 8: How To Wear
3. How to wear 3.1 Left or right wearing style The Jabra Evolve 65 can be worn on the left or right by flipping the microphone to the other side (270° limit). 270° Jabra Evolve 65... -
Page 9: Adjust The Headband
3.2 Adjust the headband Adjust the headband to find the most comfortable fit. 3.3 Position the microphone It is recommended to position the microphone close to your mouth (0.5 inches). Jabra Evolve 65... - Page 10 The microphone is bendable for personal preference. 3.4 Storing the microphone When listening to music or outdoors, the microphone can be magnetically stored in the headband groove. Jabra Evolve 65...
- Page 11 PC using a USB cable, or when using any USB charger supplied with your mobile device. The headset can still be used for calls while charging using a USB cable connected to a PC. It takes approx. 3 hours to charge the battery. Jabra Evolve 65...
-
Page 12: Sleep Mode
After 24 hours of sleep mode, the headset will power down completely. To power the headset back on, slide the On/off/connect switch from On to Off, and then back to On. Sleep mode is enabled by default, and can be disabled using Jabra Direct. Jabra Evolve 65... -
Page 13: How To Connect
5.1 Connect to PC (using Jabra Link 380) 1. Ensure the headset is switched on. 2. Plug the Jabra Link 380 dongle into a USB port on your PC. The headset and Jabra Link 380 are already pre-connected. Jabra Evolve 65... -
Page 14: Connect To Mobile Device
(using Bluetooth) 1. Wear the headset. 2. Hold (3 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will flash blue. 3. Follow the voice guided instructions to connect. Jabra Evolve 65... - Page 15 5.3 Connect to PC (using USB cable) 1. Ensure the headset is switched on. 2. Plug the headset into a USB port on your PC using the supplied USB cable. Jabra Evolve 65...
-
Page 16: How To Use
6. How to use Volume up Busylight indicator Multi-function button Volume down USB connect & Battery charging port indicator Bluetooth indicator On/off/connect switch Jabra Evolve 65... -
Page 17: Everyday Use
Simultaneously tap the busylight Volume up and Volume on/off down buttons Enable/disable Simultaneously press and Busylight hold (3 secs) the Volume up function and Volume down buttons Mute/unmute Press and hold (2 secs) the microphone Volume down button Jabra Evolve 65... -
Page 18: Multiple Call Handling
Multi-function button Press and hold Put current call on (2 secs) the hold and answer Multi-function incoming call* button Double-tap the Reject incoming call, Multi-function when on a call button *Requires Microsoft Teams headset variant Jabra Evolve 65... - Page 19 To manually turn the busylight on/off, tap both the Volume up and Volume down buttons at the same time. ENABLE/DISABLE BUSYLIGHT FUNCTION To enable/disable the busylight function, press and hold (3 secs) both the Volume up and Volume down buttons at the same time. Jabra Evolve 65...
-
Page 20: Software And Firmware
Download the latest free version from jabra.com/direct 7.2 Update firmware Firmware updates improve performance or add new functionality to Jabra devices. 1. Connect the Jabra Evolve 65 to a computer. 2. Use Jabra Direct to check for the latest firmware updates. Jabra Evolve 65... - Page 21 8.2 How to care for your headset ƒ Always store the headset with the power off and safely protected. ƒ Avoid storage at extreme temperatures (above 55°C/131°F or below -10°C/14°F). This can shorten battery life and may adversely affect the headset. Jabra Evolve 65...
- Page 22 9. Technical specifications Jabra Evolve 65 headset Specification Mono headset: 79 g Headset weight: Stereo headset: 111 g Mono headset: L 154.4 mm x W 58.6 mm x H 170.4 mm Headset dimensions: Stereo headset: L 155.5 mm x W 58.6 mm x H 170.5 mm...
- Page 23 PC connection: USB 2.0 Bluetooth version: Bluetooth range: Up to 30m (100 feet), Class 1 A2DP (v1.2), Hands free profile Bluetooth profiles: (v1.6) Simultaneous Bluetooth connections: Bluetooth audio bandwidth HD voice (wideband), A2DP Visual indicators: Multicolor LED Jabra Evolve 65...
- Page 24 Jabra Evolve 65...
