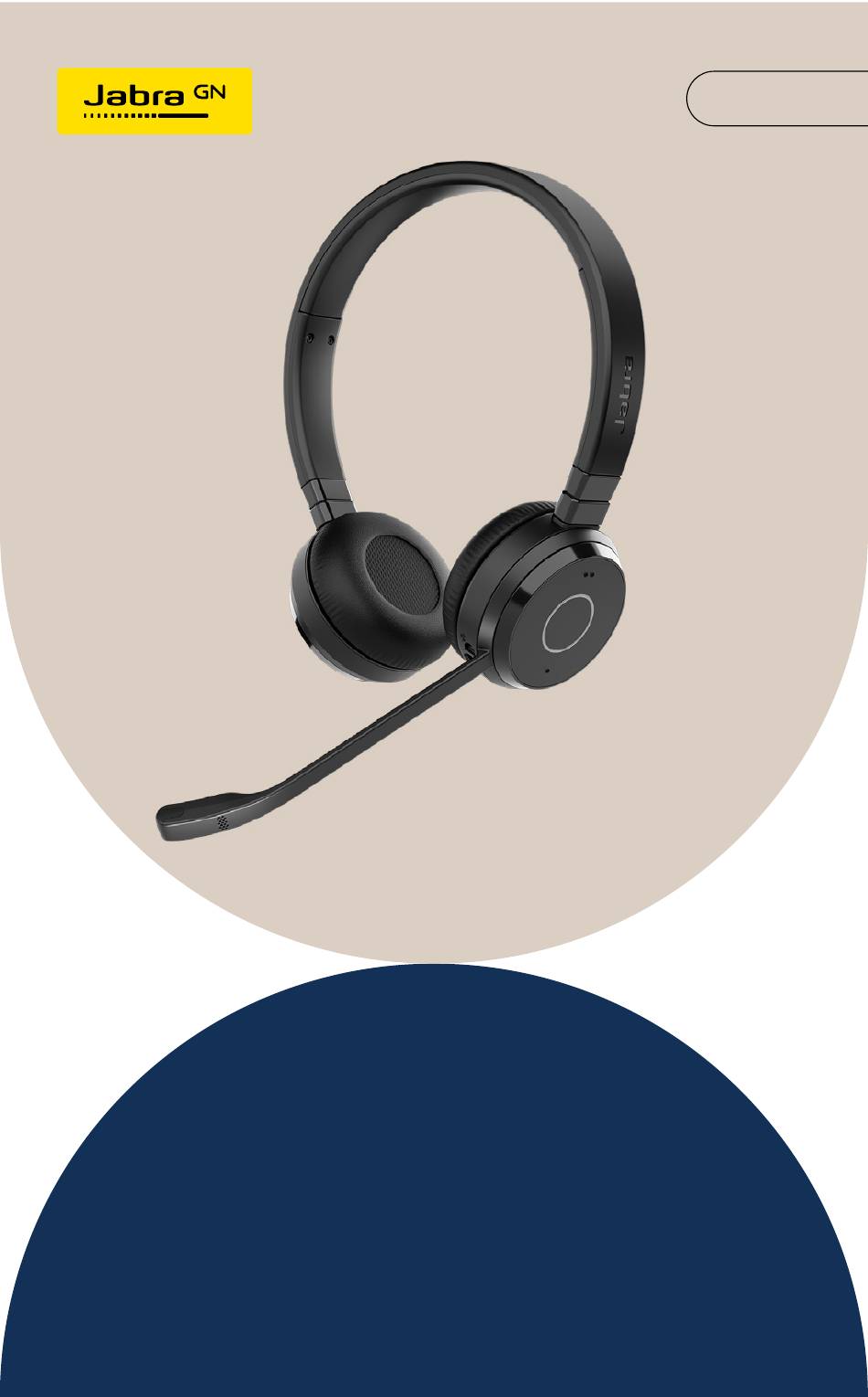

- Page 1 USER MANUAL EVOLVE Technology for life’s new rhythm...
- Page 2 GN Audio A/S . The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license. MADE IN CHINA MODEL: HSC018Wa; END085W Declaration of Conformity can be found on www.jabra.com/doc...
- Page 3 1. Welcome .........5 2. Jabra Evolve 65 TE overview ..6 2.1 Stereo variant 2.2 Mono variant 2.3 Included accessories (stereo and mono) 3. How to wear ........8 3.1 Left or right wearing style 3.2 Adjust the headband 3.3 Position the microphone 4.
- Page 4 8.2 Update firmware 8.3 Reset the headset 9. Support ........24 9.1 FAQ 9.2 How to care for your headset...
- Page 5 1. Welcome Thank you for using the Jabra Evolve 65 TE. We hope you will enjoy it! Jabra Evolve 65 TE features ƒ Connects to PC via Jabra Link 390 bluetooth adapter or USB cable ƒ Connects to mobile devices via Bluetooth ƒ...
- Page 6 2. Jabra Evolve 65 TE overview 2.1 Stereo variant Adjustable headband Volume up Busylight indicator Multi-function button Volume down USB connect & charging port Microphone boom-arm On/off/connect Status LED switch...
- Page 7 2.2 Mono variant Adjustable headband Volume up Busylight indicator Multi-function button Volume down USB connect & charging port Microphone boom-arm On/off/connect Status LED switch 2.3 Included accessories (stereo and mono) Jabra Link 390 Travel pouch USB cable USB-A Bluetooth adapter...
-
Page 8: How To Wear
3. How to wear 3.1 Left or right wearing style The Jabra Evolve 65 TE can be worn on the left or right by flipping the microphone to the other side (270° limit). To prevent damaging or breaking the microphone, do not rotate it more than 270°. - Page 9 3.2 Adjust the headband Adjust the headband to find the most comfortable fit.
- Page 10 3.3 Position the microphone It is recommended to position the microphone close to your mouth (0.5 inches). The microphone is bendable for personal preference.
- Page 11 4. How to charge the battery headset battery will charge when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device. The headset can still be used for calls while charging using a USB cable connected to a PC. It takes approx.
- Page 12 4.1 Sleep mode When the headset is powered on, but not being used, it will automatically enter sleep mode after 15 minutes to conserve battery. To manually exit sleep mode, press any button on the headset. After 24 hours of sleep mode, the headset will power down completely.
-
Page 13: How To Connect
5. How to connect 5.1 Connect to PC (using Jabra Link 390) 1. Ensure the headset is switched on. 2. Plug the Jabra Link 390 dongle into a USB port on your PC. The headset and Jabra Link 390 are already pre-connected. - Page 14 5.2 Connect to mobile device (using Bluetooth) 1. Wear the headset. 2. Hold (3 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will flash blue. 3. Follow the voice guided instructions to connect.
- Page 15 5.3 Connect to PC (using USB cable) 1. Ensure the headset is switched on. 2. Plug the headset into a USB port on your PC using the supplied USB cable.
-
Page 16: What The Leds Mean
6. What the LEDs mean BUSYLIGHT INDICATOR Busylight on Incoming call STATUS LED Connected or Incoming call Pairing Charging battery Full charged battery Power on Power off or low battery... -
Page 17: How To Use
7. How to use Volume up Busylight indicator Multi-function button Volume down USB connect & charging port Microphone boom-arm On/off/connect Status LED switch... - Page 18 7.1 Everyday use Function Action Slide the On/off/connect Headset on/off switch Press the Multi-function Answer/end call button Double press the Multi- Reject call function button Battery and Press the Multi-function connection button when not on a call status Press and hold the Enable/disable Multi-function button while Voice prompts...
- Page 19 7.2 Multiple call handling The headset can accept and handle multiple calls at the same time. Function Action End current call and Press the answer incoming call Multi-function button Press and hold Switch between held (2 secs) the call and active call* Multi-function button Press and hold...
- Page 20 7.3 Busylight The busylight indicator on the headset can be turned on to let others know that you are busy. MANUALLY TURN BUSYLIGHT ON/OFF To manually turn the busylight on/off, press both the Volume up and Volume down buttons at the same time. ENABLE/DISABLE BUSYLIGHT FUNCTION To enable/disable the busylight function, press and hold (3 secs) both the Volume up and...
- Page 21 7.4 Using the travel pouch When transporting the headset from location to location, it is recommended to use the travel pouch to prevent damaging the headset. The earcups can only be rotated in one direction. To prevent breaking the headset, do not rotate the earcups in the opposite direction.
-
Page 22: Software And Firmware
Download the latest free version from jabra.com/direct 8.2 Update firmware Firmware updates improve performance or add new functionality to Jabra devices. 1. Connect the Jabra Evolve 65 TE to a computer. 2. Use Jabra Direct to check for the latest firmware updates. - Page 23 8.3 Reset the headset Resetting the headset clears the list of paired devices and resets all settings. 1. Press and hold the Volume up button and then press the Multi-function button to reset the headset. 2. The headset will need to be re-paired to your mobile device.
- Page 24 9. Support 9.1 FAQ View the FAQs on jabra.com/support 9.2 How to care for your headset ƒ Always store the headset with the power off and safely protected. ƒ Avoid storage at extreme temperatures (above 50°C/122°F or below -10°C/14°F). This can shorten battery life and may adversely affect the headset.
